Toyota Avalon Service & Repair Manual: Brake Control Warning Light Remains ON

DESCRIPTION

The skid control ECU (brake booster with master cylinder assembly) is connected to the combination meter assembly via CAN communication.

If the skid control ECU (brake booster with master cylinder assembly) stores a DTC, the brake warning light / yellow (minor malfunction) comes on in the combination meter assembly.

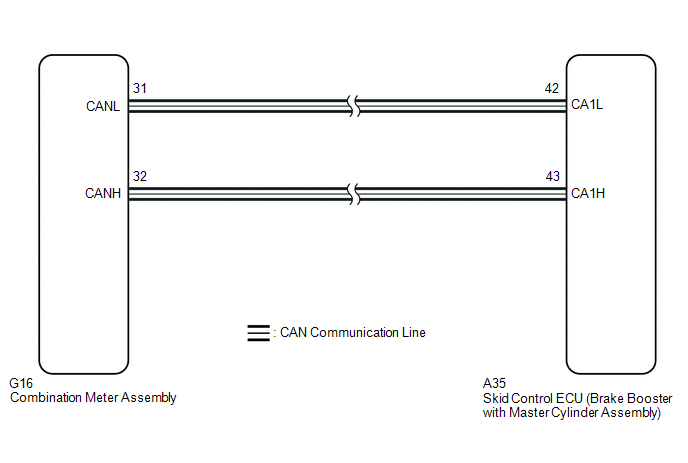

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After replacing the skid control ECU (brake booster with master cylinder assembly), perform linear solenoid valve offset learning, ABS holding solenoid valve learning, yaw rate and acceleration sensor zero point calibration and system information memorization after performing "Reset Memory".

Click here

PROCEDURE

1.

CHECK CAN COMMUNICATION SYSTEM

(a) Check if CAN communication system DTCs are output.

Click here

Result

Proceed to

DTCs are not output.

A

DTCs are output.

B

B

INSPECT CAN COMMUNICATION SYSTEM

A

2.

CHECK IF BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY CONNECTOR IS SECURELY CONNECTED

(a) Check if the skid control ECU (brake booster with master cylinder assembly) connector is securely connected.

OK:

The connector is securely connected.

NG

CONNECT CONNECTOR TO BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY CORRECTLY

OK

3.

CHECK AUXILIARY BATTERY

(a) Check the auxiliary battery voltage.

Standard Voltage:

Tester Connection

Condition

Specified Condition

Auxiliary battery

Power switch on (IG)

11 to 14 V

Auxiliary battery

Power switch on (READY)

11 to 15.5 V

NG

CHARGE OR REPLACE AUXILIARY BATTERY

OK

4.

READ VALUE USING TECHSTREAM (BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION))

(a) Select the Data List on the Techstream.

Click here

Chassis > ABS/VSC/TRAC > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

ECB Warning Light

Brake warning light / yellow (minor malfunction)

ON or OFF

ON: Warning light on

OFF: Warning light off

ECB: Electronically Controlled Brake System

Chassis > ABS/VSC/TRAC > Data List

Tester Display

ECB Warning Light

(b) Check the Techstream display condition of the brake warning light / yellow (minor malfunction).

Result

Proceed to

ON is displayed.

A

OFF is displayed.

B

A

REPLACE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

B

INSPECT METER / GAUGE SYSTEM
