Toyota Avalon Service & Repair Manual: Parts Location

PARTS LOCATION

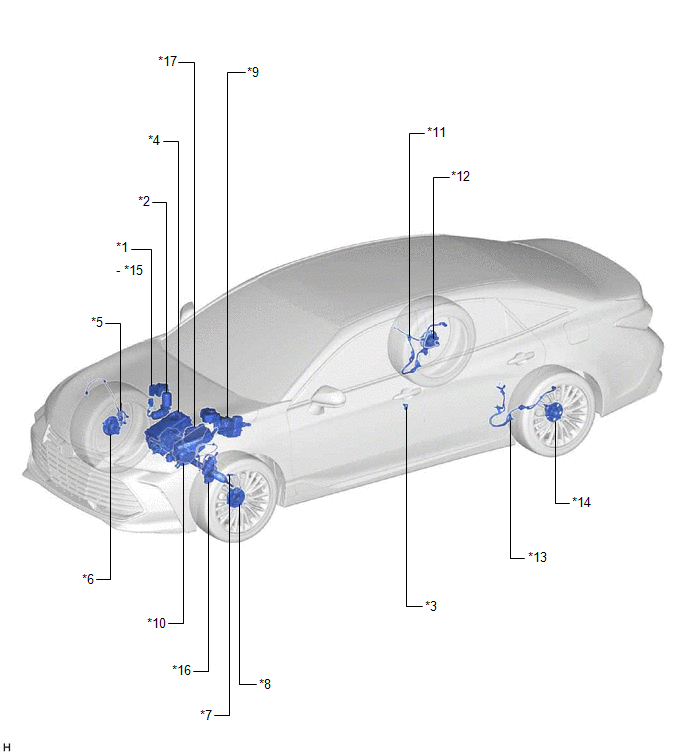

ILLUSTRATION

*1

BRAKE ACTUATOR ASSEMBLY

*2

BRAKE BOOSTER PUMP ASSEMBLY

*3

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*4

INVERTER WITH CONVERTER ASSEMBLY

*5

FRONT SPEED SENSOR RH

*6

FRONT AXLE HUB SUB-ASSEMBLY RH

- FRONT SPEED SENSOR ROTOR RH

*7

FRONT SPEED SENSOR LH

*8

FRONT AXLE HUB SUB-ASSEMBLY LH

- FRONT SPEED SENSOR ROTOR LH

*9

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

- BRAKE ACTUATOR

- SKID CONTROL ECU

- BRAKE FLUID LEVEL WARNING SWITCH

*10

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- ABS MTR NO. 1 FUSE

- ABS MTR NO. 2 FUSE

- ABS MTR NO. 3 FUSE

- ABS-MAIN NO. 1 FUSE

- ABS NO. 2 FUSE

- ABS NO. 3 FUSE

*11

NO. 1 PARKING BRAKE WIRE ASSEMBLY

- SKID CONTROL SENSOR WIRE RH

*12

REAR AXLE HUB AND BEARING ASSEMBLY RH

- REAR SPEED SENSOR ROTOR RH

- REAR SPEED SENSOR RH

*13

NO. 2 PARKING BRAKE WIRE ASSEMBLY

- SKID CONTROL SENSOR WIRE LH

*14

REAR AXLE HUB AND BEARING ASSEMBLY LH

- REAR SPEED SENSOR ROTOR LH

- REAR SPEED SENSOR LH

*15

PARKING BRAKE ECU

*16

RACK AND PINION POWER STEERING GEAR ASSEMBLY

- POWER STEERING ECU

*17

ECM

-

-

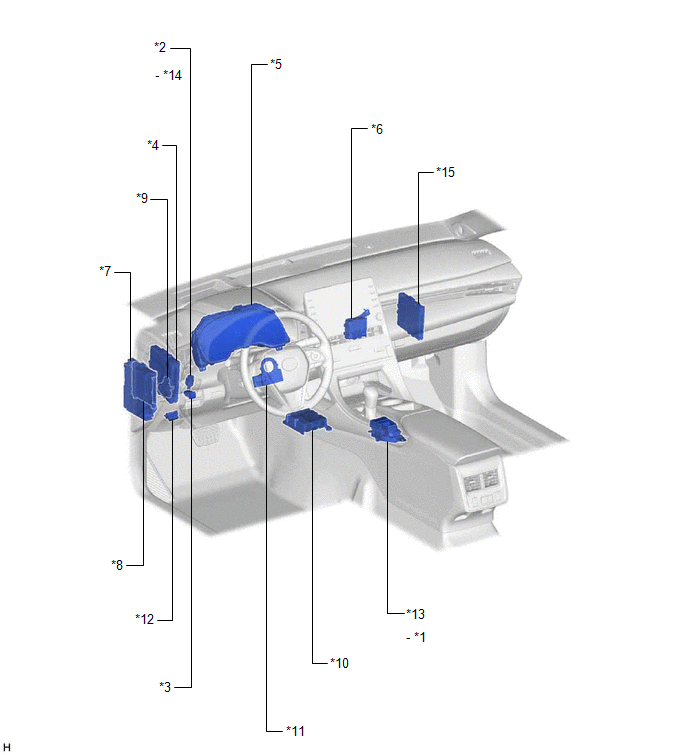

ILLUSTRATION

*1

BRAKE HOLD SWITCH

*2

STOP LIGHT SWITCH ASSEMBLY

*3

VSC OFF SWITCH

*4

HYBRID VEHICLE CONTROL ECU

*5

COMBINATION METER ASSEMBLY

- ABS WARNING LIGHT

- BRAKE WARNING LIGHT / RED (MALFUNCTION)

- BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION)

- MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF)

- VSC OFF INDICATOR LIGHT

- SLIP INDICATOR LIGHT

- BRAKE HOLD STANDBY INDICATOR LIGHT

- BRAKE HOLD OPERATED INDICATOR LIGHT

- METER BUZZER

*6

VEHICLE APPROACHING SPEAKER CONTROLLER

*7

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 2 FUSE

- ECU-IG2 NO. 3 FUSE

- ECU-DCC NO. 1 FUSE

- A/BAG-IG2 FUSE

- STOP FUSE

*8

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*9

BRAKE PEDAL STROKE SENSOR ASSEMBLY

*10

AIRBAG ECU ASSEMBLY

- YAW RATE AND ACCELERATION SENSOR

*11

STEERING ANGLE SENSOR

*12

DLC3

*13

ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

*14

STOP LIGHT CONTROL RELAY

*15

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

-

-
