COMPONENTS

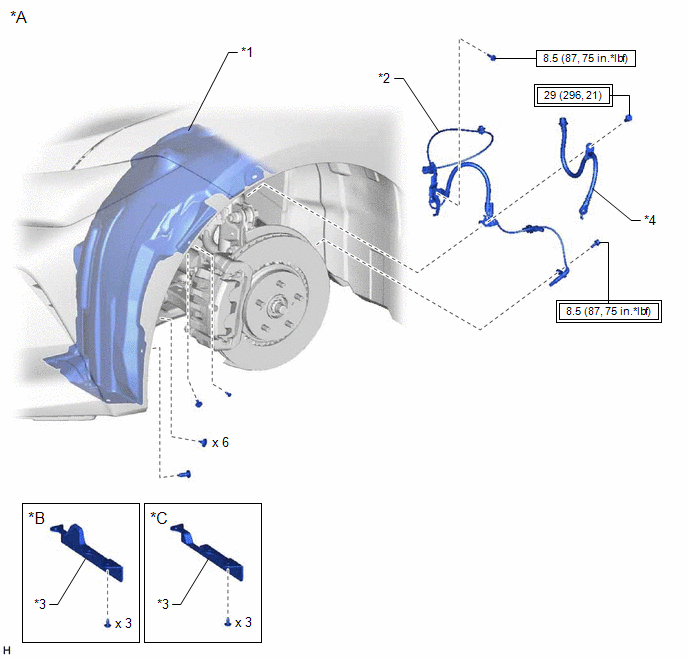

ILLUSTRATION

*A

w/o AVS

*B

for A25A-FXS

*C

for 2GR-FKS

-

-

*1

FRONT FENDER LINER

*2

FRONT SPEED SENSOR

*3

FRONT WHEEL OPENING EXTENSION PAD

*4

FRONT FLEXIBLE HOSE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

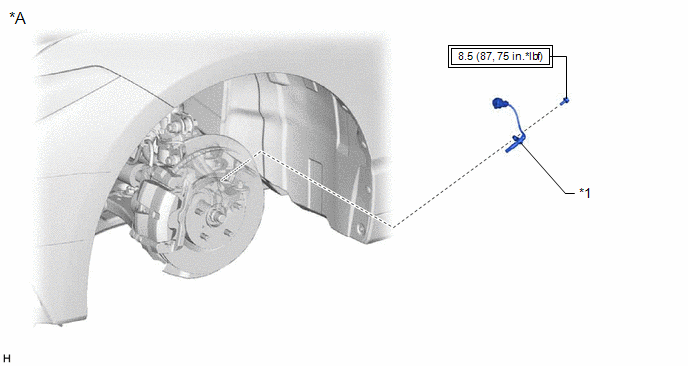

ILLUSTRATION

*A

w/ AVS

-

-

*1

FRONT SPEED SENSOR

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
