INSPECTION

PROCEDURE

1. INSPECT VSC OFF SWITCH

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

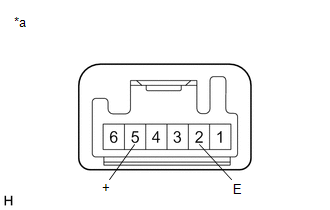

*a

Component without harness connected

(VSC OFF switch)

(b) Disconnect the VSC OFF switch connector.

(c) Check both the connector case and the terminal for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

5 (+) - 2 (E)

Switch pushed

Below 1 Ω

5 (+) - 2 (E)

Switch not pushed

10 kΩ or higher

HINT:

If the result is not as specified, replace the VSC OFF switch.
