Toyota Avalon Owners Manual: Customization

Customizable features

Your vehicle includes a variety of electronic features that can be personalized to suit your preferences. The settings of these features can be changed using the multi-information display, on the audio system screen, or at your Toyota dealer.

Customizing vehicle features

When customizing vehicle features, ensure that the vehicle is parked in a safe place with the shift lever in P and the parking brake set.

■ Changing on the audio system screen

  1. Press the "MENU" button.
  2. Select "Setup" on the "Menu" screen.
  3. Select "General" or "Vehicle" on the "Setup" screen.

Various setting can be changed. Refer to the list of settings that can be changed for details.

Customizable features

Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details.

  1. Settings that can be changed on the audio system screen
  2. Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, - = Not available

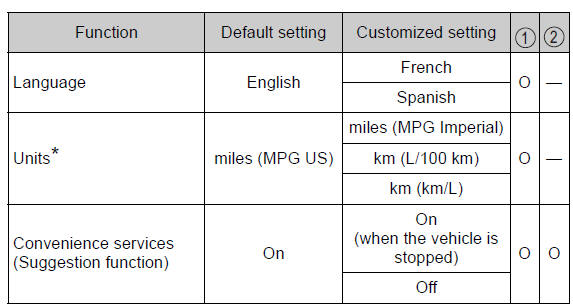

■ Gauges, meters and multi-information display

Customization

*: The default setting varies according to country.

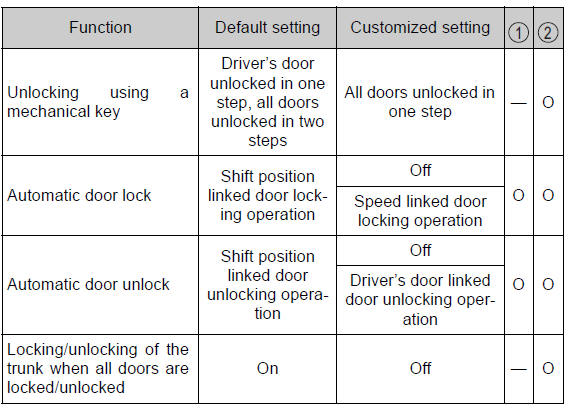

■ Door lock

Customization

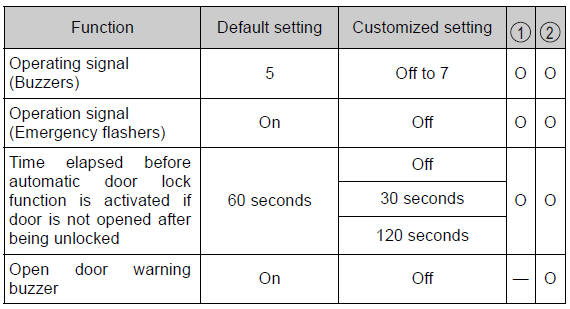

■ Smart key system and wireless remote control

Customization

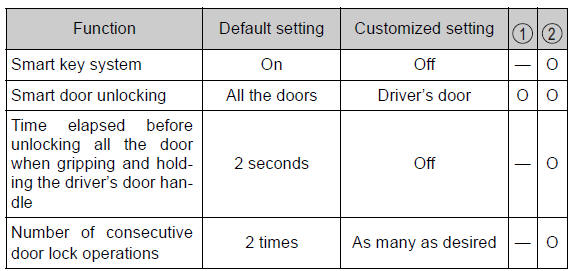

■ Smart key system

Customization

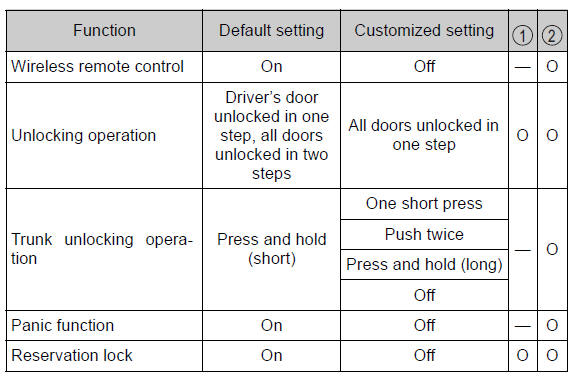

■ Wireless remote control

Customization

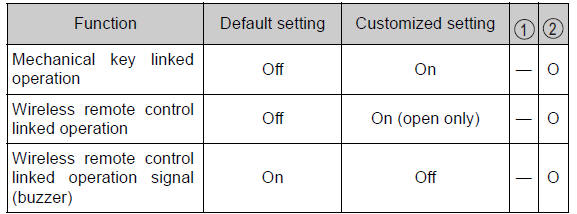

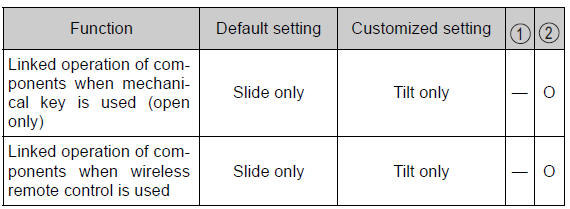

■ Power windows and moon roof*

Customization

*: If equipped

■ Moon roof*

Customization

*: If equipped

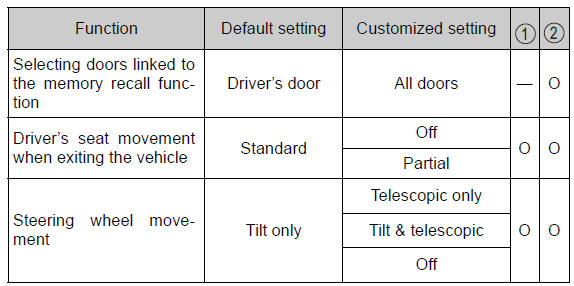

■ Driving position memory*

Customization

*: If equipped

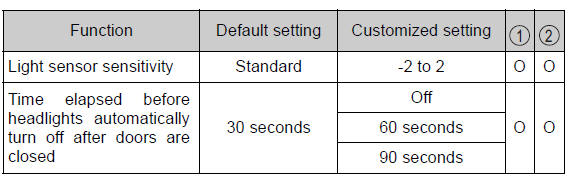

■ Automatic light control system

Customization

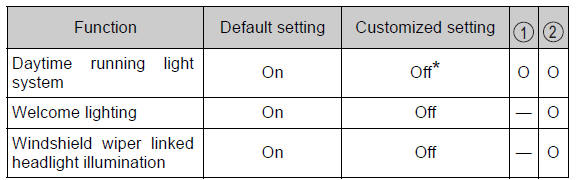

■ Lights

Customization

*: Except for Canada

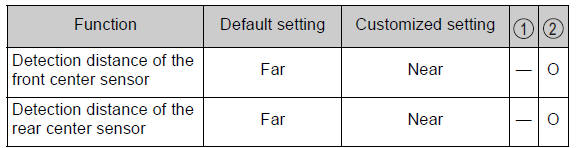

■ Intuitive parking assist*

Customization

*: If equipped

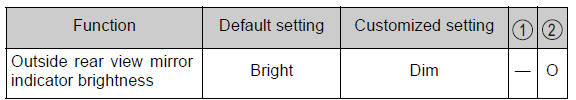

■ BSM (Blind Spot Monitor)

Customization

■ RCTA (Rear Cross Traffic Alert)

Customization

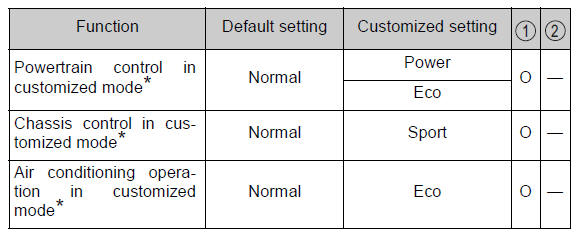

■ Driving mode select switches

Customization

*: If equipped

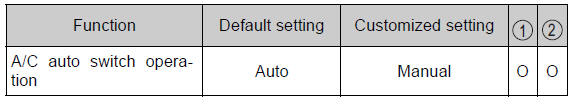

■ Automatic air conditioning system

Customization

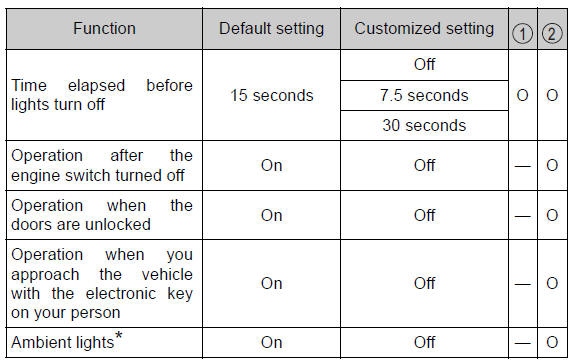

■ Illumination

Customization

*: If equipped

WARNING

■During customization As the engine needs to be running during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.



NOTICE

■During customization To prevent battery discharge, ensure that the engine is running while customizing features.

Items to initialize

The following items must be initialized for normal system operation after such cases as the battery being reconnected, or maintenance being performed on the vehicle:



Item

When to initialize

Message indicating maintenance is required
  • After the maintenance is performed
Tire pressure warning system
  • When the tire inflation pressure is changed such as when changing traveling speed or load weight
  • When the tire inflation pressure is changed such as when the tire size is changed
  • When rotating the tires
  • After performing the transmitter ID code registration procedure
Intelligent Clearance Sonar (ICS) (If equipped)
  • After reconnecting or changing the battery
    Tire information
