ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

NOTICE:

If using a dropper to adjust the fluid amount, make sure that the dropper has not been used with mineral oils, water or deteriorated brake fluid. Sealed areas may deteriorate and lead to fluid leaks, or the fluid may deteriorate and lead to decreased efficiency.

HINT:

If the brake fluid level is lower than the MIN line, inspect for brake fluid leaks and brake pad wear. After repair or replacement, adjust the brake fluid level in the reservoir as specified below.

PROCEDURE

1. INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Using the Techstream)

(a) Connect the Techstream to the DLC3 with the power switch off.

(b) Check that the shift lever is in P and the parking brake is applied, and turn the power switch on (IG).

(c) Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB (Electronically Controlled Brake system) Utility / Zero Down.

Chassis > ABS/VSC/TRAC > Utility

Tester Display

ECB Utility

(d) Select "Next" and wait for 10 seconds.

(e) After the booster pump has stopped, check that the brake fluid level is between the MAX and MIN lines. If necessary, add brake fluid to the reservoir until the brake fluid level is at the MAX line.

Brake Fluid:

SAE J1703 or FMVSS No. 116 DOT3

SAE J1704 or FMVSS No. 116 DOT4

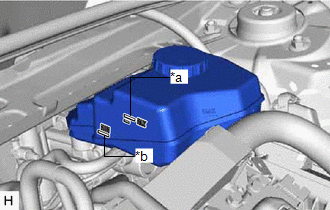

*a

MAX Line

*b

MIN Line

2. INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Not Using the Techstream)

(a) Check that the fluid level is above the MIN line with the power switch on (IG). Adjust the brake fluid level of the reservoir so that it is between the MIN line and fluid level support line.

Brake Fluid:

SAE J1703 or FMVSS No. 116 DOT3

SAE J1704 or FMVSS No. 116 DOT4

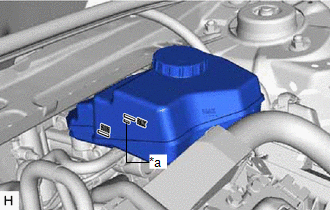

*a

Fluid Level Support Line
