Toyota Avalon Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

*1

BRAKE LINE

*2

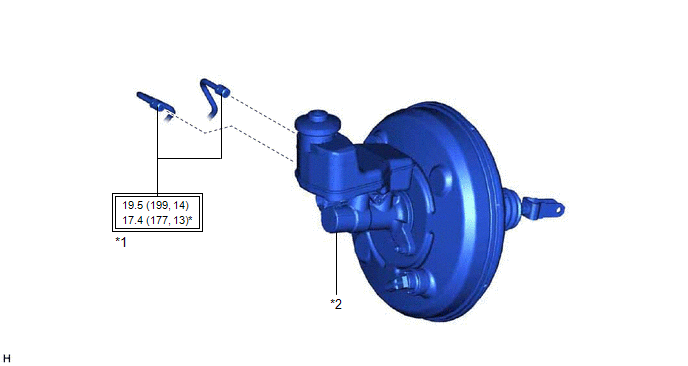

BRAKE MASTER CYLINDER SUB-ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

ILLUSTRATION

*1

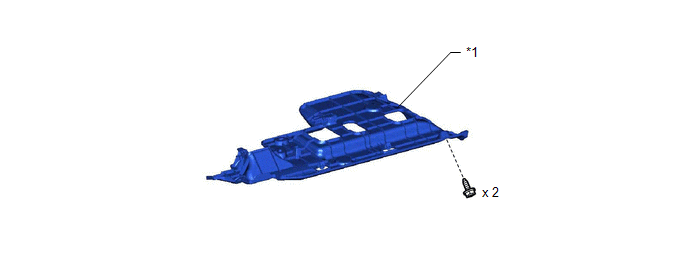

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

ILLUSTRATION

*A

w/ Rubber Pad

*B

w/ Aluminum Pad

*1

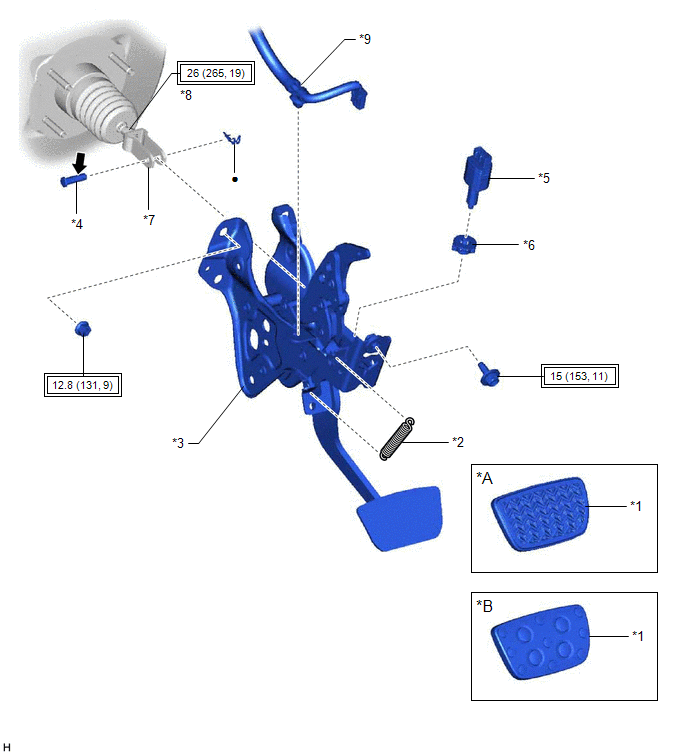

BRAKE PEDAL PAD

*2

BRAKE PEDAL RETURN SPRING

*3

BRAKE PEDAL SUPPORT ASSEMBLY

*4

PUSH ROD PIN

*5

STOP LIGHT SWITCH ASSEMBLY

*6

STOP LIGHT SWITCH MOUNTING ADJUSTER

*7

BRAKE MASTER CYLINDER PUSH ROD CLEVIS

*8

LOCK NUT

*9

WIRE HARNESS

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

    Adjustment

    Installation
