Toyota Avalon Service & Repair Manual: Parts Location

PARTS LOCATION

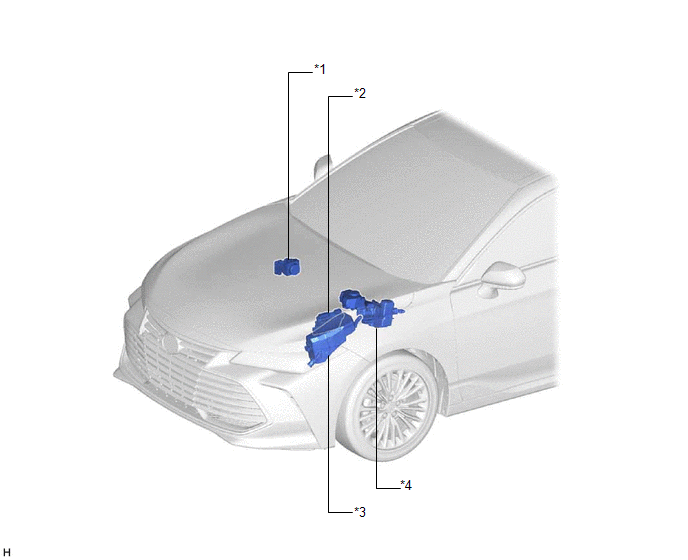

ILLUSTRATION

*1

PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY)

*2

ECM

*3

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- EPB NO. 1 FUSE

*4

SKID CONTROL ECU ASSEMBLY (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

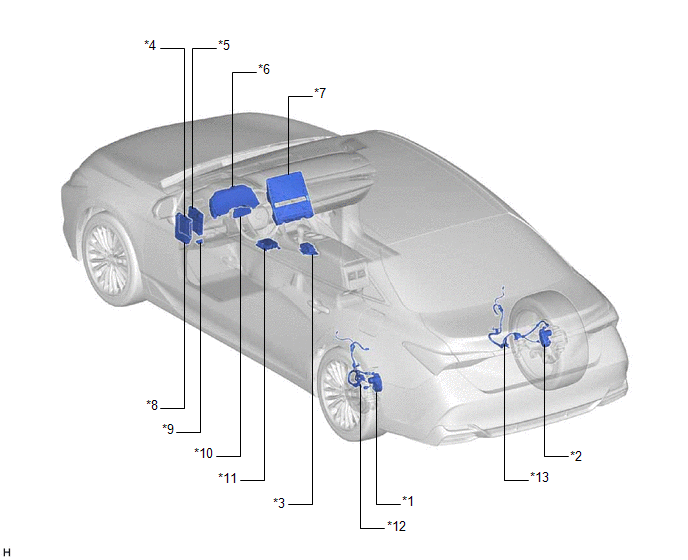

ILLUSTRATION

*1

PARKING BRAKE ACTUATOR ASSEMBLY LH

*2

PARKING BRAKE ACTUATOR ASSEMBLY RH

*3

ELECTRIC PARKING BRAKE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

HYBRID VEHICLE CONTROL ECU

*6

COMBINATION METER ASSEMBLY

*7

RADIO RECEIVER ASSEMBLY

*8

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE

- ECU-B NO. 2 FUSE

*9

DLC3

*10

AIR CONDITIONING AMPLIFIER ASSEMBLY

*11

DECELERATION SENSOR (AIRBAG ECU ASSEMBLY)

*12

NO. 2 PARKING BRAKE WIRE ASSEMBLY

*13

NO. 1 PARKING BRAKE WIRE ASSEMBLY

-

-
