Toyota Avalon Service & Repair Manual: System Diagram

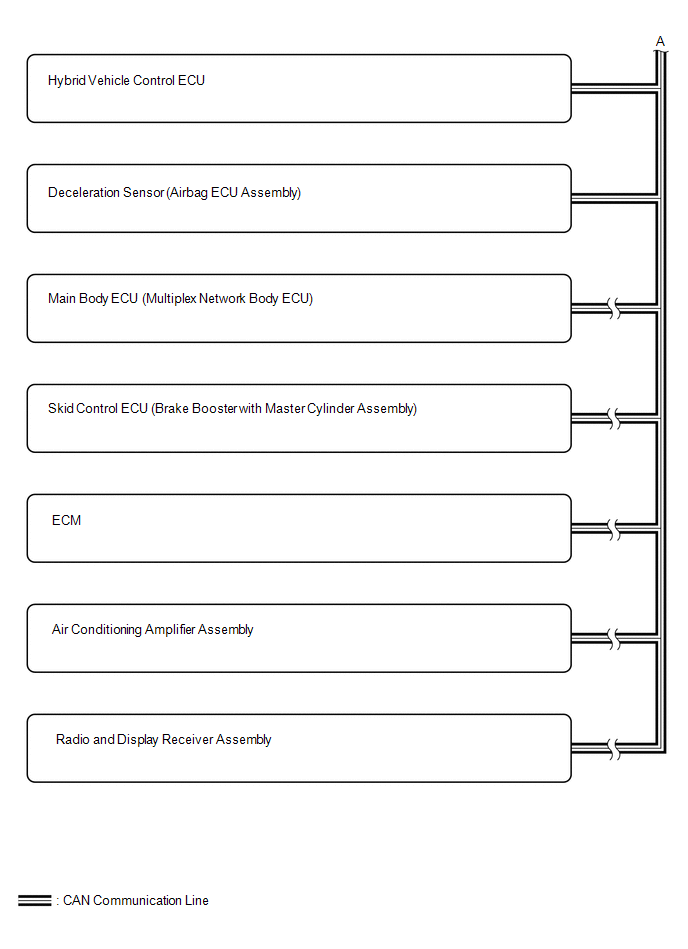

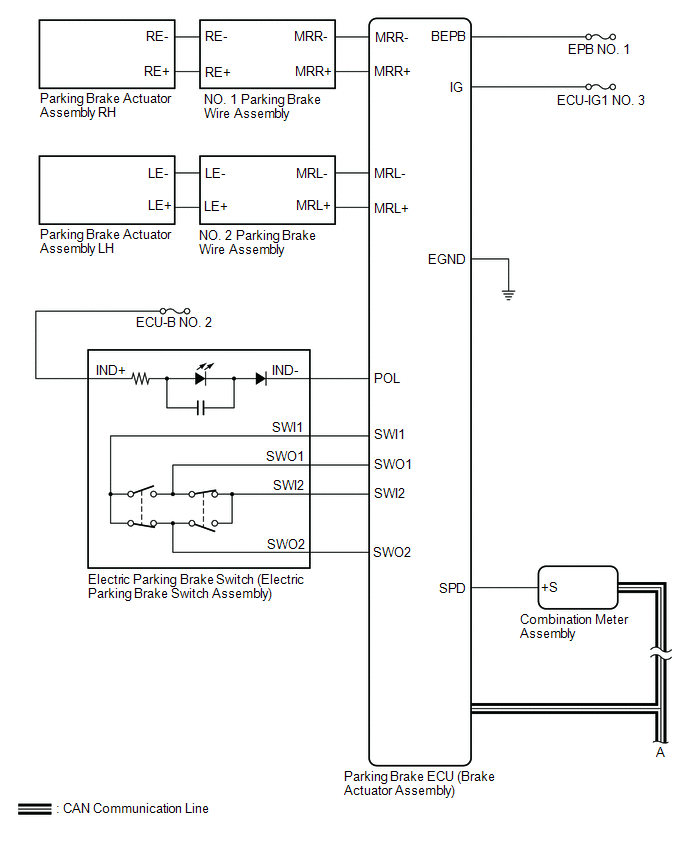

SYSTEM DIAGRAM

    Problem Symptoms Table

    Terminals Of Ecu

    See More:

    Toyota Avalon Service & Repair Manual > Telematics System(for Gasoline Model): Remote Engine Starter does not Operate
    WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE: Before replacing the DCM (telematics transceiver), refer to Registration. Click here PROCEDURE 1. CHECK SMART KEY SYSTEM (for Start Function) (a) Check that the engine can be started by pressing the engine switch. Result Proceed to Engine can be started ...
