Toyota Avalon Service & Repair Manual: Identification Information

Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION AND SERIAL NUMBERS

VEHICLE IDENTIFICATION NUMBER

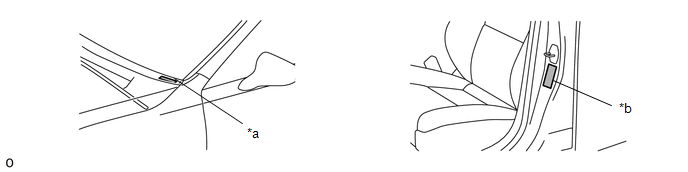

(a) The vehicle identification number is stamped on the vehicle body and on the certification label or name label as shown in the illustration.

*a

Vehicle Identification Number

*b

Certification Label or Name Label

ENGINE SERIAL NUMBER AND TRANSAXLE CODE

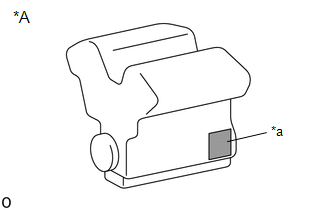

(a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

*A

2GR-FKS

*a

Engine Serial Number

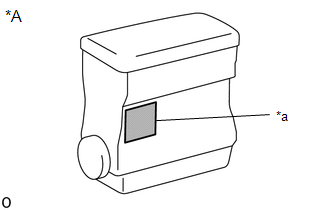

*A

A25A-FXS

*a

Engine Serial Number

(b) The transaxle code, transaxle type and transaxle serial number are stamped on the transaxle case as shown in the illustration.

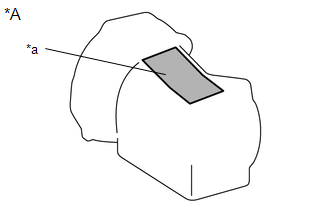

*A

UA80E

*a

Transaxle Serial Number

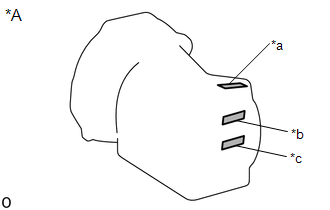

*A

P710

*a

Transaxle Serial Number

*b

Transaxle Code

*c

Transaxle Type
