ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

5. INSPECT HYBRID TRANSAXLE FLUID

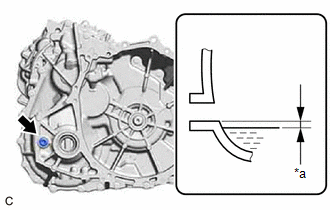

(a) Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the hybrid vehicle transaxle assembly.

*a

0 to 10 mm (0 to 0.394 in.)

(b) Check that the hybrid transaxle fluid level is between 0 to 10 mm (0 to 0.394 in.) from the bottom lip of the filler plug opening.

NOTICE:

  • When inspecting the hybrid transaxle fluid, make sure that the vehicle is level.
  • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
  • Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the hybrid vehicle transaxle assembly.
  • If the hybrid transaxle fluid was replaced or if hybrid transaxle fluid was added, make sure to recheck the hybrid transaxle fluid level after driving the vehicle.

(c) Check for leaks if the hybrid transaxle fluid level is low. (If there are no hybrid transaxle fluid leaks but the hybrid transaxle fluid level is low, add hybrid transaxle fluid.)

Click here

(d) Using a 10 mm hexagon socket wrench, install the filler plug and a new gasket to the hybrid vehicle transaxle assembly.

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

6. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK

7. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

8. INSTALL NO. 1 ENGINE UNDER COVER

Click here

9. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here

10. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here

    Components

    Replacement
