Toyota Avalon Service & Repair Manual: Components

COMPONENTS

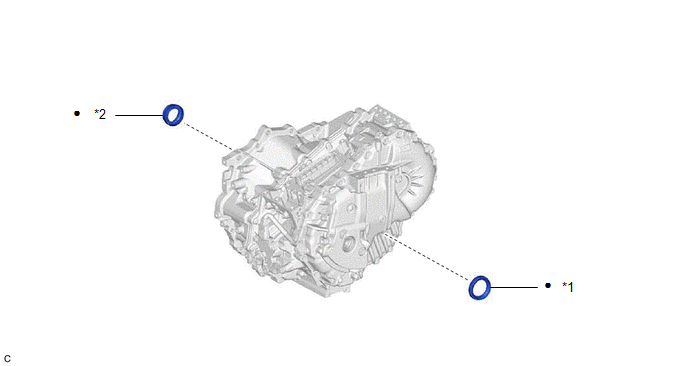

ILLUSTRATION

*1

FRONT DRIVE SHAFT OIL SEAL LH

*2

FRONT DRIVE SHAFT OIL SEAL RH

Non-reusable part

-

-

    Hybrid Transaxle Oil Seal

    Replacement
