REASSEMBLY

PROCEDURE

1. INSTALL LOWER POSITION INDICATOR HOUSING

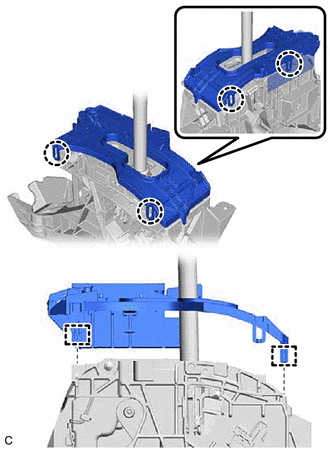

(a) Engage the 4 claws and 2 guides to install the lower position indicator housing to the shift lock control unit assembly.

NOTICE:

Do not damage the lower position indicator housing.

2. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

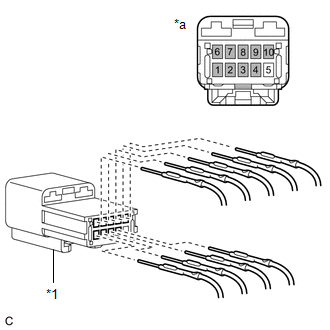

(a) Install each terminal to the connector housing as shown in the illustration.

*1

Connector Housing

*a

Rear vew of wire harness connector

Shift Position Indicator Terminal

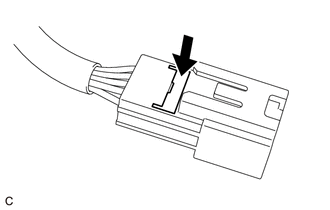

(b) Lock the secondary lock.

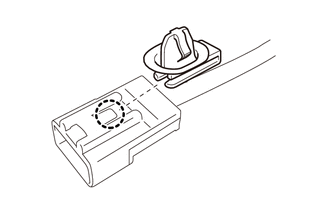

(c) Engage the claw to install the clamp to the indicator light wire sub-assembly.

(d) Connect the indicator light wire sub-assembly connector.

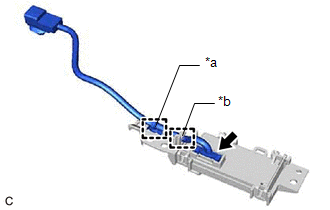

*a

Guide

*b

Clamp

(e) Engage the clamp and guide to install the indicator light wire sub-assembly to the shift position indicator.

3. INSTALL SHIFT POSITION INDICATOR

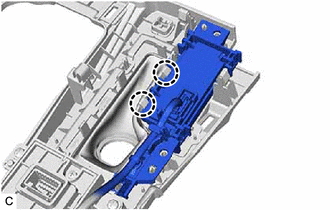

(a) Engage the 2 claws to install the shift position indicator to the rear upper console panel sub-assembly.

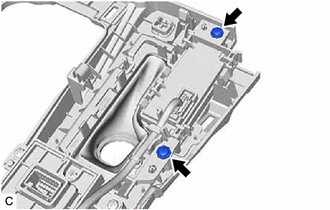

(b) Install the 2 screws.

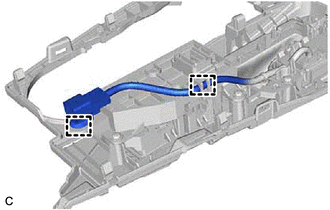

(c) Engage the 2 clamps to connect the wire harness.
