Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Drivetrain / P710 Hybrid Transmission / Transaxle / Shift Paddle Switch / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during shift paddle switch (transmission shift switch assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed
*: When performing learning using the Techstream. Click here
Auxiliary battery terminal is disconnected/reconnected	Perform steering sensor zero point calibration	Lane departure alert system (w/ Steering Control)
		Pre-collision system
		Intelligent clearance sonar system*
		Lighting system (w/ AFS)(EXT)
	Memorize steering angle neutral point	Parking assist monitor system
	Memorize steering angle neutral point	Panoramic view monitor system

NOTICE:

Do not remove/install the spiral cable with sensor sub-assembly with the battery connected and the power switch on (IG).
Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the power switch on (IG).
Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

PROCEDURE

1. REMOVE STEERING WHEEL ASSEMBLY

Click here

2. REMOVE STEERING PAD SWITCH ASSEMBLY

Click here

3. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

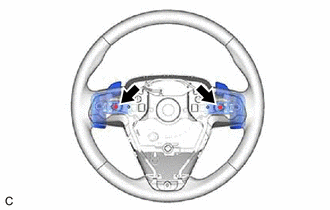

(a) Remove the 2 screws.

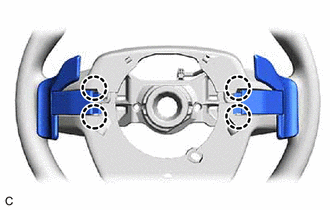

(b) Disengage the 4 claws.

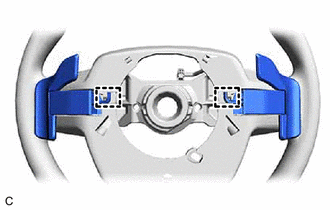

(c) Disengage the 2 clamps to disconnect the shift paddle switch (transmission shift switch assemby) from the steering wheel assembly.

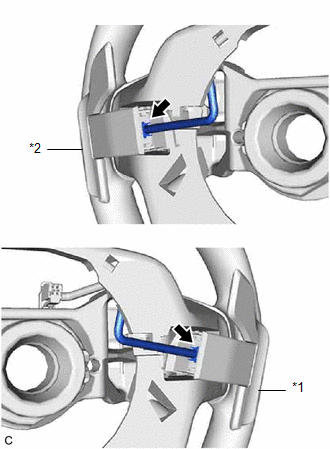

(d) Disconnect the No. 1 transmission shift switch assembly connector and No. 2 transmission shift switch assembly connector to remove the No. 1 transmission shift switch assembly and No. 2 transmission shift switch assembly from the No. 1 switch wire.

*1	No.1 Transmission Shift Switch Assembly
*2	No.2 Transmission Shift Switch Assembly

4. REMOVE NO. 1 SWITCH WIRE

HINT:

Perform this procedure only when replacement of the No. 1 switch wire is necessary.

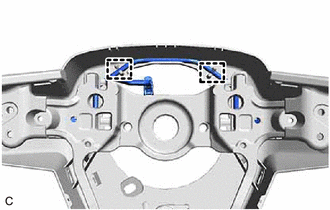

(a) Disengage the 2 guides and remove the No. 1 switch wire from the steering wheel assembly.
