Components

COMPONENTS

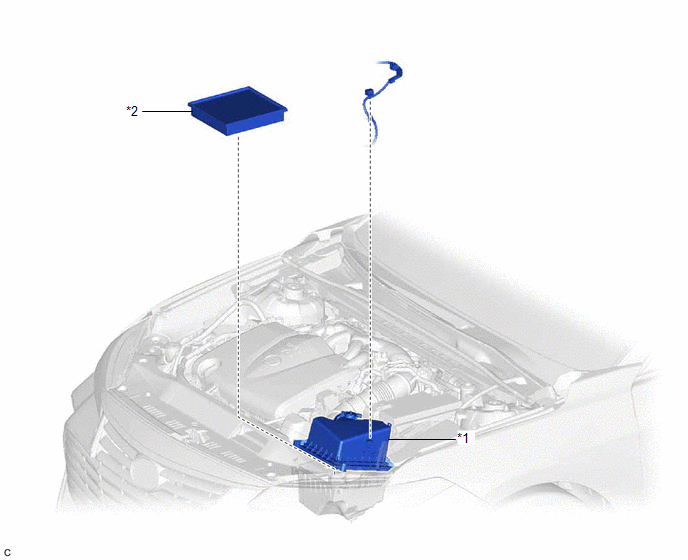

ILLUSTRATION

*1

AIR CLEANER CAP SUB-ASSEMBLY

*2

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Check that the inside of the air cleaner case sub-assembly does not have dirt or deposits, and clean them away if they are present.

(b) Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.

2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

(a) Engage the 2 guides to install the air cleaner cap sub-assembly to the air cleaner case sub-assembly.

(b) Engage the 2 air cleaner cap clamps.

(c) Engage the 2 wire harness clamps.

Removal

REMOVAL

PROCEDURE

1. SEPARATE AIR CLEANER CAP SUB-ASSEMBLY

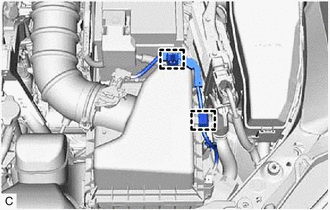

(a) Disengage the 2 wire harness clamps.

(b) Disengage the 2 air cleaner cap clamps.

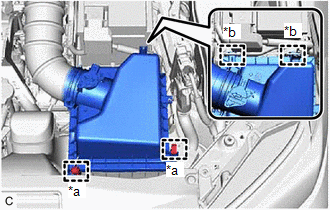

*a

Air Cleaner Cap Clamp

*b

Guide

(c) Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.

2. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

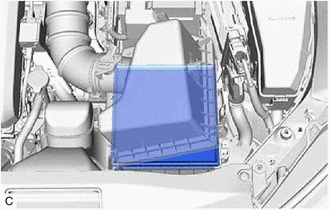

(a) Remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.

NOTICE:

Do not allow foreign matter to enter the air cleaner cap sub-assembly and air cleaner case sub-assembly.

3. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

HINT:

This procedure is only performed when the air cleaner filter element sub-assembly will be reused.

(a) Check whether the air cleaner filter element sub-assembly is dirty or clogged.

(b) If the air cleaner filter element sub-assembly is dirty or has foreign matter adhered to it, clean the air cleaner filter element sub-assembly with compressed air.

NOTICE:

When cleaning the air cleaner filter element sub-assembly, blow the compressed air from the intake downstream side (from the air cleaner cap sub-assembly side).

HINT:

If the air cleaner filter element sub-assembly is still extremely dirty after cleaning it, replace the air cleaner filter element sub-assembly with a new one.

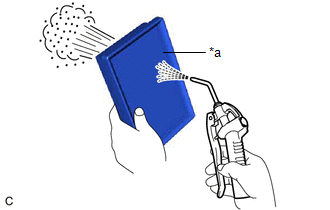

*a

Air Cleaner Filter Element Sub-assembly Intake Downstream Side (Air Cleaner Cap Sub-assembly Side)
