HYDRAULIC TEST

PERFORM HYDRAULIC TEST

CAUTION:

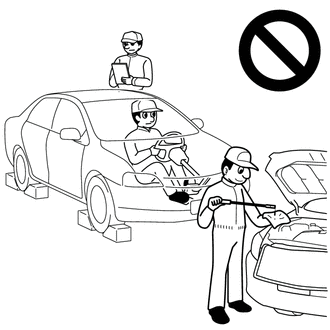

  • Do not perform a stall test if there are any people or objects near the vehicle.
  • The vehicle could begin moving suddenly, resulting in a serious accident.

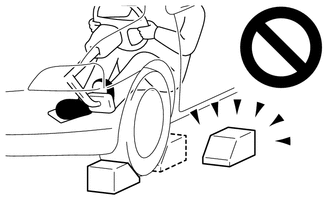

  • Do not perform a stall test if any wheel chocks are out of position.
  • The vehicle could begin moving suddenly, resulting in a serious accident.

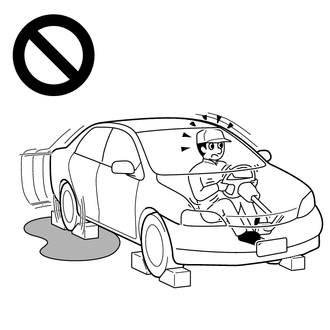

  • Do not perform the stall test on a slippery or low-friction surface that could allow the tires to spin.
  • The vehicle could begin moving suddenly, resulting in a serious accident.

(a) Measure the line pressure.

NOTICE:

  • Perform this test with the ATF (Automatic Transaxle Fluid) at the normal operating temperature: 50 to 80°C (122 to 176°F)
  • Be careful to prevent the SST hose from contacting the exhaust pipe.
  • This check must be conducted after checking and confirming that the engine is normal.
  • Perform this test with the air conditioning off.
  • Do not perform the stall test for longer than 5 seconds.
  • When performing the stall speed test repeatedly, wait for 15 seconds or more between tests.
  • The installation position of SST is different for the D position and R position line pressure tests.
  • Perform this test with the AUTO function (shift-linked function) of the electronic parking brake system off.

(1) Warm up the ATF.

(2) Lift the vehicle.

(3) Remove the engine under cover.

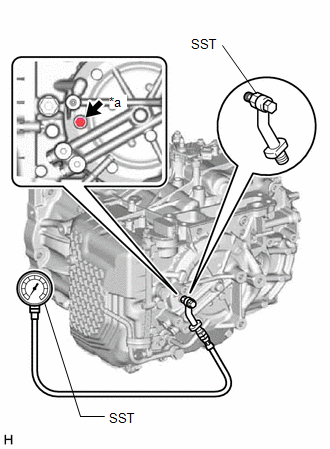

(4) Remove the test plug A on the front side of the transaxle case and install SST.

SST: 09993-19015

09993-00010

09993-00040

*a

Test Plug A

(5) Lower the vehicle.

(6) Fully apply the parking brake and chock all 4 wheels.

HINT:

When the parking brake indicator (red) is illuminated after the electric parking brake switch (electric parking brake switch assembly) has been pulled to the lock side, the maximum amount of braking force is applied if the electric parking brake switch (electric parking brake switch assembly) is pulled to the lock side one more time.

(7) Start the engine and check the idle speed.

(8) Keep your left foot firmly on the brake pedal and move the shift lever to D.

(9) Depress the accelerator pedal as much as possible with your right foot. Quickly read the highest line pressure reading when the engine speed reaches stall speed.

Specified Line Pressure:

Condition

D Position

Stall test

1300 to 1600 kPa

(13.3 to 16.3 kgf/cm2, 189 to 232 psi)

(10) Turn the engine switch off.

(11) Remove SST and install the test plug A.

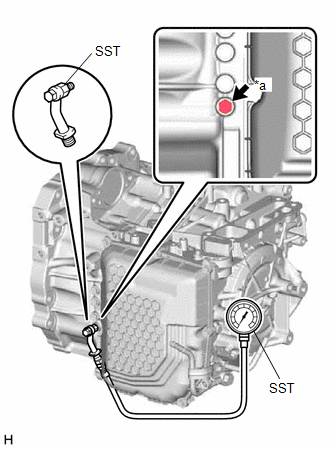

(12) Remove the test plug B on the left side of the transaxle case and install SST.

SST: 09993-19015

09993-00010

09993-00040

*a

Test Plug B

(13) Start the engine and check the idle speed.

(14) Keep your left foot firmly on the brake pedal and move the shift lever to R.

(15) Depress the accelerator pedal as much as possible with your right foot. Quickly read the highest line pressure reading when the engine speed reaches stall speed.

Specified Line Pressure:

Condition

R Position

Stall test

1700 to 2100 kPa

(17.3 to 21.4 kgf/cm2, 247 to 305 psi)

(16) Turn the engine switch off.

(17) Remove SST and install the test plug B.

(18) Clear the DTCs.

Click here

Evaluation

Problem

Possible Cause

Measured values at all positions are higher than specified

  • Solenoid (SLT) valve defective
  • Regulator valve defective

Measured values at all positions are lower than specified

  • Solenoid (SLT) valve defective
  • Regulator valve defective
  • Oil pump defective

Pressure is low when shift lever is in D only

  • D position circuit fluid leak
  • No. 1 clutch (C1) defective
  • No. 2 brake (B2) defective

Pressure is low when shift lever is in R only

  • R position circuit fluid leak
  • No. 3 clutch (C3) defective
  • No. 2 brake (B2) defective
    How To Proceed With Troubleshooting
