Toyota Avalon Service & Repair Manual: Pressure Control Solenoid "D" Actuator Stuck Off (P27137F)

DESCRIPTION

Based on signals from the accelerator position sensor and transmission revolution sensors (NT and NC), the ECM controls the solenoid (SLT) valve using a predetermined current. As a result, the line pressure is adjusted to a pressure that is appropriate for the throttle angle and engine output. Based on the rotation speed signals from the transmission revolution sensors (NT and NC), the ECM calculates the heat level of the friction material, and detects clutch slippage, etc.

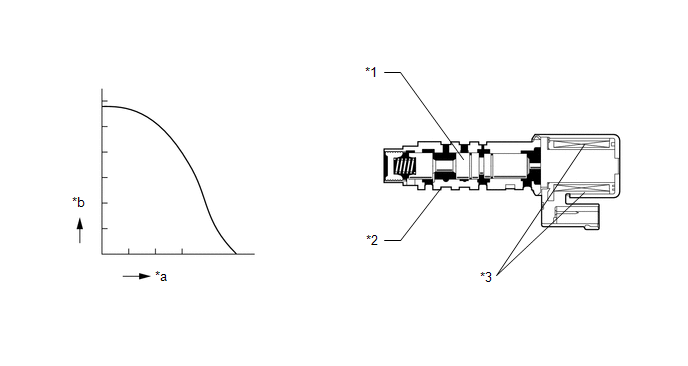

*1

Spool Valve

*2

Sleeve

*3

Solenoid Coil

-

-

*a

Current

*b

Hydraulic Pressure

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P27137F

Pressure Control Solenoid "D" Actuator Stuck Off

All of the following conditions are met (2-trip detection logic):

  • Engine coolant temperature is 40°C (104°F) or higher.
  • ATF temperature is -10°C (14°F) or higher.
  • The vehicle is being driven with the shift lever in D.
  • No malfunctions are detected in the solenoid (SL1, SL2, SL3, SL4, SL5, SL6, SL, SLU and SLT) valves, transmission revolution sensors (NT and NC), coolant temperature sensor, oil temperature sensor, knock sensor, crankshaft position sensor circuits, electronic throttle or CAN communication system.
  • The transmission revolution sensor (NT) value exceeds the specified speed for each gear for 0.5 seconds or more.
  • Solenoid (SL1) valve
  • Solenoid (SL2) valve
  • Solenoid (SL3) valve
  • Solenoid (SL4) valve
  • Solenoid (SL5) valve
  • Solenoid (SL6) valve
  • Solenoid (SL) valve
  • Solenoid (SLU) valve
  • Solenoid (SLT) valve
  • Transmission valve body assembly
  • Automatic transaxle assembly (clutch, brake, gear, etc.)

Comes on

DTC stored

SAE Code:

P2714

MONITOR DESCRIPTION

The ECM calculates the amount of heat absorbed by the clutch discs and brake discs based on the difference in speed (clutch slippage) between the turbine (input) and output shaft. If the amount of heat absorption exceeds the specified value, the ECM will illuminate the MIL and store this DTC.

If the solenoid (SLT) valve is stuck ON, the line pressure and clutch engagement force will decrease.

NOTICE:

If driving continues under these conditions, the clutches will burn out and the vehicle will no longer be drivable.

MONITOR STRATEGY

Related DTCs

P2714:

Solenoid (SLT) valve/OFF malfunction

Solenoid (SLT) valve/ON malfunction

Required sensors/components

Solenoid (SLT) valve

Frequency of operation

Continuous

Duration

ON malfunction (A), (B), (C), (D), (E), (F), (G), (H), (I), (J), (K), (L) and (M): -

ON malfunction (N), (O), (P), (Q), (R) and (S): 0.5 sec.

OFF malfunction: 0.8 sec.

MIL operation

2 driving cycles

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

The monitor will run whenever the following DTCs are not stored

P0717, P07BF, P07C0 (Turbine speed sensor circuit)

P0793, P07C5, P07C6 (Intermediate shaft speed sensor circuit)

P0712, P0713 (ATF temperature sensor circuit (TFT sensor))

P0962, P0963 (Solenoid (SL1) valve circuit)

P0966, P0967 (Solenoid (SL2) valve circuit)

P0970, P0971 (Solenoid (SL3) valve circuit)

P2814, P2815 (Solenoid (SL4) valve circuit)

P281D, P281E (Solenoid (SL5) valve circuit)

P08C1, P08C2 (Solenoid (SL6) valve circuit)

P2769, P2770 (Solenoid (SL) valve circuit)

P2763, P2764 (Solenoid (SLU) valve circuit)

P2720, P2721 (Solenoid (SLT) valve circuit)

P0117, P0118 (ECT sensor circuit)

P0335, P0337, P0338 (Crankshaft position sensor circuit)

P0327, P0328, P0332, P0333 (KCS sensor circuit)

P0121, P0122, P0123, P0222, P0223, P0604, P0606, P060A, P060B, P060D, P060E, P061E, P0657, P0658, P2102, P2103, P2111, P2112, P2119, P2135 ((ETCS) Electronic throttle control system)

U0100 (CAN communication system)

Shift position

"D", "not R" and "not N"

Elapsed time since shift lever moved from "N" to "D"

4 sec. or more

ATF temperature

-10°C (14°F) or more

Engine

Starting

ON malfunction (A)
  • Start Conditions of J1summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    1st

    Time after transition to 1st gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 1st gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    1st

    (b) Time after transition to 1st gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 1st gear ratio

    150 rpm or more

    Finish Conditions of J1summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 1st

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 1st gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (B)
  • Start Conditions of J2summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    2nd

    Time after transition to 2nd gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 2nd gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    2nd

    (b) Time after transition to 2nd gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 2nd gear ratio

    150 rpm or more

    Finish Conditions of J2summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 2nd

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 2nd gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (C)
  • Start Conditions of J3summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    3rd

    Time after transition to 3rd gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 3rd gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    3rd

    (b) Time after transition to 3rd gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 3rd gear ratio

    150 rpm or more

    Finish Conditions of J3summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 3rd

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 3rd gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (D)
  • Start Conditions of J4summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    4th

    Time after transition to 4th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 4th gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    4th

    (b) Time after transition to 4th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 4th gear ratio

    150 rpm or more

    Finish Conditions of J4summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 4th

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 4th gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (E)
  • Start Conditions of J5summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    5th

    Time after transition to 5th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 5th gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    5th

    (b) Time after transition to 5th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 5th gear ratio

    150 rpm or more

    Finish Conditions of J5summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 5th

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 5th gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (F)
  • Start Conditions of J6summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    6th

    Time after transition to 6th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 6th gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    6th

    (b) Time after transition to 6th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 6th gear ratio

    150 rpm or more

    Finish Conditions of J6summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 6th

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 6th gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (G)
  • Start Conditions of J7summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    7th

    Time after transition to 7th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 7th gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    7th

    (b) Time after transition to 7th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 7th gear ratio

    150 rpm or more

    Finish Conditions of J7summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 7th

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 7th gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (H)
  • Start Conditions of J8summax Calculation

    Turbine speed

    270 rpm or more

    Neutral state under low torque flag

    OFF

    ECM selected gear

    8th

    Time after transition to 8th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    Turbine speed - Output speed x 8th gear ratio

    150 rpm or more

    Output speed

    More than 0 rpm

    Calculated input torque when the following conditions are met: (a), (b) and (c)

    Specified value

    (a) ECM selected gear

    8th

    (b) Time after transition to 8th gear

    -

    - when detected abnormal shift

    1.5 sec. or more

    - when not detected abnormal shift

    Immediately after approval

    (c) Turbine speed - Output speed x 8th gear ratio

    150 rpm or more

    Finish Conditions of J8summax Calculation

    Any of the following conditions are met: (a), (b), (c), (d), (e) or (f)

    -

    (a) Turbine speed

    Less than 270 rpm

    (b) Neutral state under low torque flag

    ON

    (c) ECM selected gear

    Not 8th

    (d) Duration time while following condition met

    0 sec. or more

    Turbine speed - Output speed x 8th gear ratio

    Less than 50 rpm

    (e) Pass condition met

    -

    (f) ECM selected gear

    Neutral

ON malfunction (J)
  • ECM selected gear

    4th

ON malfunction (K) and (L)
  • ECM selected gear

    8th

ON malfunction (N)
  • Fail-safe mode flag

    OFF

    ECM selected gear

    3rd

    ON malfunction condition (Q)

    Fixed

ON malfunction (O)
  • Fail-safe mode flag

    OFF

    ECM selected gear

    5th

    ON malfunction condition (R)

    Fixed

ON malfunction (P)
  • Fail-safe mode flag

    OFF

    ECM selected gear

    4th

    ON malfunction condition (S)

    Fixed

ON malfunction (Q)
  • ECM selected gear

    1st or 2nd

    Neutral state flag

    ON

    Calculated input torque when Neutral state flag ON

    Specified value

    1st gear pass detection

    Not fixed (after transition to latest gear)

    2nd gear pass detection

    Not fixed (after transition to latest gear)

    Output speed x 3rd gear ratio

    Less than 6500 rpm

ON malfunction (R)
  • ECM selected gear

    3rd, 4th, 6th, 7th or 8th

    Neutral state flag

    ON

    Calculated input torque when Neutral state flag ON

    Specified value

    Output speed x 5th gear ratio

    Less than 6500 rpm

    • Any of the following conditions are met: condition (a) or (b) Condition (a)

      ECM selected gear

      8th

      8th gear pass detection

      Not fixed (after transition to latest gear)

      Condition (b)

      Following conditions are met

      (1) and (((2), (3), (4) and (5)) or (6))

      (1) ECM selected gear

      3rd, 4th, 6th or 7th

      (2) 3rd gear pass detection

      Not fixed (after transition to latest gear)

      (3) 4th gear pass detection

      Not fixed (after transition to latest gear)

      (4) 6th gear pass detection

      Not fixed (after transition to latest gear)

      (5) 7th gear pass detection

      Not fixed (after transition to latest gear)

      (6) ECM commanded solenoid (SL) valve state

      OFF (after transition to latest gear)

    • Any of the following conditions are met: condition (a), (b), (c) or (d) Condition (a)

      ECM selected gear

      4th or 7th

      Turbine speed - Output speed x 3rd gear ratio

      More than 50 rpm

      Condition (b)

      ECM selected gear

      6th

      Turbine speed - Output speed x 4th gear ratio

      More than 50 rpm

      Condition (c)

      ECM selected gear

      8th

      Turbine speed - Output speed x 5th gear ratio

      More than 50 rpm

      Condition (d)

      ECM selected gear

      3rd

ON malfunction (S)
  • ECM selected gear

    5th

    Neutral state flag

    ON

    Calculated input torque when Neutral state flag ON

    Specified value

    5th gear pass detection

    Not fixed (after transition to latest gear)

    Turbine speed - Output speed x 3rd gear ratio

    More than 50 rpm

    Output speed x 4th gear ratio

    Less than 6500 rpm

OFF malfunction
  • Fail-safe function does not operate due to the following malfunctions:

    -

    Solenoid (SL1) valve

    Not OFF or ON malfunction (P0746)

    Solenoid (SL2) valve

    Not OFF or ON malfunction (P0776)

    Solenoid (SL3) valve

    Not OFF or ON malfunction (P0796)

    Solenoid (SL4) valve

    Not OFF or ON malfunction (P2808)

    Solenoid (SL5) valve

    Not OFF or ON malfunction (P2817)

    Solenoid (SL6) valve

    Not OFF or ON malfunction (P08BB)

    Solenoid (SLT) valve

    Not OFF malfunction (P2714)

    Solenoid (SLU) valve

    Not ON malfunction (P2757)

    Solenoid (SL) valve

    Not ON malfunction (P0741)

    All shift solenoids

    Not being stopped

    Neutral command flag

    Not met

    ECM selected gear

    2nd, 3rd, 4th, 6th, 7th or 8th

    Vehicle speed

    2 km/h (1.2 mph) or more

    Throttle valve opening angle

    5% or more at engine speed 2000 rpm

    (conditions vary with engine speed)

    Calculated load value

    -

    - When A/C off

    16.0% or more

    - When A/C on

    19.0% or more

    ECT

    40°C (104°F) or more

    Spark advance from MAX. retard timing by KCS control

    0 °CA or more

Neutral state under low torque flag

Neutral state flag

ON

ECM selected gear

1st, 2nd, 3rd, 4th, 5th, 6th, 7th or 8th

Fail-safe mode flag

OFF

  • Any of the following conditions are met: Condition (a) or (b)
    • Condition (a)

      ECM selected gear

      1st, 2nd, 5th or 8th

      1st gear pass detection

      Not fixed (after transition to latest gear)

      2nd gear pass detection

      Not fixed (after transition to latest gear)

      5th gear pass detection

      Not fixed (after transition to latest gear)

      8th gear pass detection

      Not fixed (after transition to latest gear)

      Condition (b)

      Following conditions are met

      (1) and (((2), (3), (4) and (5)) or (6))

      (1) ECM selected gear

      3rd, 4th, 6th or 7th

      (2) 3rd gear pass detection

      Not fixed (after transition to latest gear)

      (3) 4th gear pass detection

      Not fixed (after transition to latest gear)

      (4) 6th gear pass detection

      Not fixed (after transition to latest gear)

      (5) 7th gear pass detection

      Not fixed (after transition to latest gear)

      (6) ECM commanded solenoid (SL) valve state

      OFF (after transition to latest gear)

  • Any of the following conditions are met: Condition (a), (b), (c) or (d) Condition (a)

    ECM selected gear

    4th, 5th or 7th

    Turbine speed - Output speed x 3rd gear ratio

    More than 50 rpm

    Condition (b)

    ECM selected gear

    6th

    Turbine speed - Output speed x 4th gear ratio

    More than 50 rpm

    Condition (c)

    ECM selected gear

    8th

    Turbine speed - Output speed x 5th gear ratio

    More than 50 rpm

    Condition (d)

    ECM selected gear

    1st, 2nd or 3rd

Neutral state flag:

Turbine speed - output speed x (ECM selected gear)

1000 rpm or more

Neutral command flag:

Engine speed

7200 rpm or more

Turbine speed

7200 rpm or more

  • Any of the following conditions are met: Condition (a) or (b)
    • Condition (a)

      ECM selected gear

      6th or 7th or 8th

      Output speed x 5th gear ratio

      7200 rpm or more

      Condition (b)

      ECM selected gear

      4th or 5th

      Output speed x 3rd gear ratio

      7200 rpm or more

TYPICAL MALFUNCTION THRESHOLDS

ON malfunction
  • Any of the following conditions are met: ON malfunction (A), (B), (C), (D), (E), (F), (G), (H), (I), (J), (K), (L), (M), (N), (O) or (P) ON malfunction (A)

    Summation of clutch heat generations at 1st gear (J1summax)

    Specified value

    ON malfunction (B)

    Summation of clutch heat generations at 2nd gear (J2summax)

    Specified value

    ON malfunction (C)

    Summation of clutch heat generations at 3rd gear (J3summax)

    Specified value

    ON malfunction (D)

    Summation of clutch heat generations at 4th gear (J4summax)

    Specified value

    ON malfunction (E)

    Summation of clutch heat generations at 5th gear (J5summax)

    Specified value

    ON malfunction (F)

    Summation of clutch heat generations at 6th gear (J6summax)

    Specified value

    ON malfunction (G)

    Summation of clutch heat generations at 7th gear (J7summax)

    Specified value

    ON malfunction (H)

    Summation of clutch heat generations at 8th gear (J8summax)

    Specified value

    ON malfunction (I)

    Solenoid (SL1) valve

    ON malfunction

    ON malfunction (J) and (K)

    Solenoid (SL3) valve

    ON malfunction

    ON malfunction (L)

    Solenoid (SL4) valve

    ON malfunction

    ON malfunction (M)

    Solenoid (SLU) valve

    OFF malfunction

    ON malfunction (N), (O) and (P)

    Neutral state flag

    ON

OFF malfunction
  • Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    1.142 or more and 1.323 or less

    (When output speed less than 550 rpm)

    (b) Turbine speed - Output speed x 5th gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 550 rpm or more)

Neutral state flag:

Turbine speed - output speed x (ECM selected gear)

1000 rpm or more

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the engine switch off and wait for 2 minutes or more.
  5. Turn the engine switch on (IG) and turn the Techstream on.
  6. Start the engine.
  7. Perform the D Position Shift Test inspection in Road Test. [*1]

    Click here

    HINT:

    [*1] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  8. Stop the vehicle.
  9. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  10. Input the DTC: P27137F.
  11. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the automatic transaxle are replaced.

    Click here

PROCEDURE

1.

CHECK DTC OUTPUT (IN ADDITION TO DTC P27137F)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Transmission / Trouble Codes.

Powertrain > Transmission > Trouble Codes

(e) Read the DTCs using the Techstream.

Result

Proceed to

DTC P27137F and DTC P07457F, P07407E, P07757F, P07957F, P08BA7F, P28077F and/or P28167F are output

A

Only DTC P27137F is output

B

DTCs other than P07457F, P07407E, P07757F, P07957F, P08BA7F, P27137F, P28077F and P28167F are output

C

HINT:

  • If any DTCs other than P07457F, P07407E, P07757F, P07957F, P08BA7F, P27137F, P28077F and P28167F are output, perform troubleshooting for those DTCs first.
  • If a solenoid valve is stuck ON or OFF, DTCs for several solenoid valves including the malfunctioning solenoid valve will be stored.
B

GO TO STEP 5

C

GO TO DTC CHART

A

2.

CLEAR DTC AND PERFORM STALL SPEED TEST

(a) Clear the DTCs.

Powertrain > Transmission > Clear DTCs

HINT:

Write down the currently output DTCs before clearing them.

(b) Perform the stall speed test.

Click here

Test Condition

Proceed to

Stall speed test can be performed

A

Stall speed test cannot be performed

B

B

GO TO STEP 5

A

3.

INSPECT SOLENOID (SL1), (SL2), (SL3), (SL4), (SL5) AND (SL6) VALVE

(a) Remove the solenoid (SL1), (SL2), (SL3), (SL4), (SL5) and (SL6) valves.

Click here

*a

Component without harness connected

(Solenoid (SL1), (SL2), (SL3), (SL4), (SL5) and (SL6) Valves)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Solenoid (SL1) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

Solenoid (SL2) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

Solenoid (SL3) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

Solenoid (SL4) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

Solenoid (SL5) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

Solenoid (SL6) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

(c) Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the solenoid valve connector. Check that the valve moves and makes an operating sound.

OK:

Valve moves and makes an operating sound.

NG

REPLACE SOLENOID (SL1), (SL2), (SL3), (SL4), (SL5) OR (SL6) VALVE

OK

4.

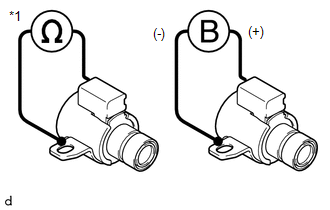

INSPECT SOLENOID (SL) VALVE

(a) Remove the solenoid (SL) valve.

Click here

*1

Solenoid (SL) Valve

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Solenoid (SL) valve connector terminal - Solenoid (SL) valve body

20°C (68°F)

11 to 15 Ω

(c) Connect a positive (+) lead from the battery to the terminal of the solenoid valve connector, and a negative (-) lead to the solenoid body. Check that the valve moves and makes an operating sound.

OK:

Valve moves and makes an operating sound.

NG

REPLACE SOLENOID (SL) VALVE

OK

5.

INSPECT SOLENOID (SLT) VALVE

(a) Remove the solenoid (SLT) valve.

Click here

*a

Component without harness connected

(Solenoid (SLT) Valve)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Solenoid (SLT) valve connector terminal 1 - terminal 2

20°C (68°F)

5.0 to 5.6 Ω

(c) Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the solenoid valve connector. Check that the valve moves and makes an operating sound.

OK:

Valve moves and makes an operating sound.

NG

REPLACE SOLENOID (SLT) VALVE

OK

6.

INSPECT TRANSMISSION VALVE BODY ASSEMBLY

(a) Inspect the transmission valve body assembly.

Click here

OK:

There is no foreign matter on each valve and they operate smoothly.

NG

REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY

OK

7.

REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSEMBLY

(a) Repair or replace the automatic transaxle assembly.

Click here

NEXT

PERFORM REGISTRATION

    Pressure Control Solenoid "C" Actuator Stuck Off (P07957F)

    Torque Converter Clutch Pressure Control Solenoid Control Actuator Stuck Off (P27567F)

    See More:

    Toyota Avalon Service & Repair Manual > Motor Generator Control System: Generator Inverter Actuator Stuck Open (P0A7A72)
    DTC SUMMARY MALFUNCTION DESCRIPTION This DTC indicates that current does not flow as commanded due to a generator output circuit malfunction. The cause of this malfunction may be one of the following: Internal inverter malfunction Inverter with converter assembly internal circuit malfunction Inverte ...

    Toyota Avalon Owners Manual

    Toyota Avalon Service & Repair Manual

    © 2021 Copyright www.tavalon.net
    0.0294
