DESCRIPTION

The ATF temperature sensor converts the automatic transaxle fluid (ATF) temperature into a resistance value for use by the ECM.

The ECM applies a voltage to the temperature sensor through terminal THO1 of the ECM.

The sensor resistance changes with the ATF temperature. As the temperature rises, the sensor resistance decreases.

One terminal of the sensor is grounded so that the sensor resistance and voltage decrease as the temperature rises.

The ECM calculates the ATF temperature based on the voltage signal.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P071000

Transmission Fluid Temperature Sensor "A" Circuit Range/Performance

Either of the following condition is met (2-trip detection logic):

  • Certain monitor enabling conditions are met and the ATF temperature is below 20°C (68°F).
  • Certain monitor enabling conditions are met and the ATF temperature is 110°C (230°F) or higher.
  • Transmission wire (ATF temperature sensor)
  • ATF temperature sensor circuit
  • ECM

Comes on

DTC stored

SAE Code:

P0711

DTC Detection Condition Patterns:


Vehicle Condition

Pattern 1

Pattern 2

Diagnostic Condition

Certain monitor enabling conditions are met.

Malfunction Condition

The ATF temperature is below 20°C (68°F).

-

The ATF temperature is 110°C (230°F) or higher.

-

Duration

3 seconds or more

3 seconds or more

Detection Logic

2-trip detection logic

2-trip detection logic

HINT:

This DTC is stored when either of the above detection patterns is met.

MONITOR DESCRIPTION

This DTC indicates that there is a problem with the output signals from the ATF temperature sensor and that the sensor itself is defective. The ATF temperature sensor converts the ATF temperature into an electrical resistance value. Based on the resistance, the ECM determines the ATF temperature and detects an open or short in the ATF temperature circuit or a malfunction of the ATF temperature sensor.

After driving the vehicle for a certain period of time, the ATF temperature should increase. If the ATF temperature is below 20°C (68°F) after driving the vehicle for a certain period, the ECM interprets this as a malfunction, illuminates the MIL and stores this DTC.

If the ATF temperature is 110°C (230°F) or higher and the engine coolant temperature takes 10 seconds or more to reach 60°C (140°F) after a cold start, the ECM also interprets this as a malfunction, illuminates the MIL and stores this DTC.

MONITOR STRATEGY

Related DTCs

P0711: ATF temperature sensor/Rationality fault diagnostics

Required sensors/components

ATF temperature sensor (TFT sensor)

Frequency of operation

Continuous

Duration

3 sec.

MIL operation

2 driving cycles

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

ALL:

The monitor will run whenever the following DTCs are not stored

P0112, P0113 (IAT (Intake air temperature) sensor circuit)

P0717, P07BF, P07C0 (Turbine speed sensor circuit)

P0793, P07C5, P07C6 (Intermediate shaft speed sensor circuit)

P0962, P0963 (Solenoid (SL1) valve circuit)

P0966, P0967 (Solenoid (SL2) valve circuit)

P0970, P0971 (Solenoid (SL3) valve circuit)

P2814, P2815 (Solenoid (SL4) valve circuit)

P281D, P281E (Solenoid (SL5) valve circuit)

P08C1, P08C2 (Solenoid (SL6) valve circuit)

P0743 (Solenoid (SL) valve circuit)

P2759 (Solenoid (SLU) valve circuit)

P0117, P0118 (ECT (Engine coolant temperature) sensor circuit)

P0712, P0713 (ATF temperature sensor circuit (TFT sensor))

P0327, P0328, P0332, P0333 (KCS sensor circuit)

P0121, P0122, P0123, P0222, P0223, P0604, P0606, P060A, P060B, P060D, P060E, P061E, P0657, P0658, P2102, P2103, P2111, P2112, P2119, P2135 ((ETCS) Electronic throttle control system)

U0100 (CAN communication system)

P0335 (Crankshaft position sensor "A" circuit)

P2610 (Soak timer circuit)

Condition (A)

Time after engine start except for continuing shift position "N" or "P"*2

10 min. or more

Accumulated driving time *1

2 min. and 35 sec. or more

Driving distance after engine start*3

5 km (3.1 miles) or more

IAT*4

15°C (59°F) or higher

ECT (12 sec. after engine start) Duration

15°C (59°F) or higher

Soak time

5 hours or more

Condition (B):

Time after engine start except for continuing shift position "N" or "P"*2

18 min. and 20 sec. or more

Accumulated driving time*1

4 min. and 10 sec. or more

Driving distance after engine start*3

8 km (5 mile) or more

IAT*4

-10°C (14°F) or more

ECT (12 sec. after engine start)

-10°C (14°F) or more

Condition (C):

Time after engine start except for continuing shift position "N" or "P"*2

30 min. or more

Accumulated driving time*1

6 min. and 40 sec. or more

Driving distance after engine start*3

15 km (9.3 mile)

IAT*4

-15°C (5°F) or more

ECT (12 sec. after engine start)

-15°C (5°F) or more

Condition (D):

Time after engine start except for continuing shift position "N" or "P"*2

40 min. or more

Accumulated driving time*1

9 min. and 5 sec. or more

Driving distance after engine start*3

20 km (12.4 mile)

Condition (E):

Elapsed time for ECT to reach 60°C (140°F)

10 sec. or more

ATF temperature (12 sec. after engine start)

110°C (230°F) or higher

ECT (12 sec. after engine start)

Below 35°C (95°F)

HINT:

*1: Following conditions are met

Engine speed - Turbine speed

-50 rpm or more

Output speed

400 rpm or more

Throttle valve opening angle

3% or more

Shift position

Not "N" or "P"

Engine

Starting

Accumulated driving time is cleared when following condition met

-

Duration time from shift position "N" or "P"

300 sec. or more

*2: Time after engine start is cleared when following condition met

Duration time from shift position "N" or "P"

300 sec. or more

*3: Driving distance is cleared when following condition met

Duration time from shift position "N" or "P"

300 sec. or more

*4: IAT is measured when either of following conditions met

12 sec. after engine start

-

Duration time from shift position "N" or "P"

300 sec. or more

TYPICAL MALFUNCTION THRESHOLDS

One of the following conditions is met: Condition (A), (B), (C), (D) or (E)

Condition (A), (B), (C) and (D)

Duration time from engine start

12 sec. or more

ECT

-15°C (5°F) or higher

ATF temperature

Below 20°C (68°F)

Condition (E)

ATF temperature

110°C (230°F) or higher

COMPONENT OPERATING RANGE

ATF temperature

20°C (68°F) or higher and below 110°C (230°F)

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the engine switch off and wait for at least 5 hours. [*1]
  5. Turn the engine switch on (IG) and turn the Techstream on. [*2]
  6. Start the engine and perform both of the following [*3]:
    • Drive the vehicle 20 km (12 mile) or more over a period of 9 minutes and 5 seconds or more.
    • Wait until 40 minutes or more have elapsed since the engine started.

      HINT:

      [*1] to [*3] : Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Stop the vehicle.
  8. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  9. Input the DTC: P071000.
  10. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

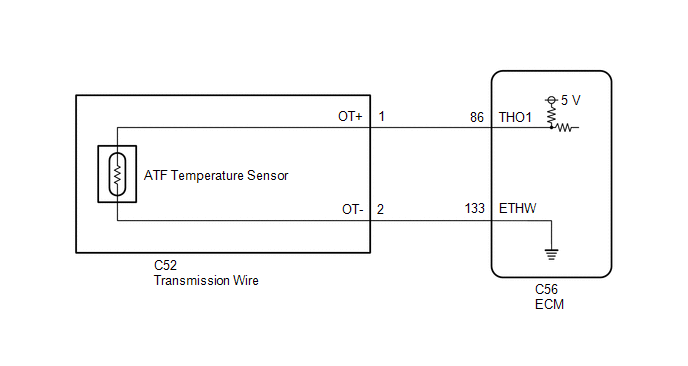

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the automatic transaxle are replaced.

    Click here

  • If DTCs P071000, P261029 and/or P261093 are output simultaneously, using the Techstream, check if the ATF temperature is as specified under the "Normal Condition" column of the Data List. If the ATF temperature is as specified under the "Normal Condition" column, perform troubleshooting for DTC P261029.

    Click here

DATA LIST

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Warm up the engine.

(b) Turn the engine switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the engine switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Transmission / Data List / A/T Oil Temperature No.1.

(g) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

A/T Oil Temperature No.1

ATF temperature sensor value

Min.: -40°C (-40°F)

Max.: 150°C (302°F)

  • Approximately 80°C (176°F): After stall speed test
  • Equal to ambient temperature: When engine is cold

If value is -40°C (-40°F) or 150°C (302°F), ATF temperature sensor circuit is open or shorted

Powertrain > Transmission > Data List

Tester Display

A/T Oil Temperature No.1

HINT:

  • If DTC P071011 is output and the Techstream indicates 150°C (302°F) or higher, there is a short in the circuit.
  • If DTC P071015 is output and the Techstream indicates -40°C (-40°F), the circuit is open.

    Check the temperature displayed on the Techstream in order to check if a malfunction exists.

    Temperature Displayed

    Malfunction

    -40°C (-40°F)

    Open circuit

    150°C (302°F) or higher

    Short circuit

  • If a circuit related to the ATF temperature sensor becomes open, P071015 will be stored in approximately 0.5 seconds. If DTC P071015 is stored, DTC P071000 cannot be detected. It is not necessary to inspect the circuit when P071000 is output.

PROCEDURE

1.

CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P071000)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Transmission / Trouble Codes.

Powertrain > Transmission > Trouble Codes

(e) Read the DTCs using the Techstream.

Result

Proceed to

Only DTC P071000 is output

A

DTC P071000 and P071015 are output

B

DTC P071000 and other DTCs are output

C

HINT:

If any DTCs other than DTC P071000 are output, perform troubleshooting for those DTCs first.

B

GO TO DTC CHART (DTC P071015)

C

GO TO DTC CHART

A

2.

INSPECT AUTOMATIC TRANSAXLE FLUID LEVEL

(a) Check the automatic transaxle fluid level.

Click here

OK:

Automatic transaxle fluid level is correct.

NG

ADJUST AUTOMATIC TRANSAXLE FLUID LEVEL

OK

3.

CHECK TRANSMISSION WIRE CIRCUIT

(a) Disconnect the C56 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C56-86 (THO1) - C56-133 (ETHW)

ATF temperature 10°C (50°F)

5 to 8 kΩ

C56-86 (THO1) - C56-133 (ETHW)

ATF temperature 110°C (230°F)

0.22 to 0.28 kΩ

C56-133 (ETHW) - Body ground

Always

10 kΩ or higher

C56-86 (THO1) - Body ground

Always

10 kΩ or higher

HINT:

If the resistance is out of the specified range at the ATF temperature shown in the table below, the driveability of the vehicle may decrease.

ATF Temperature

Specified Condition

25°C (77°F)

2.5 to 4.5 kΩ

NG

GO TO STEP 5

OK

4.

REPLACE ECM

(a) Replace the ECM.

Click here

NEXT

PERFORM REGISTRATION

5.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Disconnect the C52 transmission wire connector.

(b) Disconnect the C56 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C52-1 (OT+) - C56-86 (THO1)

Always

Below 1 Ω

C52-2 (OT-) - C56-133 (ETHW)

Always

Below 1 Ω

C52-1 (OT+) or C56-86 (THO1) - Body ground

Always

10 kΩ or higher

C52-2 (OT-) or C56-133 (ETHW) - Body ground

Always

10 kΩ or higher

OK

REPLACE TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

    Transmission Range Sensor "A" Circuit Open (P070513,P070562)

    Transmission Fluid Temperature Sensor "A" Circuit Short To Ground (P071011)

    See More:

    Toyota Avalon Service & Repair Manual > Rear Package Tray Speaker: Components
    COMPONENTS ILLUSTRATION *1 REAR DOOR OPENING TRIM WEATHERSTRIP LH *2 REAR DOOR OPENING TRIM WEATHERSTRIP RH *3 ROOF SIDE INNER GARNISH LH *4 ROOF SIDE INNER GARNISH RH *5 ROOF SIDE RAIL GARNISH ASSEMBLY LH *6 ROOF SIDE RAIL GARNISH ASSEMBLY RH *7 CLIP - - ● Non-reusable part - - ILLUSTRATION *1 PA ...

    Toyota Avalon Owners Manual

    Toyota Avalon Service & Repair Manual

    © 2021 Copyright www.tavalon.net
    0.0435
