DESCRIPTION

The transmission revolution sensor (NC) detects the rotation speed of the counter gear which shows the output shaft speed of automatic transaxle assembly.

Based on the transmission revolution sensor (NC) signal and the transmission revolution sensor (NT) signal, the ECM controls engine torque and shift timing.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P079112

Intermediate Shaft Speed Sensor "A" Circuit Short to Battery

All of the following conditions are met (1-trip detection logic):

  • The battery voltage is 8 V or more.
  • The engine switch is on (IG).
  • The starter is off.
  • Transmission revolution sensor (NC) input voltage is more than 1.9 V for 2 seconds.
  • Transmission revolution sensor (NC)
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P07C6

P079114

Intermediate Shaft Speed Sensor "A" Circuit Short to Ground or Open

All of the following conditions are met (1-trip detection logic):

  • The battery voltage is 8 V or more.
  • The engine switch is on (IG).
  • The starter is off.
  • Transmission revolution sensor (NC) input voltage is less than 0.1 V for 2 seconds.
  • Transmission revolution sensor (NC)
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P07C5

P079131

Intermediate Shaft Speed Sensor "A" No Signal

All of the following conditions are met (1-trip detection logic):

  • The battery voltage is 8 V or more.
  • Park/neutral position switch D input signal is ON.
  • The vehicle speed is 25 km/h (16 mph) or more.
  • Speed indicated by transmission revolution sensor (NT) is higher than specified value.
  • Speed indicated by transmission revolution sensor (NC) is less than 300 rpm for 2 seconds.
  • Transmission revolution sensor (NC)
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P0793

DTC Detection Condition Patterns (P079131):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Diagnostic Condition

The battery voltage is 8 V or more.

Park/neutral position switch D input signal is ON.

The vehicle speed is 25 km/h (16 mph) or more.

When the vehicle is being driven in 1st gear, the transmission revolution sensor (NT) value is 2390 rpm or more.

-

-

-

When the vehicle is being driven in 2nd gear, the transmission revolution sensor (NT) value is 1380 rpm or more.

-

-

-

When the vehicle is being driven in 3rd gear, the transmission revolution sensor (NT) value is 890 rpm or more.

-

-

-

When the vehicle is being driven in 4th gear, the transmission revolution sensor (NT) value is 620 rpm or more.

-

-

-

Malfunction Condition

Speed indicated by transmission revolution sensor (NC) is less than 300 rpm.

Duration

2 seconds or more

2 seconds or more

2 seconds or more

2 seconds or more

Detection Logic

1-trip detection logic

1-trip detection logic

1-trip detection logic

1-trip detection logic

DTC Detection Condition Patterns (P079131):


Vehicle Condition

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnostic Condition

The battery voltage is 8 V or more.

Park/neutral position switch D input signal is ON.

The vehicle speed is 25 km/h (16 mph) or more.

When the vehicle is being driven in 5th gear, the transmission revolution sensor (NT) value is 540 rpm or more.

-

-

-

When the vehicle is being driven in 6th gear, the transmission revolution sensor (NT) value is 440 rpm or more.

-

-

-

When the vehicle is being driven in 7th gear, the transmission revolution sensor (NT) value is 350 rpm or more.

-

-

-

When the vehicle is being driven in 8th gear, the transmission revolution sensor (NT) value is 300 rpm or more.

-

-

-

Malfunction Condition

Speed indicated by transmission revolution sensor (NC) is less than 300 rpm.

Duration

2 seconds or more

2 seconds or more

2 seconds or more

2 seconds or more

Detection Logic

1-trip detection logic

1-trip detection logic

1-trip detection logic

1-trip detection logic

HINT:

DTC P079131 is stored when any of the above detection patterns is met.

MONITOR DESCRIPTION

The transmission revolution sensor (NC) monitors the output shaft speed.

The ECM commands gear changes and controls the lock up timing based on the signals from the transmission revolution sensor (NC) and throttle position sensor.

If the vehicle is being driven at 25 km/h (16 mph) or more and the speed sensor (NC) signal sent to the ECM is less than 300 rpm, or if the transmission revolution sensor (NC) input signal voltage is less than 0.1 V or more than 1.9 V, the ECM will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P0793: Speed sensor (NC)/Verify pulse input

P07C5: Speed sensor (NC)/Range check (Low voltage)

P07C6: Speed sensor (NC)/Range check (High voltage)

Required sensors/components

Speed sensor (NT), Speed sensor (NC)

Frequency of operation

Continuous

Duration

2 sec.

MIL operation

Immediate

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

Battery voltage

8 V or more

Engine switch

On (IG)

Starter

OFF

P0793

The monitor will run whenever the following DTCs are not stored

P07C5, P07C6 (Intermediate shaft speed sensor circuit)

U0100 (CAN communication system)

P2716 (Pressure control solenoid circuit)

Intermediate shaft speed sensor range check fail (P07C5, P07C6)

(Pending / MIL)

Not detected

Vehicle speed

25 km/h (15.54 mph) or more

Shift change is completed and before starting next shift change operation

-

Park/neutral position switch

OFF

R range position switch

OFF

D range position switch

ON

Engine

Running

Pressure control solenoid circuit fail (P08C1, P08C2, P0962, P0963, P0966, P0967, P0970, P0971, P2720, P2721, P2814, P2815, P281D, P281E)

(Pending + MIL)

Not detected

Torque converter clutch pressure control solenoid circuit fail (P2763, P2764)

(Pending + MIL)

Not detected

Torque converter clutch solenoid circuit fail (P2769, P2770)

(Pending + MIL)

Not detected

  • One of the following conditions is met: Condition (A), (B), (C), (D), (E), (F), (G) or (H) Condition (A)

    ECM selected gear

    1st

    Turbine speed sensor revolution

    2390 rpm or more

    Condition (B)

    ECM selected gear

    2nd

    Turbine speed sensor revolution

    1380 rpm or more

    Condition (C)

    ECM selected gear

    3rd

    Turbine speed sensor revolution

    890 rpm or more

    Condition (D)

    ECM selected gear

    4th

    Turbine speed sensor revolution

    620 rpm or more

    Condition (E)

    ECM selected gear

    5th

    Turbine speed sensor revolution

    540 rpm or more

    Condition (F)

    ECM selected gear

    6th

    Turbine speed sensor revolution

    440 rpm or more

    Condition (G)

    ECM selected gear

    7th

    Turbine speed sensor revolution

    350 rpm or more

    Condition (H)

    ECM selected gear

    8th

    Turbine speed sensor revolution

    300 rpm or more

  • Either of the following conditions is met: Condition (I) or (J) Condition (I)

    ECT

    20°C (68°F) or more

    ECT sensor circuit fail (P0117, P0118)

    (Pending + MIL)

    Not detected

    Time after park/neutral position switch ON to OFF

    2 seconds or more

    Condition (J)

    Either of the following conditions is met

    (a) or (b)

    (a) ECT

    Less than 20°C (68°F)

    (b) ECT sensor circuit fail (P0117, P0118)

    (Pending + MIL)

    Detected

    Time after park/neutral position switch ON to OFF

    30 seconds or more

P07C5, P07C6

The monitor will run whenever the following DTCs are not stored

P0793 (Intermediate shaft speed sensor verify pulse input)

Intermediate shaft speed sensor pulse input fail (P0793)

(Pending / MIL)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

P0793

Intermediate shaft speed sensor revolution

Less than 300 rpm

P07C5

Intermediate shaft speed sensor voltage

Less than 0.1 V

P07C6

Intermediate shaft speed sensor voltage

More than 1.9 V

COMPONENT OPERATING RANGE

Intermediate shaft speed sensor revolution

300 rpm or more

Intermediate shaft speed sensor voltage

0.1 V or more and 1.9 V or less

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the engine switch off and wait for 2 minutes or more.
  5. Turn the engine switch on (IG) and turn the Techstream on.
  6. Start the engine.
  7. Perform the D Position Shift Test inspection in Road Test. [*1]

    Click here

    HINT:

    [*1] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  8. Stop the vehicle.
  9. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  10. Input the DTC: P079112, P079114 or P079131.
  11. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

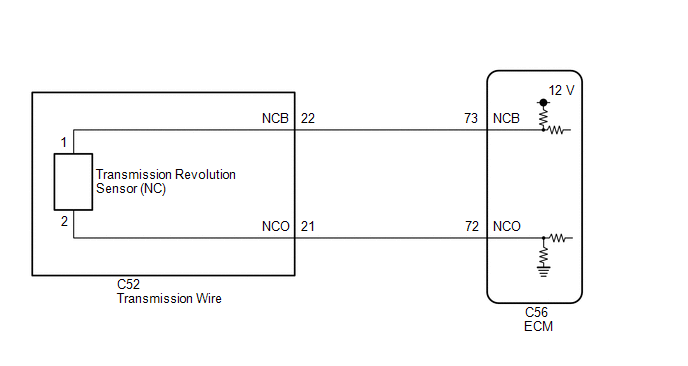

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

  • Strictly observe posted speed, limits, traffic laws and road conditions.
  • Do not drive the vehicle with the cable of the Techstream contacting the pedals, shift lever or steering wheel.
  • Driving the vehicle with the cable of the Techstream contacting these areas could impede vehicle control, resulting in a serious accident.
  • Do not operate the Techstream while driving the vehicle.
  • Operating the Techstream while driving the vehicle will prevent you from paying sufficient attention to vehicle surroundings, and could result in a serious accident.

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the automatic transaxle are replaced.

    Click here

DATA LIST

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Warm up the engine.

(b) Turn the engine switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the engine switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Transmission / Data List / NC Sensor Speed.

(g) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

NC Sensor Speed

Counter gear speed

Min.: 0 rpm

Max.: 12750 rpm

-

-

Powertrain > Transmission > Data List

Tester Display

NC Sensor Speed

HINT:

  • NC Sensor Speed is always 0 while driving: Open or short in the sensor or circuit.
  • NC Sensor Speed is always more than 0 and less than 300 rpm while driving the vehicle at 16 km/h (10 mph) or more: Sensor malfunction, improper installation, or intermittent connection malfunction in the circuit.

PROCEDURE

1.

READ VALUE USING TECHSTREAM (NC SENSOR SPEED AND NC SENSOR VOLTAGE)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Transmission / Data List / NC Sensor Speed and NC Sensor Voltage.

(e) Read the Data List according to the display on the Techstream.

Powertrain > Transmission > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

NC Sensor Speed

Counter gear speed

Min.: 0 rpm

Max.: 12750 rpm

-

-

NC Sensor Voltage

NC sensor voltage

Min.: 0.000 V

Max.: 4.999 V

0.1 to 1.9 V: Engine idling

-

Powertrain > Transmission > Data List

Tester Display

NC Sensor Speed

NC Sensor Voltage

Result

Proceed to

Data List values are normal

A

Data List values are not normal

B

A

GO TO STEP 5

B

2.

INSPECT TRANSMISSION REVOLUTION SENSOR (NC) (NC TERMINAL)

(a) Disconnect the C52 transmission wire connector.

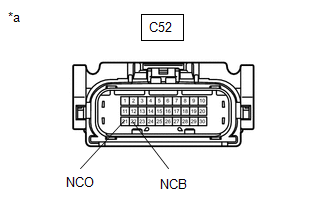

*a

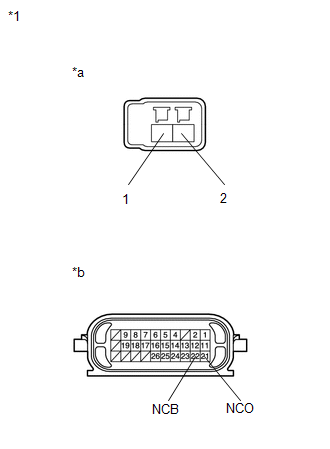

Front view of wire harness connector

(to Transmission Wire)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C52-21 (NCO) - Body ground

Always

99 to 101 Ω

(c) Turn the engine switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

C52-22 (NCB) - Body ground

Engine switch on (IG)

11 to 14 V

NG

GO TO STEP 4

OK

3.

INSPECT TRANSMISSION WIRE (TRANSMISSION REVOLUTION SENSOR (NC))

(a) Disconnect the transmission revolution sensor (NC) connector.

Click here

*1

Transmission Wire

*a

Transmission Revolution Sensor (NC) Side

*b

Wire Harness Connector Side

(b) Disconnect the C52 transmission wire connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (transmission revolution sensor (NC) side) - 22 (NCB) (wire harness connector side)

Always

Below 1 Ω

2 (transmission revolution sensor (NC) side) - 21 (NCO) (wire harness connector side)

Always

Below 1 Ω

1 (transmission revolution sensor (NC) side) or 22 (NCB) (wire harness connector side) - Body ground

Always

10 kΩ or higher

2 (transmission revolution sensor (NC) side) or 21 (NCO) (wire harness connector side) - Body ground

Always

10 kΩ or higher

OK

REPLACE TRANSMISSION REVOLUTION SENSOR (NC)

NG

REPAIR OR REPLACE TRANSMISSION WIRE

4.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Disconnect the C52 transmission wire connector.

(b) Disconnect the C56 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C52-22 (NCB) - C56-73 (NCB)

Always

Below 1 Ω

C52-21 (NCO) - C56-72 (NCO)

Always

Below 1 Ω

C52-22 (NCB) or C56-73 (NCB) - Body ground

Always

10 kΩ or higher

C52-21 (NCO) or C56-72 (NCO) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

OK

5.

REPLACE ECM

(a) Replace the ECM.

Click here

NEXT

PERFORM REGISTRATION

    Pressure Control Solenoid "B" Circuit Short to Ground or Open (P077514)

    Pressure Control Solenoid "C" Circuit Short to Battery (P079512)

    See More:

    Toyota Avalon Service & Repair Manual > Electronically Controlled Brake System(for Gasoline Model): Steering Angle Sensor Output (C1434)
    DESCRIPTION The skid control ECU (brake actuator assembly) receives signals from the steering angle sensor via CAN communication. HINT: If there is a malfunction in the bus lines between the steering angle sensor and the CAN communication system, DTC U0126 (Lost Communication With Steering Angle Sen ...

    Toyota Avalon Owners Manual

    Toyota Avalon Service & Repair Manual

    © 2024 Copyright www.tavalon.net
    0.0142
