Toyota Avalon Service & Repair Manual: 2gr-fks Drive Belt

Components

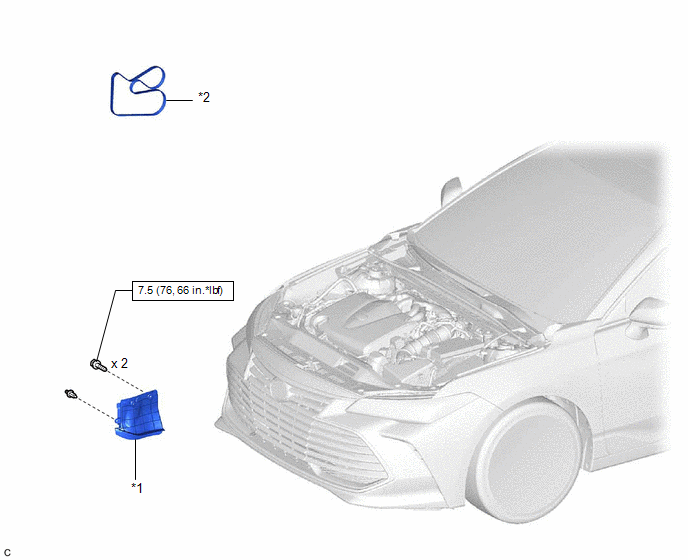

COMPONENTS

ILLUSTRATION

*1

FRONT FENDER APRON SEAL RH

*2

V-RIBBED BELT

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL V-RIBBED BELT

HINT:

When reusing the V-ribbed belt, check the ribs and back of the V-ribbed belt for wear and cracks. If wear or a crack that reaches the core (at more than 1 point) is found, replace the V-ribbed belt.

(a) Install the V-ribbed belt.

NOTICE:

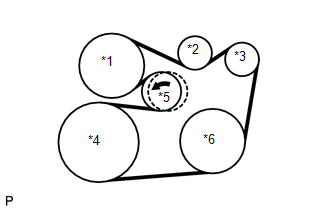

  • Make sure to put the backside of the V-ribbed belt on the V-ribbed belt tensioner assembly pulley and No. 2 idler pulley sub-assembly.
  • Check that the V-ribbed belt is properly set to each pulley.

*1

Engine Water Pump Assembly

*2

No. 2 Idler Pulley Sub-assembly

*3

Generator Assembly

*4

Crankshaft Pulley

*5

V-ribbed Belt Tensioner Assembly

*6

Compressor Assembly with Pulley

(b) Turn the V-ribbed belt tensioner assembly counterclockwise and remove the 5 mm hexagon wrench.

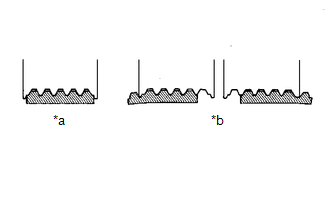

(c) After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Confirm that the V-ribbed belt has not slipped out of the grooves on the bottom of the pulley by hand.

*a

Correct

*b

Incorrect

2. INSTALL FRONT FENDER APRON SEAL RH

Click here

3. INSTALL FRONT WHEEL RH

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL RH

Click here

2. REMOVE FRONT FENDER APRON SEAL RH

Click here

3. REMOVE V-RIBBED BELT

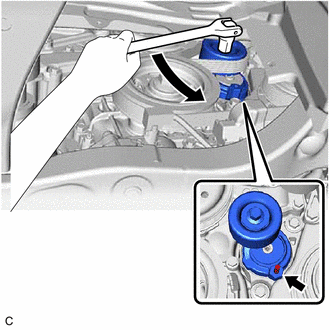

(a) Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.

(b) Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.

(c) Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
