Toyota Avalon Service & Repair Manual: 2gr-fks Spark Plug

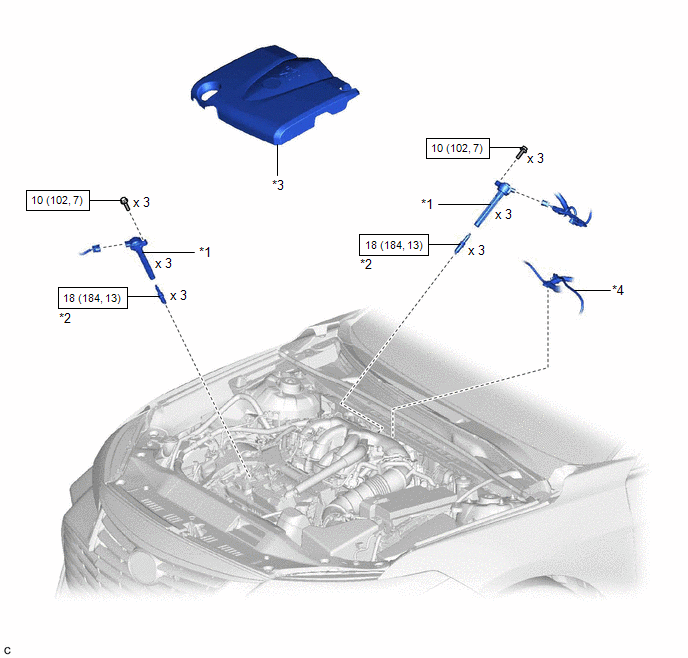

Components

COMPONENTS

ILLUSTRATION

*1

IGNITION COIL ASSEMBLY

*2

SPARK PLUG

*3

V-BANK COVER SUB-ASSEMBLY

*4

VACUUM HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL SPARK PLUG

HINT:

Perform "Inspection After Repair" after replacing a spark plug.

Click here

(a) Install the 6 spark plugs to the cylinder head sub-assembly and cylinder head LH.

Torque:

18 N·m {184 kgf·cm, 13 ft·lbf}

NOTICE:

If a spark plug has been struck or dropped, replace it.

HINT:

Install the same parts to their original positions.

2. INSTALL IGNITION COIL ASSEMBLY

Click here

3. INSTALL V-BANK COVER SUB-ASSEMBLY

Click here

4. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.

Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of ignition coil assembly
  • Replacement of spark plug

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

1. REMOVE V-BANK COVER SUB-ASSEMBLY

Click here

2. REMOVE IGNITION COIL ASSEMBLY

Click here

3. REMOVE SPARK PLUG

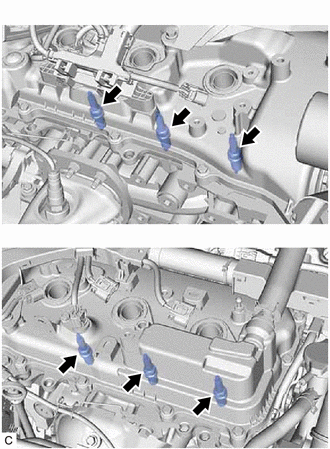

(a) Remove the 6 spark plugs from the cylinder head sub-assembly and cylinder head LH.

NOTICE:

If a spark plug has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.
