REMOVAL CAUTION / NOTICE / HINT
The
necessary procedures (adjustment, calibration, initialization or
registration) that must be performed after parts are removed and
installed, or replaced during shift paddle switch (transmission shift
switch assembly) removal/installation are shown below. Necessary Procedures After Parts Removed/Installed/Replaced |
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link | |
*: When performing learning using the Techstream.
Click here  | |
Battery terminal is disconnected/reconnected |
Perform steering sensor zero point calibration |
Lane Departure Alert System (w/ Steering Control) |
| |
Pre-collision System | |
Intelligent Clearance Sonar System* | |
Lighting System (for Gasoline Model with Cornering Light) | |
Memorize steering angle neutral point |
Parking Assist Monitor System |
| |
Panoramic View Monitor System |
|
NOTICE:
- Do not remove/install the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
- Do not rotate the spiral cable with sensor sub-assembly without the
steering wheel assembly installed, with the battery connected and the
engine switch on (IG).
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
PROCEDURE 1. REMOVE STEERING WHEEL ASSEMBLY
Click here 2. REMOVE STEERING PAD SWITCH ASSEMBLY
Click here 3. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

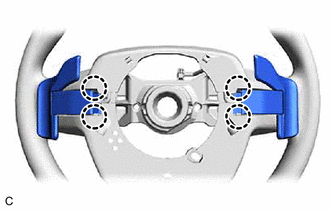

| (b) Disengage the 4 claws. | |
| (c)

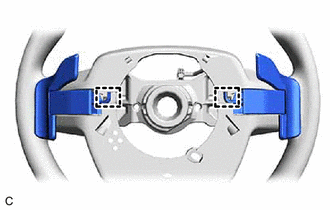

Disengage the 2 clamps to disconnect the shift paddle switch
(transmission shift switch assemby) from the steering wheel assembly. |
|

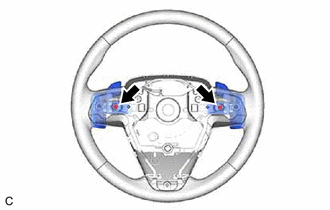

| (d)
Disconnect the No. 1 transmission shift switch assembly connector and
No. 2 transmission shift switch assembly connector to remove the No. 1
transmission shift switch assembly and No. 2 transmission shift switch
assembly from the No. 1 switch wire. |
 |
|

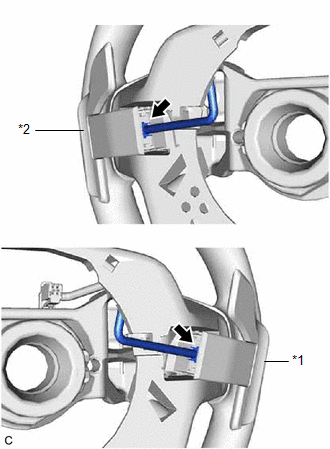

*1 | No. 1 Transmission Shift Switch Assembly | |
*2 | No. 2 Transmission Shift Switch Assembly | | |
4. REMOVE NO. 1 SWITCH WIRE HINT: Perform this procedure only when replacement of the No. 1 switch wire is necessary.

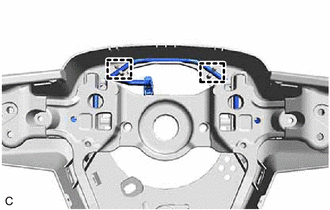

| (a) Disengage the 2 guides and remove the No. 1 switch wire from the steering wheel assembly. |
| |
