COMPONENTS

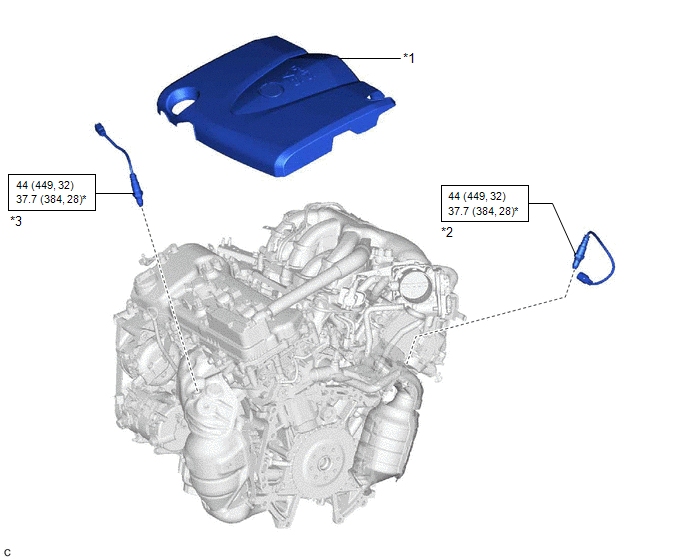

ILLUSTRATION

*1

V-BANK COVER SUB-ASSEMBLY

*2

AIR FUEL RATIO SENSOR (for Bank 1)

*3

AIR FUEL RATIO SENSOR (for Bank 2)

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST
    Air Fuel Ratio Sensor

    Inspection
