DESCRIPTION

Refer to DTC P001013.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P001100

Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1

Intake valve timing is stuck at a certain value when in the advance range (1 trip detection logic).
  • Valve timing
  • Cam timing oil control solenoid assembly (for intake camshaft of bank 1)
  • Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 1])
  • Camshaft timing gear assembly (bank 1)
  • Oil control valve filter (for intake camshaft of bank 1)
  • ECM

Comes on

DTC stored

SAE Code: P0011

P001200

Camshaft Position "A" - Timing Over-Retarded Bank 1

Intake valve timing is stuck at a certain value when in the retard range (1 trip detection logic).
  • Valve timing
  • Cam timing oil control solenoid assembly (for intake camshaft of bank 1)
  • Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 1])
  • Camshaft timing gear assembly (bank 1)
  • Oil control valve filter (for intake camshaft of bank 1)
  • ECM

Comes on

DTC stored

SAE Code: P0012

P002100

Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 2

Intake valve timing is stuck at a certain value when in the advance range (1 trip detection logic).
  • Valve timing
  • Cam timing oil control solenoid assembly (for intake camshaft of bank 2)
  • Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 2])
  • Camshaft timing gear assembly (bank 2)
  • Oil control valve filter (for intake camshaft of bank 2)
  • ECM

Comes on

DTC stored

SAE Code: P0021

P002200

Camshaft Position "A" - Timing Over-Retarded Bank 2

Intake valve timing is stuck at a certain value when in the retard range (1 trip detection logic).
  • Valve timing
  • Cam timing oil control solenoid assembly (for intake camshaft of bank 2)
  • Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft of bank 2])
  • Camshaft timing gear assembly (bank 2)
  • Oil control valve filter (for intake camshaft of bank 2)
  • ECM

Comes on

DTC stored

SAE Code: P0022

MONITOR DESCRIPTION

The ECM optimizes the intake valve timing using the Variable Valve Timing (VVT) system to control the intake camshaft. The VVT system includes the ECM, cam timing oil control solenoid assembly, camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) and camshaft timing gear assembly. The ECM sends a target duty-cycle control signal to the cam timing oil control solenoid assembly. The camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) is operated to control the oil pressure supplied to the camshaft timing gear assembly based on this signal. The camshaft timing gear assembly can advance or retard the intake camshaft.

If the difference between the target and actual intake valve timing is large, and changes in the actual intake valve timing are small, the ECM interprets this as the camshaft timing gear assembly stuck malfunction and stores a DTC.

  • Example:
  • A DTC is stored when the following conditions are met:
    1. It takes 5 seconds or more to change the valve timing by 5°CA.
    2. After the above condition is met, the cam timing oil control solenoid assembly is forcibly activated for 9.5 seconds.

These DTCs indicate that the camshaft timing gear assembly cannot operate properly due to a camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]) malfunction or the presence of foreign matter in the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

MONITOR STRATEGY

Related DTCs

P0011: Advanced camshaft timing (for intake camshaft of bank 1)

P0012: Retarded camshaft timing (for intake camshaft of bank 1)

P0021: Advanced camshaft timing (for intake camshaft of bank 2)

P0022: Retarded camshaft timing (for intake camshaft of bank 2)

Required Sensors/Components (Main)

Cam timing oil control solenoid assembly

Camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft])

Camshaft timing gear assembly

Required Sensors/Components (Related)

Crankshaft position sensor

VVT sensor

Engine coolant temperature sensor

Frequency of Operation

Continuous

Duration

Within 10 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

P0010, P0020 (VVT oil control solenoid bank1, 2)

P0016, P0018 (VVT system bank1, 2 - misalignment)

P0101, P0102, P0103 (Mass air flow meter)

P0117, P0118 (Engine coolant temperature sensor)

P0125 (Insufficient coolant temperature for closed loop fuel control)

P0335, P0337, P0338 (Crankshaft position sensor)

P0340, P0342, P0343, P0345, P0347, P0348 (Camshaft position sensor)

P0365, P0367, P0368, P0390, P0392, P0393 (Exhaust camshaft position sensor)

Battery voltage

11 V or higher

Engine speed

400 to 4000 rpm

Engine coolant temperature

75 to 100°C (167 to 212°F)

TYPICAL MALFUNCTION THRESHOLDS

P0011 and P0021: Advanced Camshaft Timing

Both of the following conditions are met

-

Deviation of actual valve timing and target valve timing

More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit.

Valve timing

No change at advanced valve timing
P0012 and P0022: Retarded Camshaft Timing

Both of the following conditions are met

-

Deviation of actual valve timing and target valve timing

More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit.

Valve timing

No change at retarded valve timing

If the difference between the target and actual camshaft timing is greater than the specified value, the ECM operates the VVT actuator for 10 seconds by applying and releasing oil pressure. Then, the ECM monitors the camshaft timing change for 10 seconds.

MONITOR RESULT

Refer to detailed information in Checking Monitor Status.

Click here

P0011, P0012: Exhaust Gas Recirculation/VVT / IN VVT STUCK B1

Monitor ID

Test ID

Scaling

Unit

Description

$35

$81

Multiply by 0.01

Second

Forced movement of cam timing control actuator time
P0021, P0022: Exhaust Gas Recirculation/VVT / IN VVT STUCK B2

Monitor ID

Test ID

Scaling

Unit

Description

$36

$81

Multiply by 0.01

Second

Forced movement of cam timing control actuator time

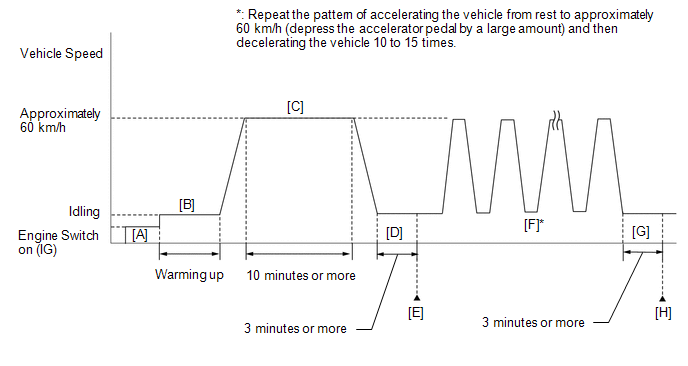

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the engine switch off and wait for at least 30 seconds.
  6. Turn the engine switch on (IG) [A].
  7. Turn the Techstream on.
  8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
  9. Drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

  10. Idle the engine for 3 minutes or more [D].
  11. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
  12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Input the DTC: P001100, P001200, P002100 or P002200.
  15. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [F] through [H].
    • [A] to [E]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
  16. Repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    Depress the accelerator pedal by a large amount.

  17. Idle the engine for 3 minutes or more [G].
  18. Enter the following menus: Powertrain / Engine / Trouble Codes [H].
  19. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  20. Check the DTC judgment result again.

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [H]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P001013.

Click here

CAUTION / NOTICE / HINT

Abnormal Bank

Timing Over Advanced

(Valve timing is out of specified range)

Timing Over Retarded

(Valve timing is out of specified range)

Bank 1

P001100

P001200

Bank 2

P002100

P002200
  • If DTC P001100 or P001200 is output, check the VVT system (for intake camshaft of bank 1) circuit.
  • If DTC P002100 or P002200 is output, check the VVT system (for intake camshaft of bank 2) circuit.
  • Bank 1 refers to the bank that includes the No. 1 cylinder*.

    *: The No. 1 cylinder is the cylinder which is farthest from the transaxle.

  • Bank 2 refers to the bank that does not include the No. 1 cylinder.
  • DTC P001100, P001200, P002100 or P002200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.
  • Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P001100, P001200, P002100 or P002200 is output

A

DTC P001100, P001200, P002100 or P002200 and other DTCs are output

B

HINT:

If any DTCs other than P001100, P001200, P002100 or P002200 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INTAKE VVT OCV DUTY RATIO)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Active Test / Control the Intake VVT OCV Duty Ratio Bank 1 or Control the Intake VVT OCV Duty Ratio Bank 2 / Data List / Intake VVT Change Angle Bank 1 or Intake VVT Change Angle Bank 2.

Powertrain > Engine > Active Test

Active Test Display

Control the Intake VVT OCV Duty Ratio Bank 1

Data List Display

Intake VVT Change Angle Bank 1
Powertrain > Engine > Active Test

Active Test Display

Control the Intake VVT OCV Duty Ratio Bank 2

Data List Display

Intake VVT Change Angle Bank 2

(e) Read the Data List while performing the Active Test with the engine idling.

OK:

Techstream Operation

Data List (Intake VVT Change Angle Bank 1 or Bank 2)

-100% to 100%

Varies by 70 DegFR or more
NG

GO TO STEP 4

OK

3.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Start the engine and warm it up.

(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(j) Enter the following menus: Powertrain / Engine / Trouble Codes.

(k) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001100, P001200, P002100 or P002200 is output

B

HINT:

DTC P001100, P001200, P002100 or P002200 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

A

CHECK FOR INTERMITTENT PROBLEMS

B

4.

INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT)

(a) Inspect the cam timing oil control solenoid assembly (for intake camshaft).

Click here

NG

GO TO STEP 10

OK

5.

INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR INTAKE CAMSHAFT])

(a) Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

  • for Bank 1: Click here
  • for Bank 2: Click here
NG

GO TO STEP 12

OK

6.

CHECK VALVE TIMING (CHECK FOR LOOSE TIMING CHAIN AND JUMPED TEETH)

(a) Remove the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.

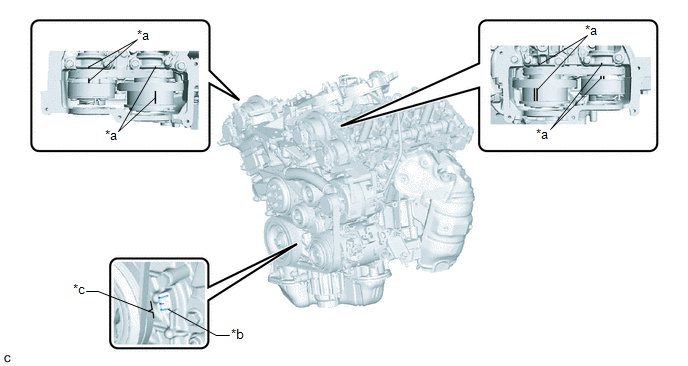

*a

Timing Mark

*b

TDC Timing Mark

*c

Groove

-

-

(b) Turn the crankshaft pulley and align its groove with the TDC timing mark of the timing chain cover.

(c) Check that the timing marks of the camshaft timing gear assemblies and camshaft timing exhaust gear assemblies are aligned with the timing marks of the bearing cap as shown in the illustration.

HINT:

If the timing marks are not as shown, turn the crankshaft one revolution clockwise.

OK:

Timing marks on camshaft timing gear assemblies and camshaft timing exhaust gear assemblies are aligned as shown in the illustration.

HINT:

If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.

NG

GO TO STEP 8

OK

7.

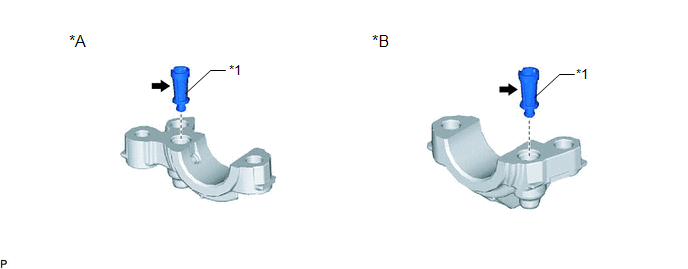

INSPECT OIL CONTROL VALVE FILTER (FOR INTAKE CAMSHAFT)

*A

for Intake Camshaft of Bank 1

*B

for Intake Camshaft of Bank 2

*1

Oil Control Valve Filter

-

-

(a) Remove the oil control valve filter (for intake camshaft of bank 1) or oil control valve filter (for intake camshaft of bank 2).

  • for Bank 1: Click here
  • for Bank 2: Click here

(b) Check that the filter is not clogged.

OK:

Filter is not clogged.

OK

GO TO STEP 14

NG

REPLACE OIL CONTROL VALVE FILTER (FOR INTAKE CAMSHAFT)

8.

CHECK ENGINE MECHANICAL SYSTEM

(a) Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

HINT:

Perform "Inspection After Repair" after repairing or replacing the engine mechanical system.

Click here

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
OK

9.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Start the engine and warm it up.

(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(j) Enter the following menus: Powertrain / Engine / Trouble Codes.

(k) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001100, P001200, P002100 or P002200 is output

B
A

CHECK FOR INTERMITTENT PROBLEMS

B

REPLACE ECM

10.

REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT)

(a) Replace the cam timing oil control solenoid assembly (for intake camshaft).

Click here

NEXT

11.

INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR INTAKE CAMSHAFT])

(a) Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

  • for Bank 1: Click here
  • for Bank 2: Click here
OK

GO TO STEP 13

NG

12.

REPLACE CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR INTAKE CAMSHAFT])

(a) Replace the camshaft timing gear bolt (camshaft timing oil control valve assembly [for intake camshaft]).

  • for Bank 1: Click here
  • for Bank 2: Click here
NEXT

13.

PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INTAKE VVT OCV DUTY RATIO)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Active Test / Control the Intake VVT OCV Duty Ratio Bank 1 or Control the Intake VVT OCV Duty Ratio Bank 2 / Data List / Intake VVT Change Angle Bank 1 or Intake VVT Change Angle Bank 2.

Powertrain > Engine > Active Test

Active Test Display

Control the Intake VVT OCV Duty Ratio Bank 1

Data List Display

Intake VVT Change Angle Bank 1
Powertrain > Engine > Active Test

Active Test Display

Control the Intake VVT OCV Duty Ratio Bank 2

Data List Display

Intake VVT Change Angle Bank 2

(e) Read the Data List while performing the Active Test with the engine idling.

OK:

Techstream Operation

Data List (Intake VVT Change Angle Bank 1 or Bank 2)

-100% to 100%

Varies by 70 DegFR or more
OK

END
NG

14.

REPLACE CAMSHAFT TIMING GEAR ASSEMBLY

(a) Replace the camshaft timing gear assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

Click here

NEXT

15.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001100, P001200, P002100 OR P002200)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Start the engine and warm it up.

(i) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(j) Enter the following menus: Powertrain / Engine / Trouble Codes.

(k) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001100, P001200, P002100 or P002200 is output

B
A

END
B

REPLACE ECM

    A Camshaft Position Actuator Bank 1 Circuit Open (P001013,P002013)

    Intake Air Temperature Sensor 1 Bank 1 Signal Stuck in Range (P01102A)

    See More:

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Front Power Seat Control System(for Hv Model With Memory): Wireless-linked Return Function does not Operate
    DESCRIPTION When a door is unlocked using the wireless unlock function, the certification ECU (smart key ECU assembly) sends a key ID signal to the main body ECU (multiplex network body ECU). When a door is unlocked using the entry unlock function, the certification ECU (smart key ECU assembly) send ...

    Toyota Avalon (XX50) 2019-2022 Owners Manual

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual

    © 2024 Copyright www.tavalon.net
    0.1054
