Gauges and meters

The units used on the meters may differ depending on the target region.

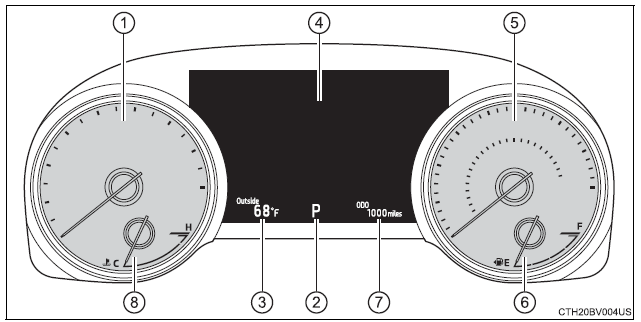

  1. Tachometer
    Displays the engine speed in revolutions per minute
  2. Shift position
  3. Outside temperature
    Displays the outside temperature within the range of -40ºF (-40ºC) to 122ºF (50ºC). Low outside temperature indicator comes on when the ambient temperature is 37ºF (3ºC) or lower.
  4. Multi-information display
    Presents the driver with a variety of vehicle data
    Displays warning messages in case of a malfunction
  5. Speedometer
  6. Fuel gauge
  7. Odometer and trip meter
  8. Engine coolant temperature gauge
    Displays the engine coolant temperature

Instrument panel light control

The brightness of the instrument panel lights can be adjusted.

The brightness of some of the interior lights will be changed when the brightness of the instrument panel lights is adjusted.

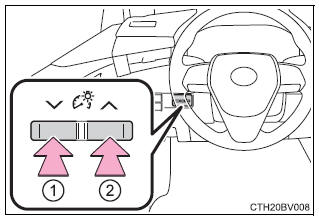

  1. Darker
  2. Brighter
    • The brightness of the instrument panel lights can be adjusted individually for day mode and night mode*.
    • If the brightness is adjusted when the surroundings are bright and the tail lights are on (day mode brightness adjustment), the brightness level of night mode will be adjusted at the same time.

Gauges and meters

*: Day mode and night mode

■The meters and display illuminate when The engine switch is in IGNITION ON mode.

■Brightness of the meters (day mode and night mode)

  • The brightness of the meters is changed between day mode and night mode.
    • Day mode: When the tail lights are off or when the tail lights are on but the surrounding area is bright
    • Night mode: When the tail lights are on and the surrounding area is dark
  • When in night mode, the brightness will be reduced slightly unless the meters are set to the maximum brightness level.

■Outside temperature display In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change:

  • When stopped, or driving at low speeds (less than 16 mph [25 km/h])
  • When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
  • When "- -" or "E" is displayed, the system may be malfunctioning.

    Take your vehicle to your Toyota dealer.

NOTICE

■To prevent damage to the engine and its components

  • Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
  • The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.
