Toyota Avalon Service & Repair Manual: Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during automatic transaxle fluid replacement are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of automatic transaxle fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE REAR ENGINE UNDER COVER LH

Click here

5. REMOVE FRONT FENDER APRON SEAL LH

Click here

6. REPLACE AUTOMATIC TRANSAXLE FLUID

(a) Lift the vehicle. [#1]

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure the tilt angle from the front to rear and side to side of the vehicle is within +/- 1°).

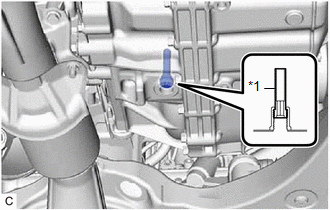

(b) Remove the refill plug and gasket from the automatic transaxle case sub-assembly. [#2]

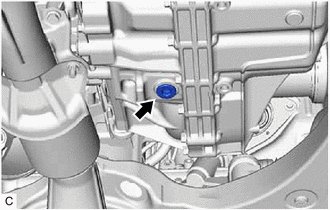

(c) Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing. [#3]

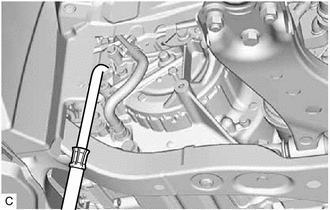

(d) Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the transaxle housing and drain the automatic transaxle fluid. [#4]

*1

No. 1 Transmission Oil Filler Tube

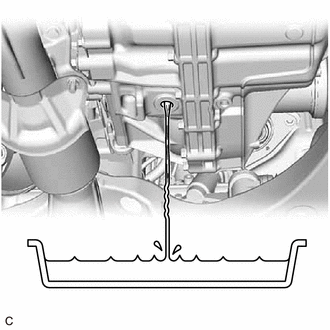

(e) Measure the amount of automatic transaxle fluid drained. [#5]

HINT:

Add the same amount of automatic transaxle fluid in step [#8].

(f) Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the transaxle housing. [#6]

Torque:

1.7 N·m {17 kgf·cm, 15 in·lbf}

(g) Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle housing. [#7]

HINT:

Reuse the old gasket as the overflow plug will be removed again to adjust the automatic transaxle fluid level.

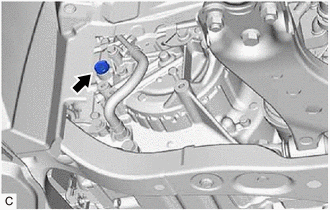

(h) Add automatic transaxle fluid to the refill hole using the same amount of automatic transaxle fluid drained in step [#5]. [#8]

NOTICE:

Use Toyota Genuine ATF WS.

(i) Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage. [#9]

HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

(j) Lower the vehicle. [#10]

(k) Start the engine. [#11]

(l) Slowly move the shift lever from P to D, and then back to P. [#12]

HINT:

  • Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.
  • Keep the shift lever in each position for approximately 3 seconds.

(m) Allow the engine to idle for 30 seconds to warm it up. [#13]

(n) Turn the engine switch off. [#14]

(o) Repeat steps [#1] to [#14].

(p) Repeat steps [#1] to [#10].

7. ADD SPECIFIED AMOUNT OF AUTOMATIC TRANSAXLE FLUID

Click here

8. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Using the Techstream)

Click here

9. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Not Using the Techstream)

Click here

10. ADJUST AUTOMATIC TRANSAXLE FLUID LEVEL

Click here

11. REBUILD WORK

Click here

12. INSTALL FRONT FENDER APRON SEAL LH

Click here

13. INSTALL REAR ENGINE UNDER COVER LH

Click here

14. INSTALL NO. 1 ENGINE UNDER COVER

Click here

15. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here

16. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here
