REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during PCV valve (ventilation valve sub-assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedures

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly
  • Replacement of EGR valve assembly
  • Gas leak from exhaust system is repaired

Inspection After Repair
  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE INTAKE MANIFOLD

Click here

2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

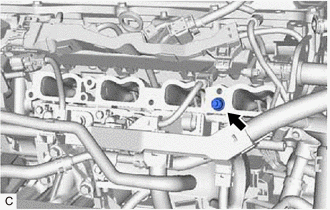

(a) Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head sub-assembly.
    On-vehicle Inspection

    Purge Valve
