PARTS LOCATION

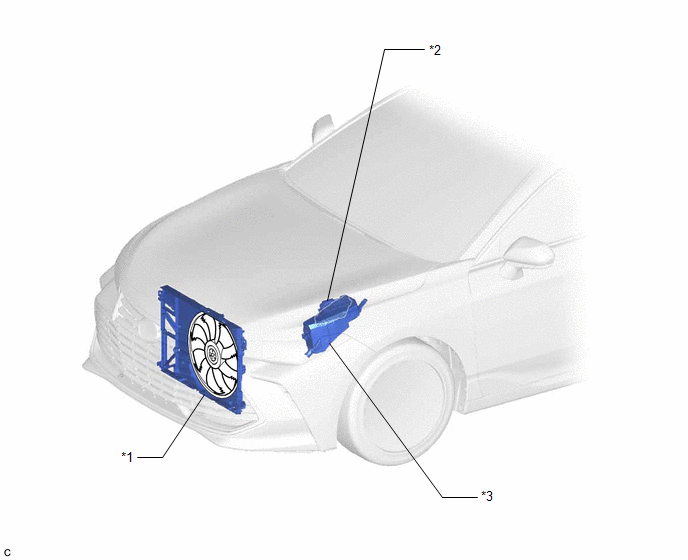

ILLUSTRATION

FAN WITH MOTOR ASSEMBLY

- COOLING FAN MOTOR

- COOLING FAN ECU

ECM

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- EFI-MAIN NO. 1 RELAY
