Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL ACTIVE NOISE CONTROL MICROPHONE

HINT:

Use the same procedure for all active noise control microphones.

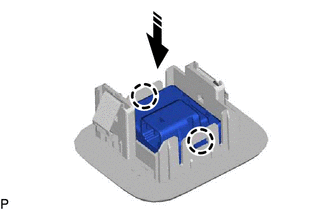

(a) Engage the 2 claws to install the active noise control microphone to the roof headlining holder cover as shown in the illustration.

Install in this Direction

2. INSTALL ACTIVE NOISE CONTROL MICROPHONE WITH COVER

HINT:

Use the same procedure for all active noise control microphone with covers.

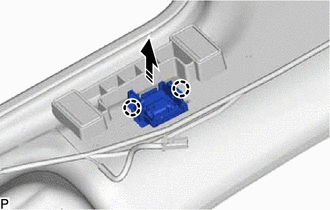

(a) Engage the 2 claws to install the active noise control microphone with cover as shown in the illustration.

Install in this Direction

(b) Connect the connector.

3. INSTALL ROOF HEADLINING ASSEMBLY
