REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during mass air flow meter sub-assembly removal/installation are shown below. Necessary Procedures After Parts Removed/Installed/Replaced
PROCEDURE 1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

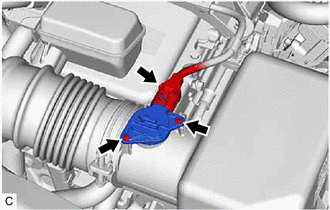

(b) Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly. NOTICE: If the mass air flow meter sub-assembly has been struck or dropped, replace it. |
