DESCRIPTION

Refer to DTC P012011.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P21352B

Throttle/Pedal Position Sensor/Switch "A"/"B" Voltage Correlation Signal Cross Coupled

The difference between the output voltage of VTA1 and VTA2 is 0.02 V or less for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Short between VTA1 and VTA2 circuits
  • Open in ETA circuit
  • Open in VCTA circuit
  • ECM

Comes on

DTC stored

SAE Code: P2135

MONITOR DESCRIPTION

VTA1 and VTA2 should never be close to the same voltage. If the difference between the value of VTA1 and VTA2 is 0.02 V or less for 2 seconds or more, the ECM will determine there is a short in the sensor circuit, illuminate the MIL and store this DTC.

MONITOR STRATEGY

Related DTCs

P2135: Throttle position sensor range check (correlation)

Required Sensors/Components (Main)

Throttle position sensor

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

2 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

None

Both of the following conditions are met

-

Auxiliary battery voltage

8 V or higher

Power switch

On (IG)

TYPICAL MALFUNCTION THRESHOLDS

Difference between VTA1 and VTA2 voltages

0.02 V or less

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.

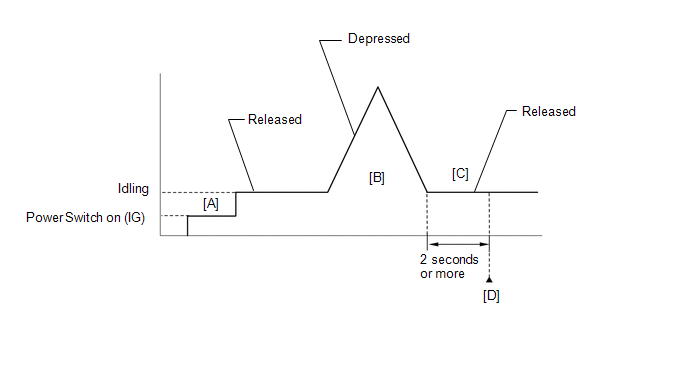

  6. Turn the power switch on (IG) [A].
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine.
  10. With the vehicle stationary, fully depress and release the accelerator pedal [B].

    HINT:

    During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, perform step [B] after charge control has completed.

  11. Idle the engine for 2 seconds or more [C].
  12. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
  13. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  15. Input the DTC: P21352B.
  16. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [D] again.
    • [A] to [D]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

FAIL-SAFE

When this DTC is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 7.5° throttle valve opening angle by the return spring. The ECM then adjusts the engine output, by controlling the fuel injection (intermittent fuel cut) and ignition timing, in accordance with the engine torque request signal sent from the hybrid vehicle control ECU assembly, to allow the vehicle to continue being driven at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the power switch is turned off.

WIRING DIAGRAM

Refer to DTC P012011.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

READ VALUE USING TECHSTREAM (THROTTLE POSITION SENSOR VOLTAGE)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage.

Powertrain > Engine > Data List

Tester Display

Throttle Position Sensor No.1 Voltage

Throttle Position Sensor No.2 Voltage

(e) Read the values displayed on the Techstream.

Result

Proceed to

Value of both Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage are less than 0.56 V

A

Value of both Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage are higher than 4.535 V

B

Value of both Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage are between 0.56 V and 4.535 V

C

B

GO TO STEP 4

C

GO TO STEP 6

A

2.

CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM)

(a) Disconnect the throttle body with motor assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C25-2 (VC) - C55-109 (VCTA)

Always

Below 1 Ω

C25-1 (VTA) - C55-108 (VTA1)

Always

Below 1 Ω

C25-3 (VTA2) - C55-87 (VTA2)

Always

Below 1 Ω

C25-4 (E2) - C55-110 (ETA)

Always

Below 1 Ω

C25-2 (VC) or C55-109 (VCTA) - Body ground and other terminals

Always

10 kΩ or higher

C25-1 (VTA) or C55-108 (VTA1) - Body ground and other terminals

Always

10 kΩ or higher

C25-3 (VTA2) or C55-87 (VTA2) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

INSPECT TERMINAL VOLTAGE (POWER SOURCE OF THROTTLE POSITION SENSOR)

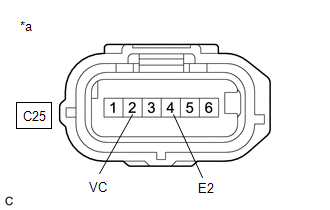

*a

Front view of wire harness connector

(to Throttle Body with Motor Assembly)

(a) Disconnect the throttle body with motor assembly connector.

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C25-2 (VC) - C25-4 (E2)

Power switch on (IG)

4.5 to 5.5 V

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

OK

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

NG

REPLACE ECM

4.

CHECK HARNESS AND CONNECTOR (GROUND CIRCUIT)

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the throttle body with motor assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C25-4 (E2) - Body ground

Always

Below 1 Ω

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

OK

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

NG

5.

CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM)

(a) Disconnect the throttle body with motor assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C25-2 (VC) - C55-109 (VCTA)

Always

Below 1 Ω

C25-1 (VTA) - C55-108 (VTA1)

Always

Below 1 Ω

C25-3 (VTA2) - C55-87 (VTA2)

Always

Below 1 Ω

C25-4 (E2) - C55-110 (ETA)

Always

Below 1 Ω

C25-2 (VC) or C55-109 (VCTA) - Other terminals

Always

10 kΩ or higher

C25-1 (VTA) or C55-108 (VTA1) - Other terminals

Always

10 kΩ or higher

C25-3 (VTA2) or C55-87 (VTA2) - Other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.

CHECK HARNESS AND CONNECTOR (SHORT CIRCUIT)

(a) Disconnect the throttle body with motor assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C25-1 (VTA) - C25-3 (VTA2)

Always

10 kΩ or higher

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

OK

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

NG

7.

CHECK HARNESS AND CONNECTOR (SHORT CIRCUIT)

(a) Disconnect the throttle body with motor assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C25-1 (VTA) - C25-3 (VTA2)

Always

10 kΩ or higher

HINT:

If the resistance changes when the ECM connector is disconnected, there is an internal short in the ECM.

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (THROTTLE POSITION SENSOR - ECM)
