PARTS LOCATION

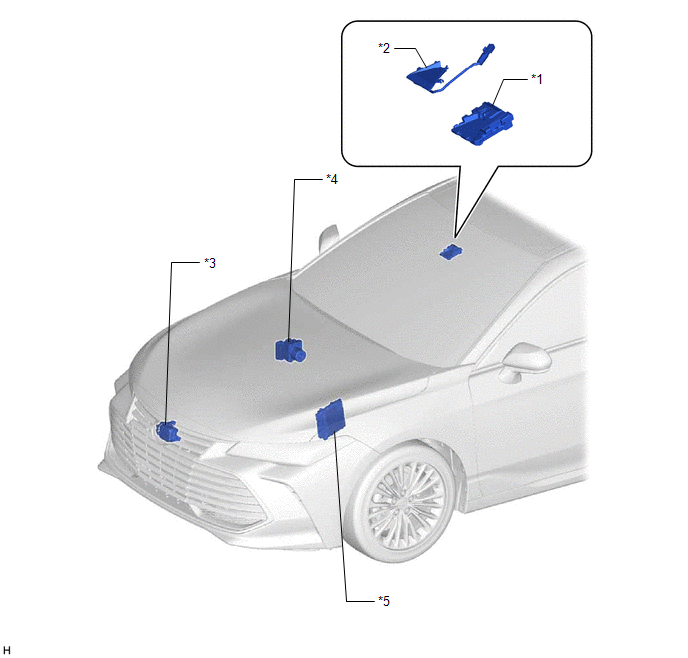

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

*3

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*4

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*5

ECM

-

-

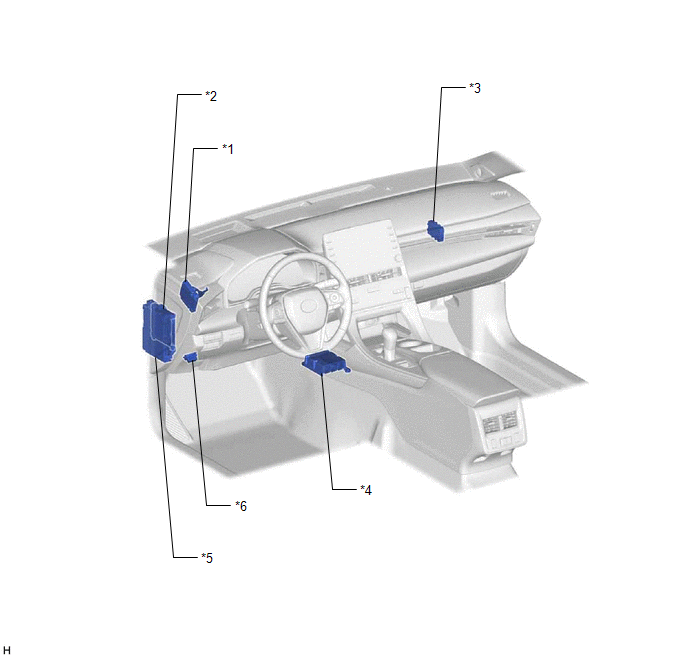

ILLUSTRATION

*1

DRIVING SUPPORT ECU ASSEMBLY

*2

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*3

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

*4

AIRBAG ECU ASSEMBLY

- YAW RATE SENSOR

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE

*6

DLC3
