Toyota Avalon Owners Manual: Fuel consumption information

Toyota Avalon Owners Manual / Instrument cluster / Fuel consumption information

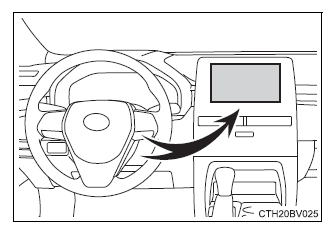

Fuel consumption information can be displayed on the audio system screen.

Fuel consumption information

Trip information

Entune Audio Plus (vehicles without Data Communication Module)

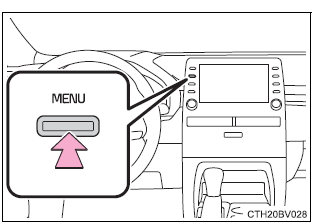

1. Press the "MENU" button.

2. Select "Info" on the "Menu" screen.

If the "History" screen is displayed, select "Trip Information".

Fuel consumption information

Entune Audio Plus (vehicles with Data Communication Module) or Entune Premium Audio

1. Press the "MENU" button.

2. Select "Info" on the "Menu" screen.

3. Select "ECO" on the "Information" screen.

If the "History" screen is displayed, select "Trip Information".

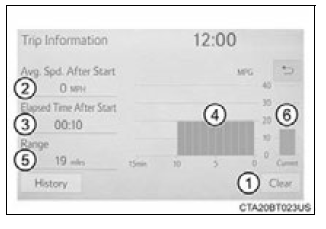

Fuel consumption information

  1. Resetting the consumption data
  2. Average vehicle speed since the engine was started
  3. Elapsed time since the engine was started
  4. Fuel consumption in the past 15 minutes
  5. Cruising range
  6. Current fuel consumption

Fuel consumption information

Average fuel consumption for the past 15 minutes is divided by color into past averages and averages attained since the engine switch was last turned to IGNITION ON mode. Use the displayed average fuel consumption as a reference.

This image is an example only.

History

Entune Audio Plus (vehicles without Data Communication Module)

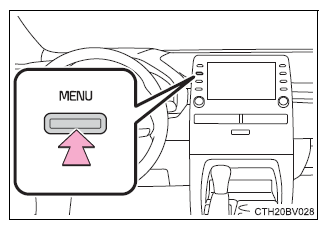

1. Press the "MENU" button.

2. Select "Info" on the "Menu" screen.

If the "Trip Information" screen is displayed, select "History".

Entune Audio Plus (vehicles with Data Communication Module) or Entune Premium Audio

1. Press the "MENU" button.

2. Select "Info" on the "Menu" screen.

3. Select "ECO" on the "Information" screen.

If the "Trip Information" screen is displayed, select "History".

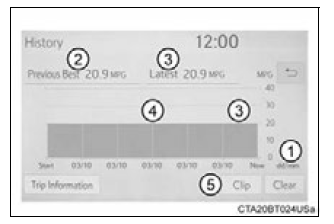

  1. Resetting the past record data
  2. Best recorded fuel consumption
  3. Current fuel economy
  4. Previous fuel consumption record

Fuel consumption information

Entune Audio Plus

Displays the daily average fuel consumption. (Instead of the date, "Trip 1" through "Trip 5" will be displayed.)

Entune Premium Audio

Displays the daily average fuel consumption.

  1. Updating the average fuel consumption data

The average fuel consumption history is divided by color into past averages and the average fuel consumption since the last updated.

Use the displayed average fuel consumption as a reference.

This image is an example only.

■Updating the past record data Update the average fuel consumption by selecting "Clip" to measure the current fuel consumption again.

■Resetting the data The fuel consumption data can be deleted by selecting "Clear".

■Cruising range Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.

This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.
