Toyota Avalon Service & Repair Manual: Lost Communication with Meter (B1324)

DESCRIPTION

This DTC is stored when a communication error occurs between the radio and display receiver assembly and combination meter assembly.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1324

Lost Communication with Meter

CAN reception error

  • Local bus communication line
  • Combination meter power source circuit
  • Radio and display receiver assembly
  • Combination meter assembly
  • Harness or connector

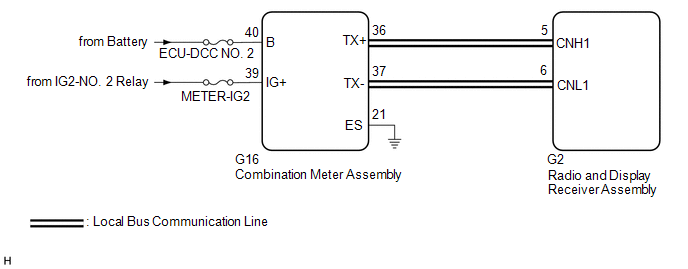

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

    Click here

  • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio and display receiver assembly may not operate normally.
  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY POWER SOURCE)

(a) Disconnect the G16 combination meter assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G16-21 (ES) - Body ground

Always

Below 1 Ω

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G16-40 (B) - Body ground

Always

11 to 14 V

G16-39 (IG+) - Body ground

Engine switch on (IG)

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK HARNESS AND CONNECTOR

(a) Disconnect the cable from the negative (-) battery terminal.

(b) Disconnect the G16 combination meter assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G16-36 (TX+) - G16-37 (TX-)

Cable disconnected from negative (-) battery terminal

108 to 132 Ω

OK

REPLACE COMBINATION METER ASSEMBLY

NG

3.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)

(a) Disconnect the G2 radio and display receiver assembly connector.

(b) Disconnect the G16 combination meter assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G2-5 (CNH1) - G16-36 (TX+)

Always

Below 1 Ω

G2-6 (CNL1) - G16-37 (TX-)

Always

Below 1 Ω

G2-5 (CNH1) or G16-36 (TX+) - Body ground

Always

10 kΩ or higher

G2-6 (CNL1) or G16-37 (TX-) - Body ground

Always

10 kΩ or higher

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
