COMPONENTS

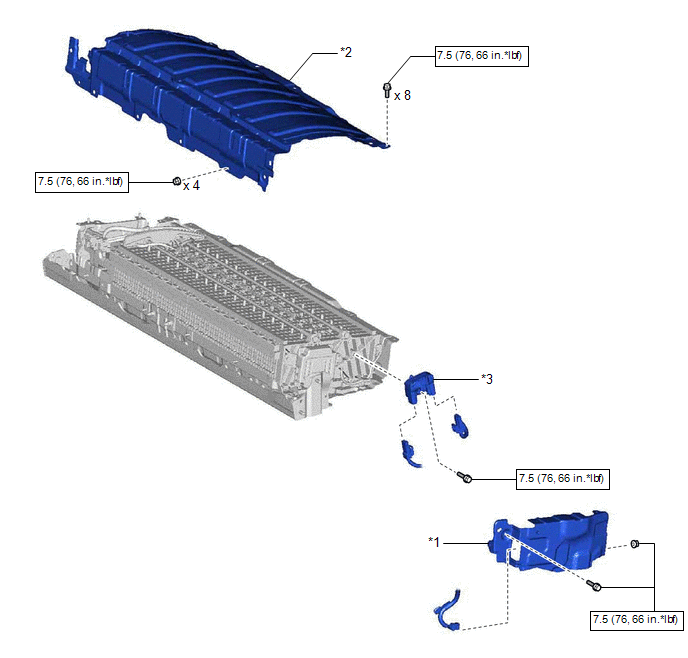

ILLUSTRATION

*1

NO. 1 HV BATTERY SHIELD PANEL

*2

UPPER HV BATTERY COVER SUB-ASSEMBLY

*3

HYBRID BATTERY TERMINAL BLOCK

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
