Toyota Avalon Service & Repair Manual: Speaker Circuit

DESCRIPTION

for 8 Speakers
  • If there is a short in a speaker circuit, the radio and display receiver assembly detects it and stops output to the speakers.

    Thus sound cannot be heard from the speakers even if there is no malfunction in the radio and display receiver assembly, DCM (telematics transceiver)* or speakers.

for 14 Speakers
  • If there is a short in a speaker circuit, the stereo component amplifier assembly detects it and stops output to the speakers.

    Thus sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assembly, DCM (telematics transceiver) or speakers.

  • *: w/ Manual (SOS) Switch

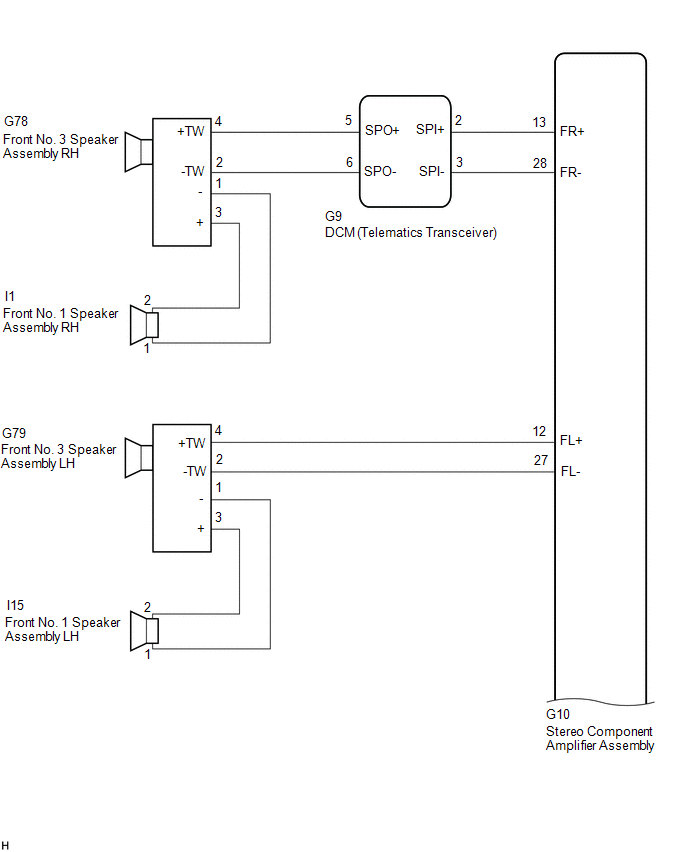

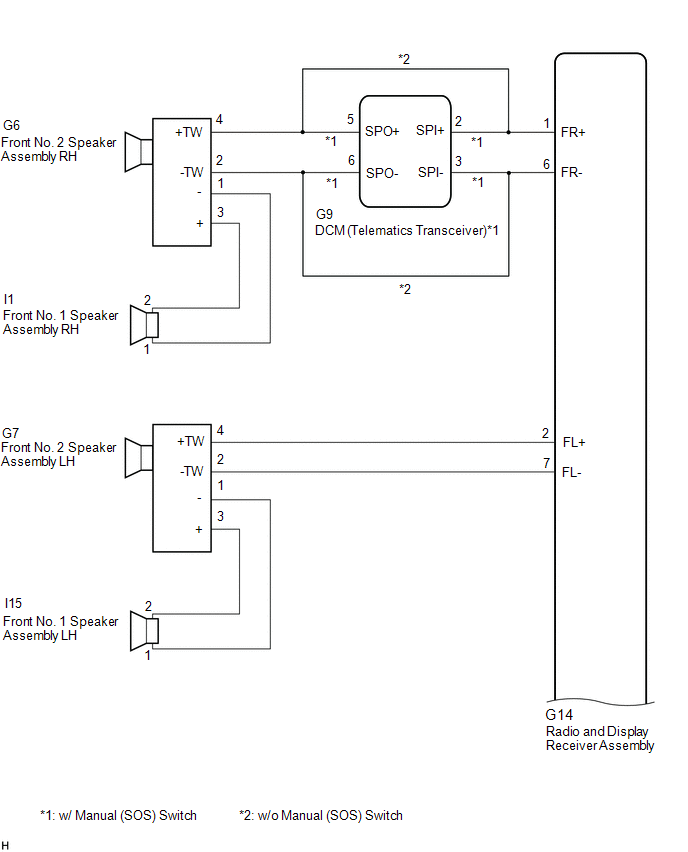

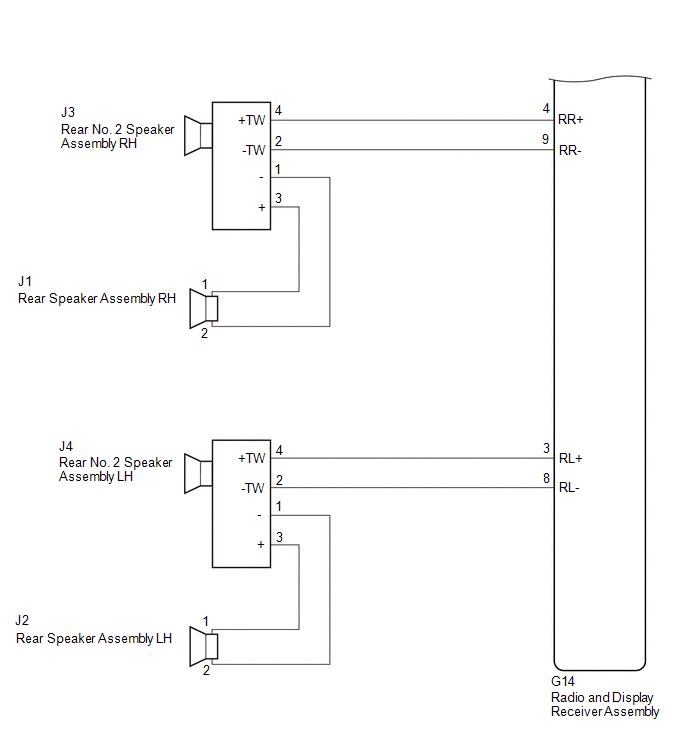

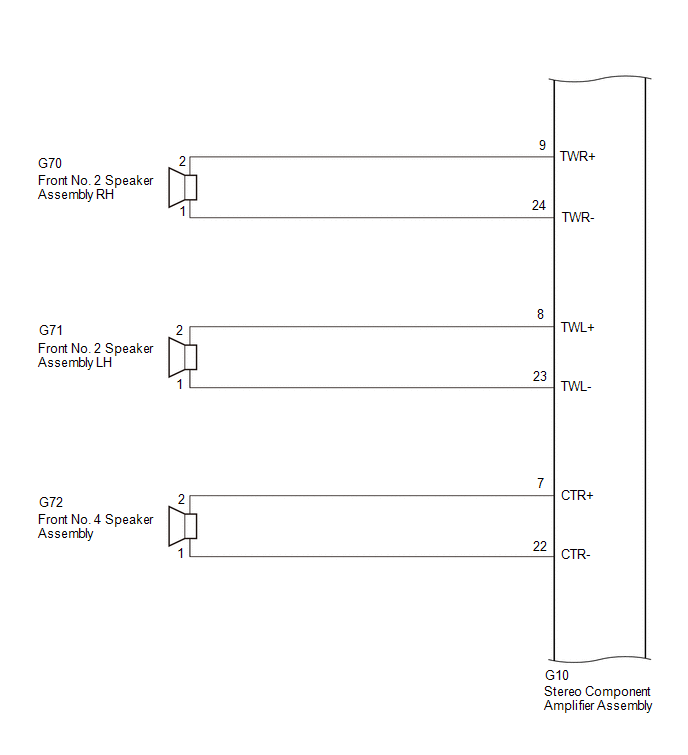

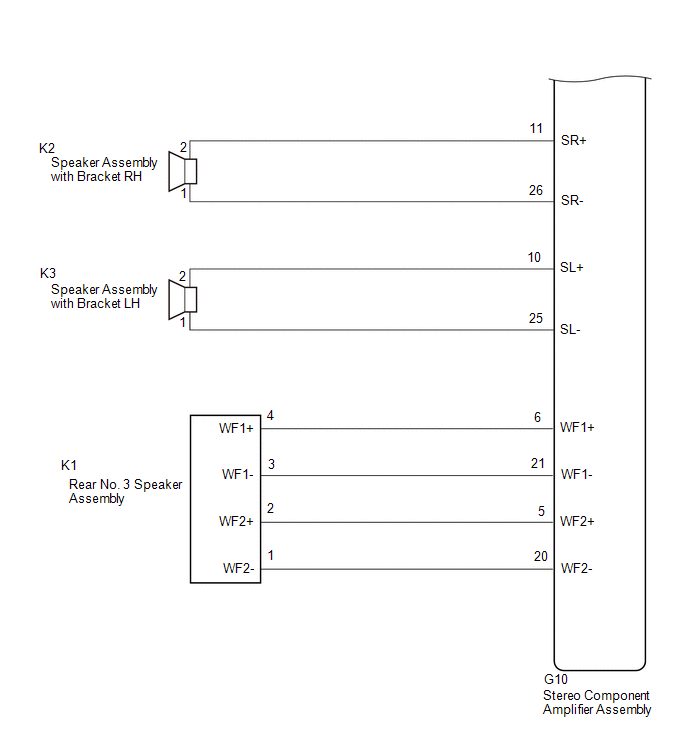

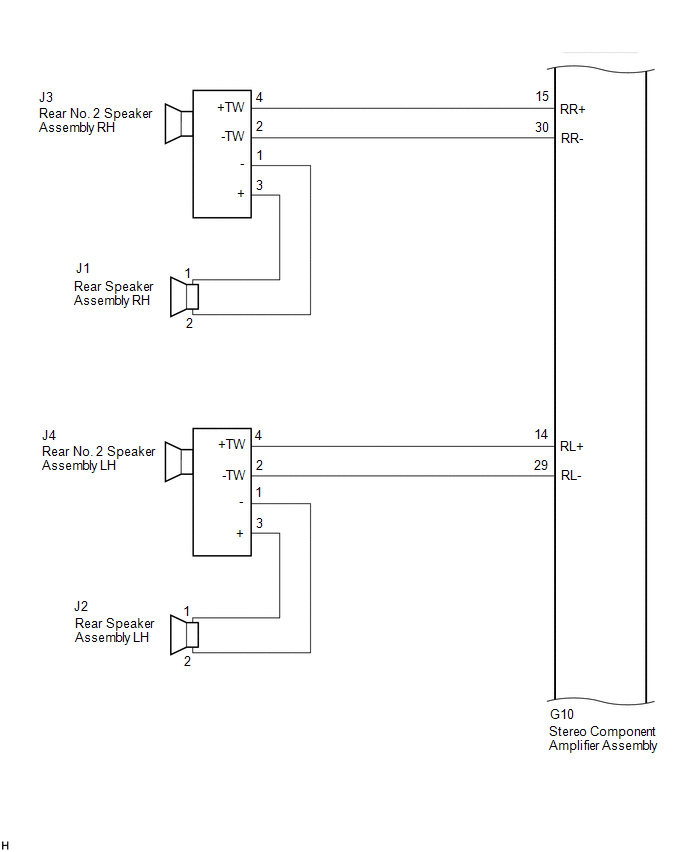

WIRING DIAGRAM

for 8 Speakers for 14 Speakers

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

    Click here

  • Before replacing the DCM (telematics transceiver), refer to Registration.

    Click here

PROCEDURE

1.

CHECK MODEL

(a) Choose the model to be inspected.

Result

Proceed to

for 8 Speakers

A

for 14 Speakers

B

B

GO TO STEP 13

A

2.

CHECK SPEAKER (OPERATION CHECK)

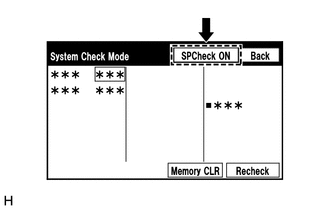

(a) Enter the "System Check Mode" screen. Refer to Check Speaker in Operation Check.

Click here

(b) Perform the operation check above and determine the speaker that is not operating.

Not Operating Speaker

Proceed to

Front No. 1 speaker assembly or front No. 2 speaker assembly

(w/ Manual (SOS) Switch)

A

Front No. 1 speaker assembly or front No. 2 speaker assembly

(w/o Manual (SOS) Switch)

B

Rear speaker assembly or rear No. 2 speaker assembly

C

HINT:

If sound cannot be heard from any speaker, inspect all of them.

B

GO TO STEP 7

C

GO TO STEP 10

A

3.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - FRONT NO. 2 SPEAKER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))

(a) Disconnect the G14 radio and display receiver assembly connector.

(b) Disconnect the I1 and I15 front No. 1 speaker assembly connectors.

(c) Disconnect the G6 and G7 front No. 2 speaker assembly connectors.

(d) Disconnect the G9 DCM (telematics transceiver) connector.

(e) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G14-1 (FR+) - G9-2 (SPI+)

Always

Below 1 Ω

G14-6 (FR-) - G9-3 (SPI-)

Always

Below 1 Ω

G9-5 (SPO+) - G6-4 (+TW)

Always

Below 1 Ω

G9-6 (SPO-) - G6-2 (-TW)

Always

Below 1 Ω

G14-2 (FL+) - G7-4 (+TW)

Always

Below 1 Ω

G14-7 (FL-) - G7-2 (-TW)

Always

Below 1 Ω

I1-2 - G6-3 (+)

Always

Below 1 Ω

I1-1 - G6-1 (-)

Always

Below 1 Ω

I15-2 - G7-3 (+)

Always

Below 1 Ω

I15-1 - G7-1 (-)

Always

Below 1 Ω

G14-1 (FR+) or G9-2 (SPI+) - Body ground

Always

10 kΩ or higher

G14-6 (FR-) or G9-3 (SPI-) - Body ground

Always

10 kΩ or higher

G9-5 (SPO+) or G6-4 (+TW) - Body ground

Always

10 kΩ or higher

G9-6 (SPO-) or G6-2 (-TW) - Body ground

Always

10 kΩ or higher

G14-2 (FL+) or G7-4 (+TW) - Body ground

Always

10 kΩ or higher

G14-7 (FL-) or G7-2 (-TW) - Body ground

Always

10 kΩ or higher

I1-2 or G6-3 (+) - Body ground

Always

10 kΩ or higher

I1-1 or G6-1 (-) - Body ground

Always

10 kΩ or higher

I15-2 or G7-3 (+) - Body ground

Always

10 kΩ or higher

I15-1 or G7-1 (-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

(a) Remove the front No. 1 speaker assembly.

Click here

(b) Inspect the front No. 1 speaker assembly.

Click here

NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

OK

5.

INSPECT DCM (TELEMATICS TRANSCEIVER)

(a) Remove the DCM (telematics transceiver).

Click here

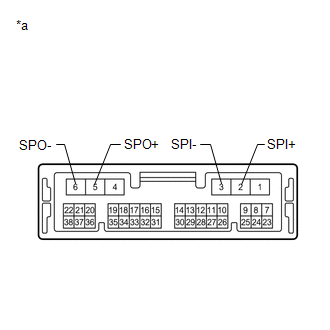

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

2 (SPI+) - 5 (SPO+)

Always

Below 1 Ω

3 (SPI-) - 6 (SPO-)

Always

Below 1 Ω

2 (SPI+) - 3 (SPI-)

Always

10 kΩ or higher

5 (SPO+) - 6 (SPO-)

Always

10 kΩ or higher

2 (SPI+) or 5 (SPO+) - Body ground

Always

10 kΩ or higher

3 (SPI-) or 6 (SPO-) - Body ground

Always

10 kΩ or higher

*a

Component without harness connected

(DCM (Telematics Transceiver))

NG

REPLACE DCM (TELEMATICS TRANSCEIVER)

OK

6.

REPLACE FRONT NO. 2 SPEAKER ASSEMBLY

(a) Remove the front No. 2 speaker assembly.

Click here

(b) Inspect the front No. 2 speaker assembly.

Click here

OK:

Malfunction disappears.

OK

END

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

7.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - FRONT NO. 2 SPEAKER ASSEMBLY)

(a) Disconnect the G14 radio and display receiver assembly connector.

(b) Disconnect the I1 and I15 front No. 1 speaker assembly connectors.

(c) Disconnect the G6 and G7 front No. 2 speaker assembly connectors.

(d) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G14-1 (FR+) - G6-4 (+TW)

Always

Below 1 Ω

G14-6 (FR-) - G6-2 (-TW)

Always

Below 1 Ω

G14-2 (FL+) - G7-4 (+TW)

Always

Below 1 Ω

G14-7 (FL-) - G7-2 (-TW)

Always

Below 1 Ω

I1-2 - G6-3 (+)

Always

Below 1 Ω

I1-1 - G6-1 (-)

Always

Below 1 Ω

I15-2 - G7-3 (+)

Always

Below 1 Ω

I15-1 - G7-1 (-)

Always

Below 1 Ω

G14-1 (FR+) or G6-4 (+TW) - Body ground

Always

10 kΩ or higher

G14-6 (FR-) or G6-2 (-TW) - Body ground

Always

10 kΩ or higher

G14-2 (FL+) or G7-4 (+TW) - Body ground

Always

10 kΩ or higher

G14-7 (FL-) or G7-2 (-TW) - Body ground

Always

10 kΩ or higher

I1-2 or G6-3 (+) - Body ground

Always

10 kΩ or higher

I1-1 or G6-1 (-) - Body ground

Always

10 kΩ or higher

I15-2 or G7-3 (+) - Body ground

Always

10 kΩ or higher

I15-1 or G7-1 (-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

8.

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

(a) Remove the front No. 1 speaker assembly.

Click here

(b) Inspect the front No. 1 speaker assembly.

Click here

NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

OK

9.

REPLACE FRONT NO. 2 SPEAKER ASSEMBLY

(a) Remove the front No. 2 speaker assembly.

Click here

(b) Inspect the front No. 2 speaker assembly.

Click here

OK:

Malfunction disappears.

OK

END

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

10.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - REAR SPEAKER ASSEMBLY - REAR NO. 2 SPEAKER ASSEMBLY)

(a) Disconnect the G14 radio and display receiver assembly connector.

(b) Disconnect the J1 and J2 rear speaker assembly connectors.

(c) Disconnect the J3 and J4 rear No. 2 speaker assembly connectors.

(d) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G14-4 (RR+) - J3-4 (+TW)

Always

Below 1 Ω

G14-9 (RR-) - J3-2 (-TW)

Always

Below 1 Ω

G14-3 (RL+) - J4-4 (+TW)

Always

Below 1 Ω

G14-8 (RL-) - J4-2 (-TW)

Always

Below 1 Ω

J1-1 - J3-3 (+)

Always

Below 1 Ω

J1-2 - J3-1 (-)

Always

Below 1 Ω

J2-1 - J4-3 (+)

Always

Below 1 Ω

J2-2 - J4-1 (-)

Always

Below 1 Ω

G14-4 (RR+) or J3-4 (+TW) - Body ground

Always

10 kΩ or higher

G14-9 (RR-) or J3-2 (-TW) - Body ground

Always

10 kΩ or higher

G14-3 (RL+) or J4-4 (+TW) - Body ground

Always

10 kΩ or higher

G14-8 (RL-) or J4-2 (-TW) - Body ground

Always

10 kΩ or higher

J1-1 or J3-3 (+) - Body ground

Always

10 kΩ or higher

J1-2 or J3-1 (-) - Body ground

Always

10 kΩ or higher

J2-1 or J4-3 (+) - Body ground

Always

10 kΩ or higher

J2-2 or J4-1 (-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

11.

INSPECT REAR SPEAKER ASSEMBLY

(a) Remove the rear speaker assembly.

Click here

(b) Inspect the rear speaker assembly.

Click here

NG

REPLACE REAR SPEAKER ASSEMBLY

OK

12.

REPLACE REAR NO. 2 SPEAKER ASSEMBLY

(a) Remove the rear No. 2 speaker assembly.

Click here

(b) Inspect the rear No. 2 speaker assembly.

Click here

OK:

Malfunction disappears.

OK

END

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

13.

CHECK SPEAKER (OPERATION CHECK)

(a) Enter the "System Check Mode" screen. Refer to Check Speaker in Operation Check.

Click here

(b) Perform the operation check above and determine the speaker that is not operating.

Not Operating Speaker

Proceed to

Front No. 1 speaker assembly or front No. 3 speaker assembly

A

Front No. 2 speaker assembly

B

Front No. 4 speaker assembly

C

Rear speaker assembly or rear No. 2 speaker assembly

D

Speaker assembly with bracket

E

Rear No. 3 speaker assembly

F

HINT:

If sound cannot be heard from any speaker, inspect all of them.

B

GO TO STEP 18

C

GO TO STEP 20

D

GO TO STEP 22

E

GO TO STEP 25

F

GO TO STEP 27

A

14.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - FRONT NO. 3 SPEAKER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))

(a) Disconnect the G10 stereo component amplifier assembly connector.

(b) Disconnect the I1 and I15 front No. 1 speaker assembly connectors.

(c) Disconnect the G78 and G79 front No. 3 speaker assembly connectors.

(d) Disconnect the G9 DCM (telematics transceiver) connector.

(e) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G10-13 (FR+) - G9-2 (SPI+)

Always

Below 1 Ω

G10-28 (FR-) - G9-3 (SPI-)

Always

Below 1 Ω

G9-5 (SPO+) - G78-4 (+TW)

Always

Below 1 Ω

G9-6 (SPO-) - G78-2 (-TW)

Always

Below 1 Ω

G10-12 (FL+) - G79-4 (+TW)

Always

Below 1 Ω

G10-27 (FL-) - G79-2 (-TW)

Always

Below 1 Ω

I1-2 - G78-3 (+)

Always

Below 1 Ω

I1-1 - G78-1 (-)

Always

Below 1 Ω

I15-2 - G79-3 (+)

Always

Below 1 Ω

I15-1 - G79-1 (-)

Always

Below 1 Ω

G10-13 (FR+) or G9-2 (SPI+) - Body ground

Always

10 kΩ or higher

G10-28 (FR-) or G9-3 (SPI-) - Body ground

Always

10 kΩ or higher

G9-5 (SPO+) or G78-4 (+TW) - Body ground

Always

10 kΩ or higher

G9-6 (SPO-) or G78-2 (-TW) - Body ground

Always

10 kΩ or higher

G10-12 (FL+) or G79-4 (+TW) - Body ground

Always

10 kΩ or higher

G10-27 (FL-) or G79-2 (-TW) - Body ground

Always

10 kΩ or higher

I1-2 or G78-3 (+) - Body ground

Always

10 kΩ or higher

I1-1 or G78-1 (-) - Body ground

Always

10 kΩ or higher

I15-2 or G79-3 (+) - Body ground

Always

10 kΩ or higher

I15-1 or G79-1 (-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

15.

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

(a) Remove the front No. 1 speaker assembly.

Click here

(b) Inspect the front No. 1 speaker assembly.

Click here

NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

OK

16.

INSPECT DCM (TELEMATICS TRANSCEIVER)

(a) Remove the DCM (telematics transceiver).

Click here

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

2 (SPI+) - 5 (SPO+)

Always

Below 1 Ω

3 (SPI-) - 6 (SPO-)

Always

Below 1 Ω

2 (SPI+) - 3 (SPI-)

Always

10 kΩ or higher

5 (SPO+) - 6 (SPO-)

Always

10 kΩ or higher

2 (SPI+) or 5 (SPO+) - Body ground

Always

10 kΩ or higher

3 (SPI-) or 6 (SPO-) - Body ground

Always

10 kΩ or higher

*a

Component without harness connected

(DCM (Telematics Transceiver))

NG

REPLACE DCM (TELEMATICS TRANSCEIVER)

OK

17.

REPLACE FRONT NO. 3 SPEAKER ASSEMBLY

(a) Remove the front No. 3 speaker assembly.

Click here

(b) Inspect the front No. 3 speaker assembly.

Click here

OK:

Malfunction disappears.

OK

END

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

18.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - FRONT NO. 2 SPEAKER ASSEMBLY)

(a) Disconnect the G10 stereo component amplifier assembly connector.

(b) Disconnect the G70 and G71 front No. 2 speaker assembly connectors.

(c) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G10-9 (TWR+) - G70-2

Always

Below 1 Ω

G10-24 (TWR-) - G70-1

Always

Below 1 Ω

G10-8 (TWL+) - G71-2

Always

Below 1 Ω

G10-23 (TWL-) - G71-1

Always

Below 1 Ω

G10-9 (TWR+) or G70-2 - Body ground

Always

10 kΩ or higher

G10-24 (TWR-) or G70-1 - Body ground

Always

10 kΩ or higher

G10-8 (TWL+) or G71-2 - Body ground

Always

10 kΩ or higher

G10-23 (TWL-) or G71-1 - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

19.

INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

(a) Remove the front No. 2 speaker assembly.

Click here

(b) Inspect the front No. 2 speaker assembly.

Click here

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPLACE FRONT NO. 2 SPEAKER ASSEMBLY

20.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - FRONT NO. 4 SPEAKER ASSEMBLY)

(a) Disconnect the G10 stereo component amplifier assembly connector.

(b) Disconnect the G72 front No. 4 speaker assembly connector.

(c) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G10-7 (CTR+) - G72-2

Always

Below 1 Ω

G10-22 (CTR-) - G72-1

Always

Below 1 Ω

G10-7 (CTR+) or G72-2 - Body ground

Always

10 kΩ or higher

G10-22 (CTR-) or G72-1 - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

21.

INSPECT FRONT NO. 4 SPEAKER ASSEMBLY

(a) Remove the front No. 4 speaker assembly.

Click here

(b) Inspect the front No. 4 speaker assembly.

Click here

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPLACE FRONT NO. 4 SPEAKER ASSEMBLY

22.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - REAR SPEAKER ASSEMBLY - REAR NO. 2 SPEAKER ASSEMBLY)

(a) Disconnect the G10 stereo component amplifier assembly connector.

(b) Disconnect the J1 and J2 rear speaker assembly connectors.

(c) Disconnect the J3 and J4 rear No. 2 speaker assembly connectors.

(d) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G10-15 (RR+) - J3-4 (+TW)

Always

Below 1 Ω

G10-30 (RR-) - J3-2 (-TW)

Always

Below 1 Ω

G10-14 (RL+) - J4-4 (+TW)

Always

Below 1 Ω

G10-29 (RL-) - J4-2 (-TW)

Always

Below 1 Ω

J1-1 - J3-3 (+)

Always

Below 1 Ω

J1-2 - J3-1 (-)

Always

Below 1 Ω

J2-1 - J4-3 (+)

Always

Below 1 Ω

J2-2 - J4-1 (-)

Always

Below 1 Ω

G10-15 (RR+) or J3-4 (+TW) - Body ground

Always

10 kΩ or higher

G10-30 (RR-) or J3-2 (-TW) - Body ground

Always

10 kΩ or higher

G10-14 (RL+) or J4-4 (+TW) - Body ground

Always

10 kΩ or higher

G10-29 (RL-) or J4-2 (-TW) - Body ground

Always

10 kΩ or higher

J1-1 or J3-3 (+) - Body ground

Always

10 kΩ or higher

J1-2 or J3-1 (-) - Body ground

Always

10 kΩ or higher

J2-1 or J4-3 (+) - Body ground

Always

10 kΩ or higher

J2-2 or J4-1 (-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

23.

INSPECT REAR SPEAKER ASSEMBLY

(a) Remove the rear speaker assembly.

Click here

(b) Inspect the rear speaker assembly.

Click here

NG

REPLACE REAR SPEAKER ASSEMBLY

OK

24.

REPLACE REAR NO. 2 SPEAKER ASSEMBLY

(a) Remove the rear No. 2 speaker assembly.

Click here

(b) Inspect the rear No. 2 speaker assembly.

Click here

OK:

Malfunction disappears.

OK

END

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

25.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - SPEAKER ASSEMBLY WITH BRACKET)

(a) Disconnect the G10 stereo component amplifier assembly connector.

(b) Disconnect the K2 and K3 speaker assembly with bracket connectors.

(c) Measure the resistance according to the value (s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G10-11 (SR+) - K2-2

Always

Below 1 Ω

G10-26 (SR-) - K2-1

Always

Below 1 Ω

G10-10 (SL+) - K3-2

Always

Below 1 Ω

G10-25 (SL-) - K3-1

Always

Below 1 Ω

G10-11 (SR+) or K2-2 - Body ground

Always

10 kΩ or higher

G10-26 (SR-) or K2-1 - Body ground

Always

10 kΩ or higher

G10-10 (SL+) or K3-2 - Body ground

Always

10 kΩ or higher

G10-25 (SL-) or K3-1 - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

26.

INSPECT SPEAKER ASSEMBLY WITH BRACKET

(a) Remove the speaker assembly with bracket.

Click here

(b) Inspect the speaker assembly with bracket.

Click here

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPLACE SPEAKER ASSEMBLY WITH BRACKET

27.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - REAR NO. 3 SPEAKER ASSEMBLY)

(a) Disconnect the G10 stereo component amplifier assembly connector.

(b) Disconnect the K1 rear No. 3 speaker assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G10-6 (WF1+) - K1-4 (WF1+)

Always

Below 1 Ω

G10-21 (WF1-) - K1-3 (WF1-)

Always

Below 1 Ω

G10-5 (WF2+) - K1-2 (WF2+)

Always

Below 1 Ω

G10-20 (WF2-) - K1-1 (WF2-)

Always

Below 1 Ω

G10-6 (WF1+) or K1-4 (WF1+) - Body ground

Always

10 kΩ or higher

G10-21 (WF1-) or K1-3 (WF1-) - Body ground

Always

10 kΩ or higher

G10-5 (WF2+) or K1-2 (WF2+) - Body ground

Always

10 kΩ or higher

G10-20 (WF2-) or K1-1 (WF2-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

28.

INSPECT REAR NO. 3 SPEAKER ASSEMBLY

(a) Remove the rear No. 3 speaker assembly.

Click here

(b) Inspect the rear No. 3 speaker assembly.

Click here

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPLACE REAR NO. 3 SPEAKER ASSEMBLY

    Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter

    Steering Pad Switch Circuit

    See More:

    Toyota Avalon Service & Repair Manual > Can Communication System(for Gasoline Model): Open in One Side of Bus 4 Branch Line
    DESCRIPTION When the CAN bus main lines are normal (no open, short to ground, short to +B or short between lines) and there is an ECU or sensor on the "Communication Bus Check" screen that is indicated as not communicating or whose connection status on the "Communication Bus Check" screen changes in ...

    Toyota Avalon Owners Manual

    Toyota Avalon Service & Repair Manual

    © 2020 Copyright www.tavalon.net
    0.0299
