Toyota Avalon Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

*A

for Gasoline Model

*B

w/ Seat Heater System

*1

SPARE WHEEL COVER ASSEMBLY

-

-

ILLUSTRATION

*A

for Gasoline Model

*B

w/ Seat Heater System

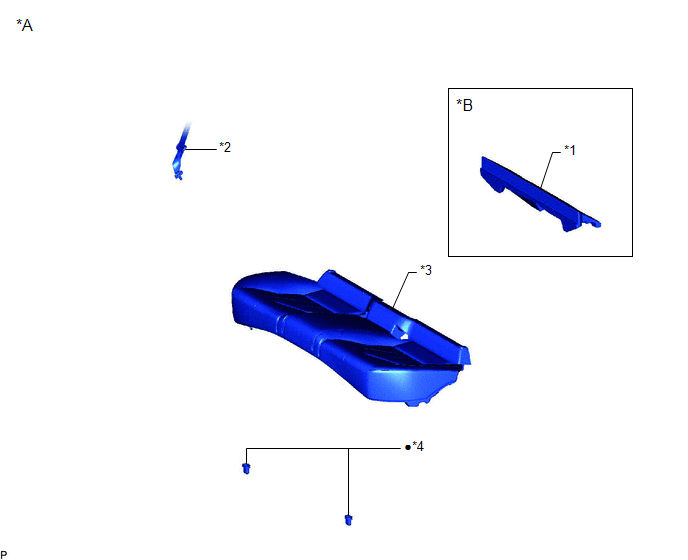

*1

LUGGAGE COMPARTMENT INNER TRIM PAD

*2

REAR CENTER SEAT OUTER BELT ASSEMBLY

*3

REAR SEAT CUSHION ASSEMBLY

*4

REAR SEAT CUSHION LOCK HOOK

Non-reusable part

-

-

ILLUSTRATION

*A

for Gasoline Model

*B

for HV Model

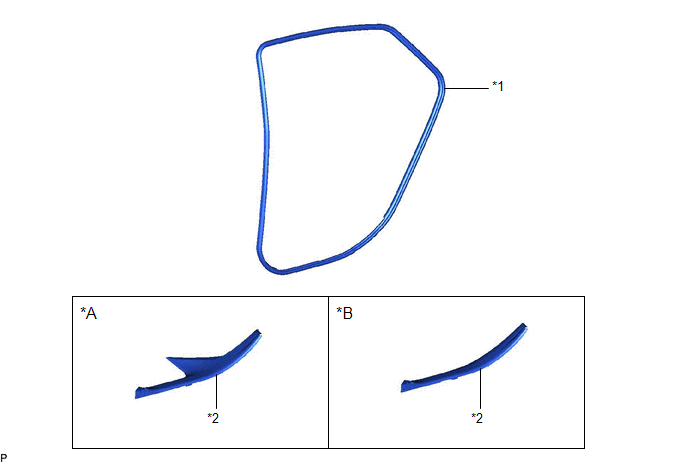

*1

REAR DOOR OPENING TRIM WEATHERSTRIP

*2

REAR DOOR SCUFF PLATE

    Rear Door Opening Trim Weatherstrip
