REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during thermistor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
*: Applies only for when removing and installing or replacing the television camera assembly.

Front television camera assembly, front bumper assembly or radiator grille
  • Television camera view adjustment
  • Television camera assembly optical axis adjustment (Back camera position setting)*

Panoramic View Monitor System

for Initialization

Calibration

Front bumper assembly
  • Measurement of ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intelligent Clearance Sonar System
  • Intuitive Parking Assist System

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

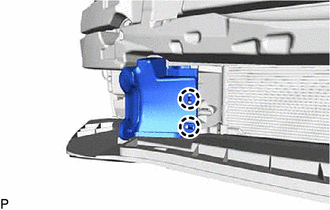

(a) Disengage the 2 claws to remove the front radiator side air guide plate RH.

3. REMOVE THERMISTOR ASSEMBLY

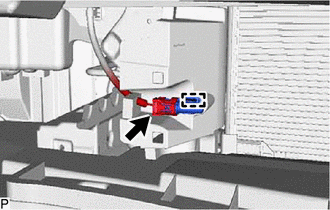

(a) Disengage the clamp.

(b) Disconnect the connector to remove the thermistor assembly.
