COMPONENTS

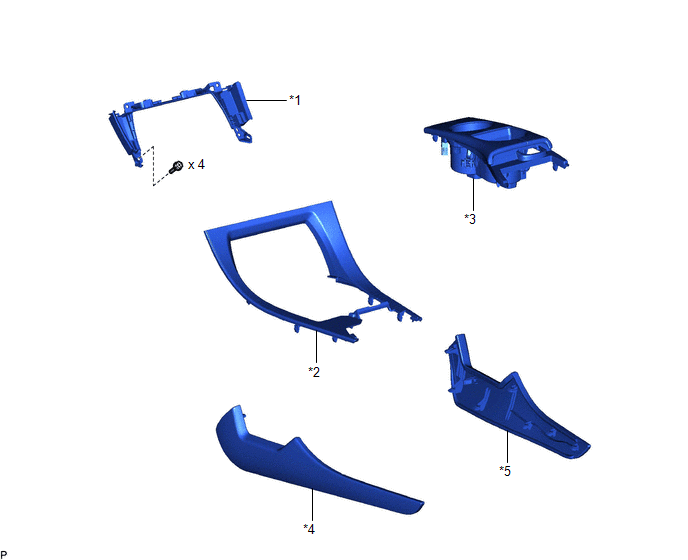

ILLUSTRATION

*1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

CONSOLE BOX POCKET SUB-ASSEMBLY

*3

FRONT CONSOLE UPPER PANEL GARNISH

*4

LOWER INSTRUMENT PANEL FINISH PANEL LH

*5

LOWER INSTRUMENT PANEL FINISH PANEL RH

-

-

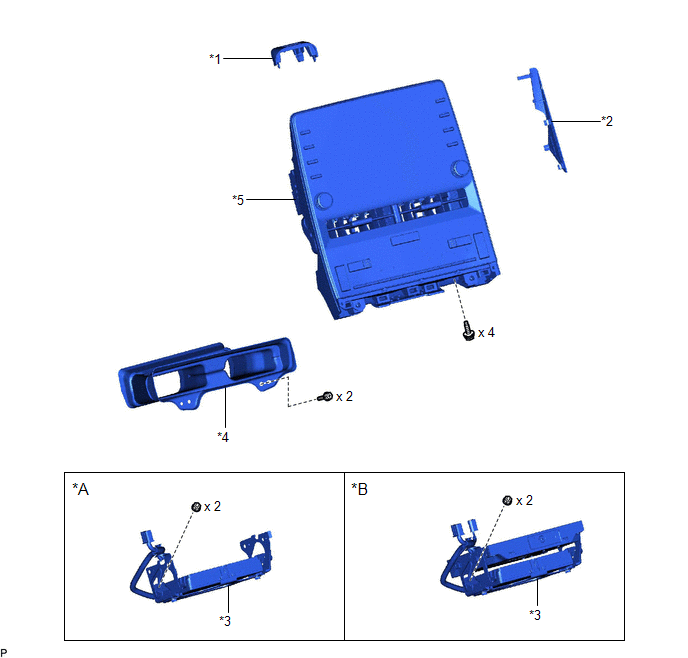

ILLUSTRATION

*A

w/o Navigation System

*B

w/ Navigation System

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*3

DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

*4

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*5

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

-

-

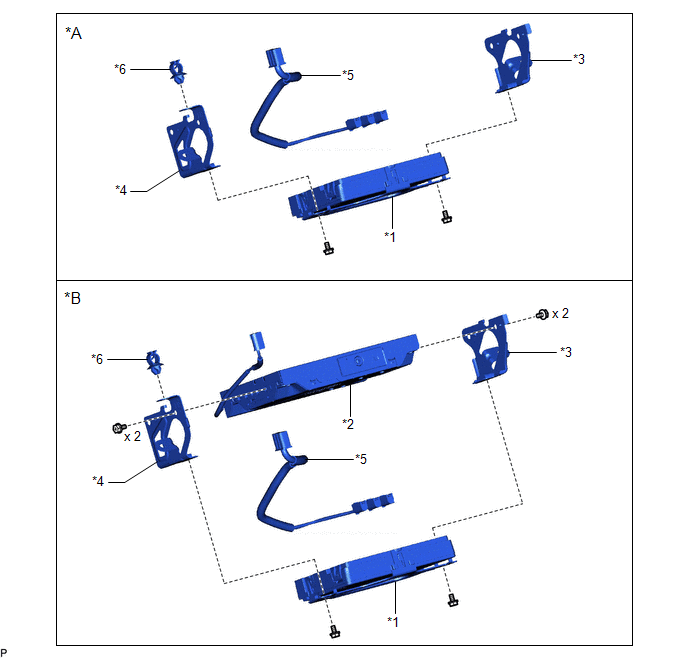

ILLUSTRATION

*A

w/o Navigation System

*B

w/ Navigation System

*1

DCM (TELEMATICS TRANSCEIVER) ASSEMBLY

*2

NAVIGATION ECU WITH ANTENNA CORD

*3

NO. 1 TELEPHONE BRACKET

*4

NO. 2 TELEPHONE BRACKET

*5

TELEPHONE AND GPS ANTENNA CORD

*6

WIRING HARNESS CLAMP

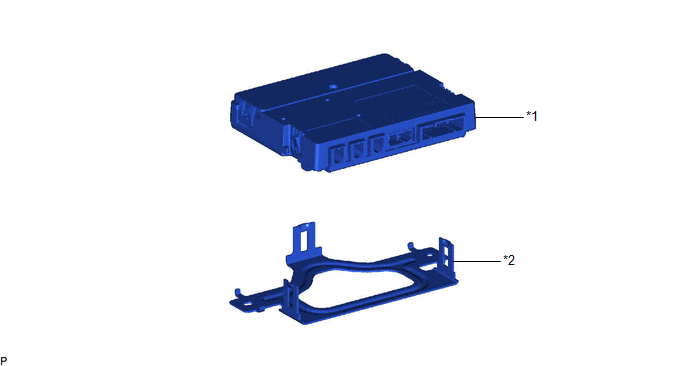

ILLUSTRATION

*1

DCM (TELEMATICS TRANSCEIVER)

*2

NO. 3 TELEPHONE BRACKET

    Dcm(telematics Transceiver)

    Installation
