Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Door Courtesy Light

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Interior / Lighting (int) / Door Courtesy Light

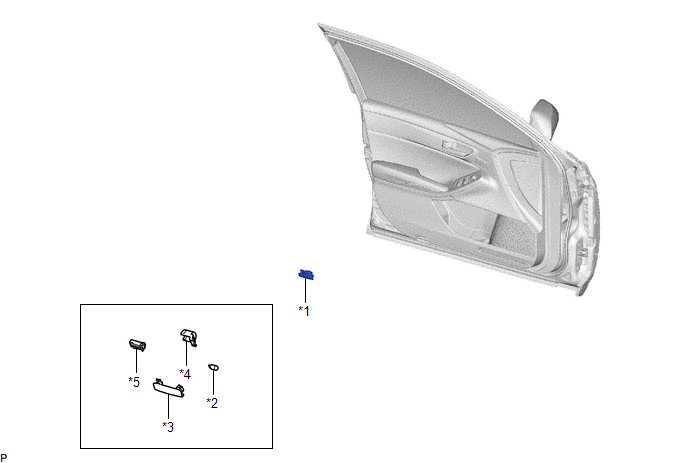

Components

COMPONENTS

ILLUSTRATION

*1

COURTESY LIGHT ASSEMBLY

*2

COURTESY LIGHT BULB

*3

COURTESY LIGHT LENS

*4

COURTESY LIGHT COVER

*5

COURTESY LIGHT HOUSING

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT COURTESY LIGHT ASSEMBLY

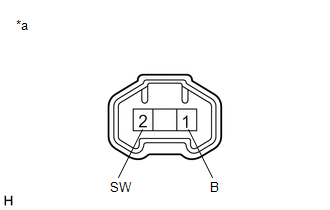

*a

Component without harness connected

(Courtesy Light Assembly)

(a) Apply auxiliary battery voltage to the courtesy light assembly and check that the light illuminates.

OK:

Measurement Condition

Specified Condition

Auxiliary battery positive (+) → 1 (B)

Auxiliary battery negative (-) → 2 (SW)

Door Courtesy light illuminates

If the result is not as specified, replace the bulb or courtesy light assembly.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL COURTESY LIGHT BULB

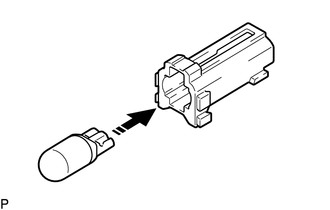

(a) Install the courtesy light bulb to the courtesy light housing as shown in the illustration.

Install in this Direction

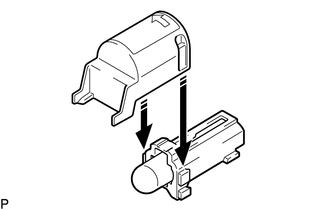

(b) Install the courtesy light cover to the courtesy light housing as shown in the illustration.

Install in this Direction

(c) Engage the claw to install the courtesy light housing with the courtesy light cover as shown in the illustration.

Install in this Direction

2. INSTALL COURTESY LIGHT ASSEMBLY

(a) Connect the connector.

(b) Engage the claw to install the courtesy light assembly.

*A

for LH Side

*B

for RH Side

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE COURTESY LIGHT ASSEMBLY

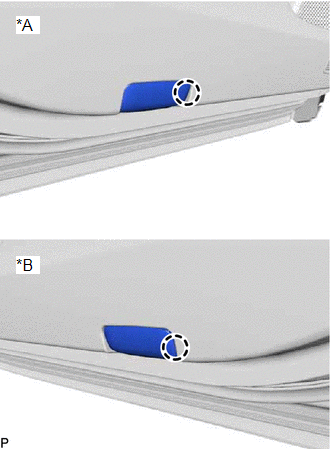

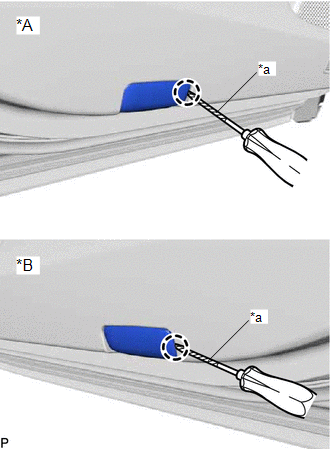

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

*A

for LH Side

*B

for RH Side

*a

Protective Tape

(b) Disconnect the connector to remove the courtesy light assembly.

2. REMOVE COURTESY LIGHT BULB

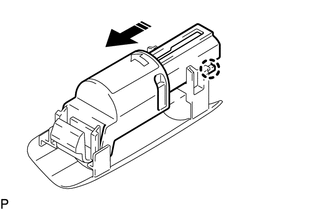

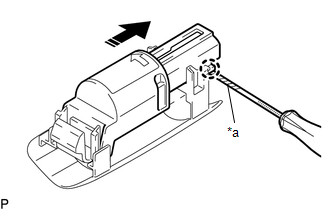

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the courtesy light housing with the courtesy light cover as shown in the illustration.

*a

Protective Tape

Remove in this Direction

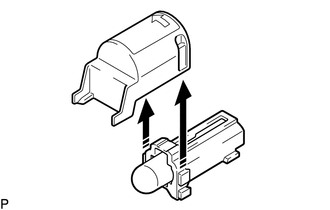

(b) Remove the courtesy light cover from the courtesy light housing as shown in the illustration.

Remove in this Direction

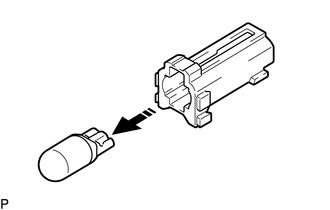

(c) Remove the courtesy light bulb from the courtesy light housing as shown in the illustration.

Remove in this Direction
    Door Courtesy Light Bulb

    Footwell Light(for Front Side)
