Toyota Avalon Service & Repair Manual: Components

COMPONENTS

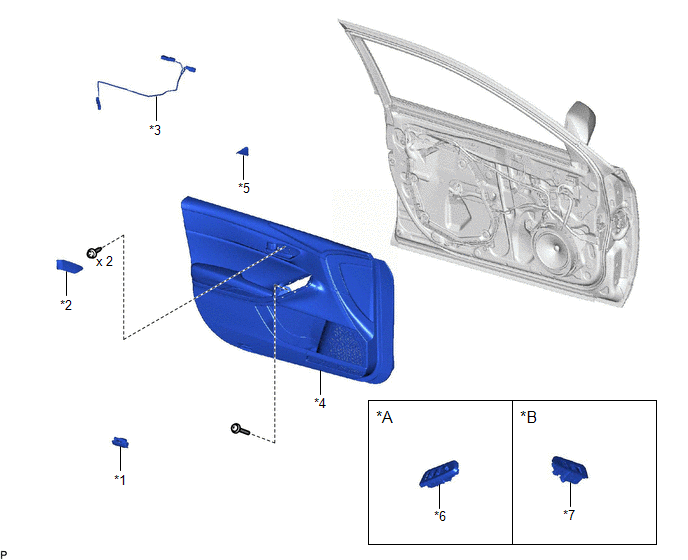

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*1

COURTESY LIGHT ASSEMBLY

*2

FRONT DOOR ARMREST COVER SUB-ASSEMBLY

*3

FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY

*4

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*5

FRONT DOOR TRIM POCKET COVER

*6

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*7

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

    Inside Handle Light

    Inspection
