Toyota Avalon Service & Repair Manual: Vanity Light Bulb

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT LENS HOLDER LH

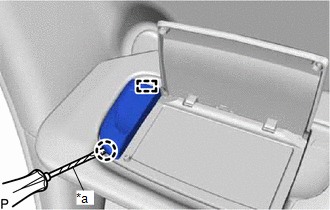

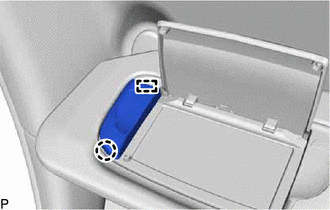

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide to remove the front lens holder LH.

*a

Protective Tape

2. REMOVE FRONT LENS HOLDER RH

HINT:

Use the same procedure as for the front lens holder LH.

3. REMOVE VANITY LIGHT BULB

(a) Remove the 2 vanity light bulbs from the visor assembly.

4. INSTALL VANITY LIGHT BULB

(a) Install the 2 vanity light bulbs to the visor assembly.

5. INSTALL FRONT LENS HOLDER LH

(a) Engage the guide and claw to install the front lens holder LH.

6. INSTALL FRONT LENS HOLDER RH

HINT:

Use the same procedure as for the front lens holder LH.
