ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT GARAGE DOOR OPENER
2. INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING HINT: Use the "HomeLink" tester and a tester transmitter for this test. First clear the customer transmitter codes, and then register the tester transmitter code. Click here (a) Check if the tester transmitter code was successfully registered. HINT:

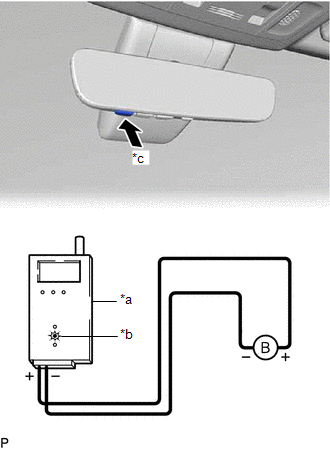

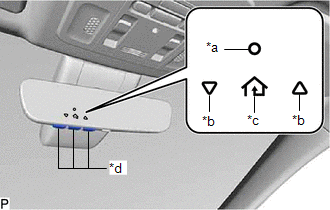

(c) Press a garage door opener ("HomeLink") switch. Check if the red LED of the "HomeLink" tester illuminates. HINT: If the red LED does not illuminate, replace the inner rear view mirror assembly (garage door opener). Click here (d) When the inspection is complete, register the customer transmitter code(s) again. HINT:
|
