Toyota Avalon Service & Repair Manual: Components

COMPONENTS

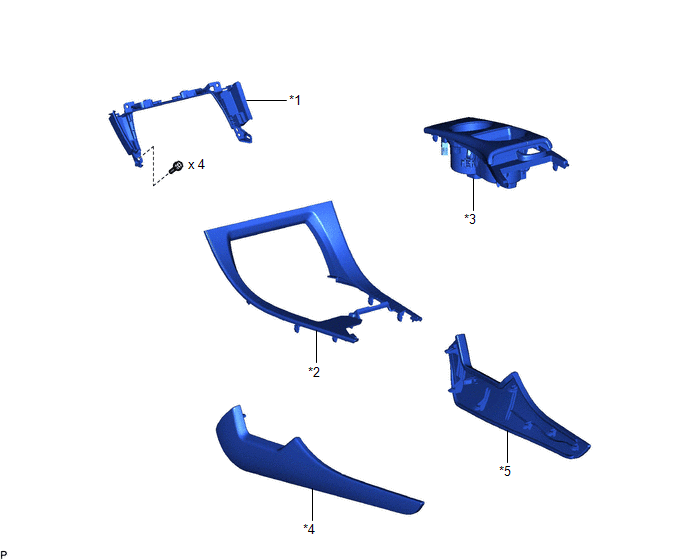

ILLUSTRATION

*1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

CONSOLE BOX POCKET SUB-ASSEMBLY

*3

FRONT CONSOLE UPPER PANEL GARNISH

*4

LOWER INSTRUMENT PANEL FINISH PANEL LH

*5

LOWER INSTRUMENT PANEL FINISH PANEL RH

-

-

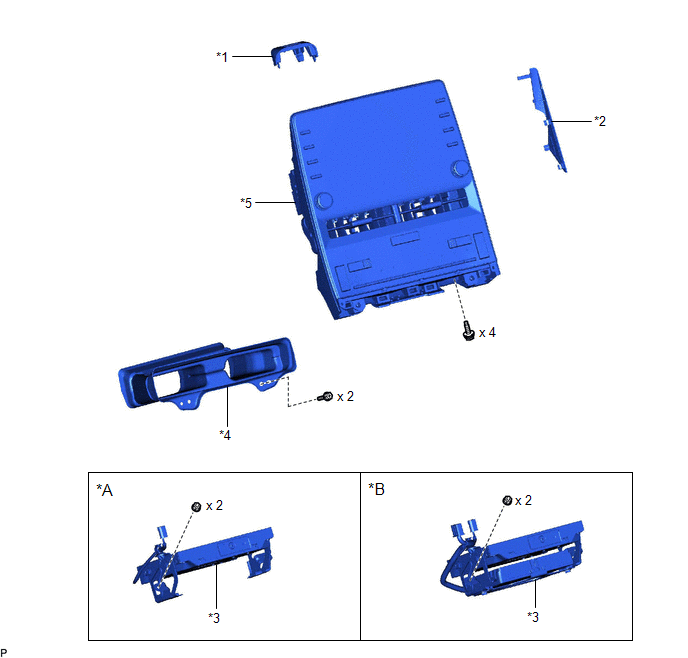

ILLUSTRATION

*A

w/o Manual (SOS) Switch

*B

w/ Manual (SOS) Switch

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*3

NAVIGATION ECU WITH BRACKET

*4

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*5

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

-

-

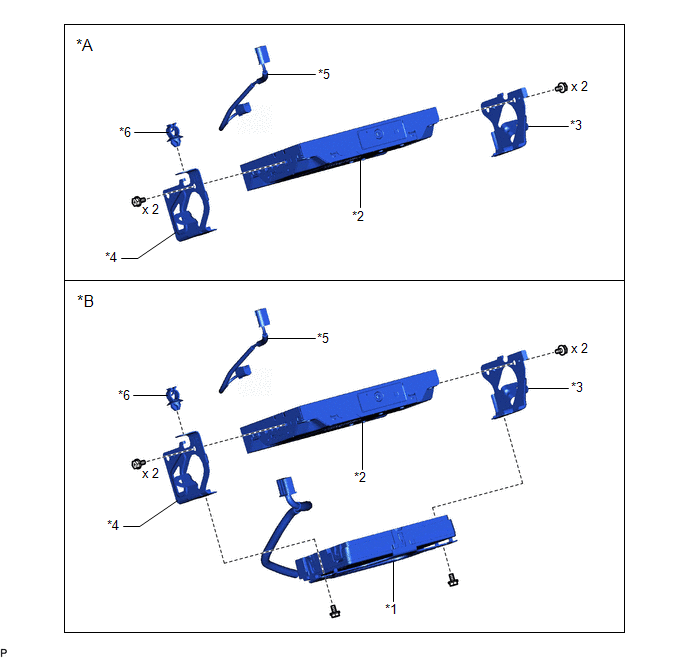

ILLUSTRATION

*A

w/o Manual (SOS) Switch

*B

w/ Manual (SOS) Switch

*1

DCM (TELEMATICS TRANSCEIVER) WITH ANTENNA CORD

*2

NAVIGATION ECU

*3

NO. 1 TELEPHONE BRACKET

*4

NO. 2 TELEPHONE BRACKET

*5

NO. 5 ANTENNA CORD SUB-ASSEMBLY

*6

WIRING HARNESS CLAMP

    Navigation Ecu

    Installation
