DESCRIPTION

The stereo component amplifier assembly receives a vehicle speed signal from the combination meter assembly to control the ASL function.

HINT:

  • A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter assembly. The signal is changed to a pulse signal at the transistor in the combination meter assembly. Each ECU controls its respective systems based on this pulse signal.
  • If a short occurs in any of the ECUs or in the wire harness connected to an ECU, all systems in the following diagram will not operate normally.

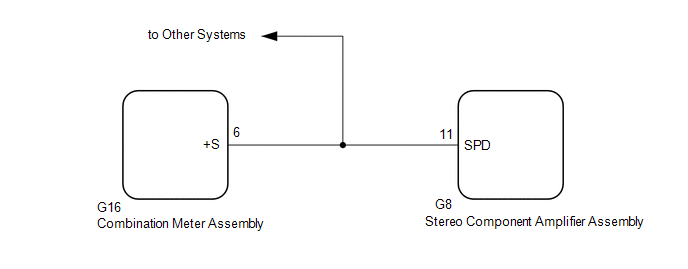

WIRING DIAGRAM

PROCEDURE

1.

INSPECT COMBINATION METER ASSEMBLY (OUTPUT WAVEFORM)

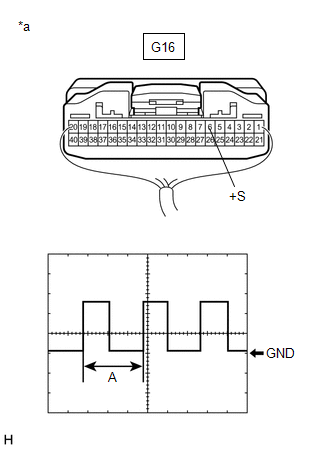

(a) Check the output waveform.

(1) Remove the combination meter assembly with the connector(s) still connected.

(2) Connect an oscilloscope to terminal G16-6 (+S) and body ground.

(3) Turn the engine switch on (IG).

(4) Turn a wheel slowly.

(5) Check the signal waveform according to the condition(s) in the table below.

Item

Condition

Measurement terminal

G16-6 (+S) - Body ground

Tool setting

5 V/DIV., 20 ms./DIV.

Vehicle condition

Wheel being rotated

OK:

The waveform is similar to that shown in the illustration.

HINT:

When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

*a

Component with harness connected

(Combination Meter Assembly)

NG

GO TO METER / GAUGE SYSTEM

OK

2.

INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY (INPUT WAVEFORM)

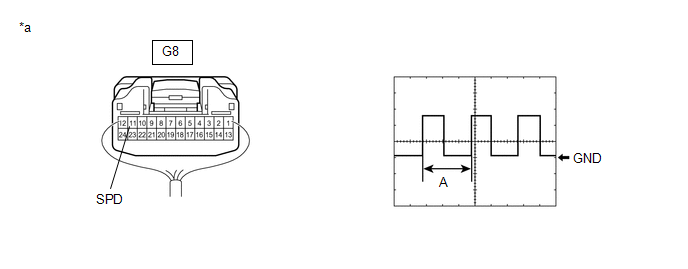

(a) Check the input waveform.

*a

Component with harness connected

(Stereo Component Amplifier Assembly)

-

-

(1) Remove the stereo component amplifier assembly with the connector(s) still connected.

(2) Connect an oscilloscope to terminal G8-11 (SPD) and body ground.

(3) Turn the engine switch on (IG).

(4) Turn a wheel slowly.

(5) Check the signal waveform according to the condition(s) in the table below.

Item

Condition

Measurement terminal

G8-11 (SPD) - Body ground

Tool setting

5 V/DIV., 20 ms./DIV.

Vehicle condition

Wheel being rotated

OK:

The waveform is similar to that shown in the illustration.

HINT:

When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
