Toyota Avalon Service & Repair Manual: Parts Location

PARTS LOCATION

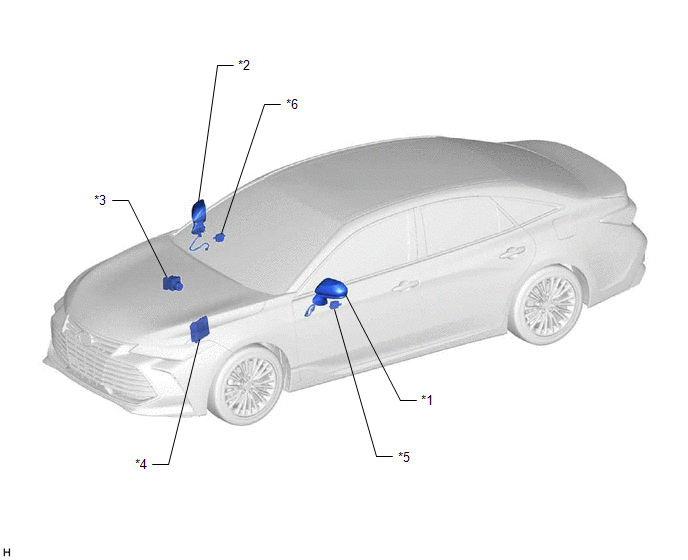

ILLUSTRATION

*1

OUTER REAR VIEW MIRROR ASSEMBLY LH

*2

OUTER REAR VIEW MIRROR ASSEMBLY RH

*3

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*4

ECM

*5

OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Memory)

*6

OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Memory)

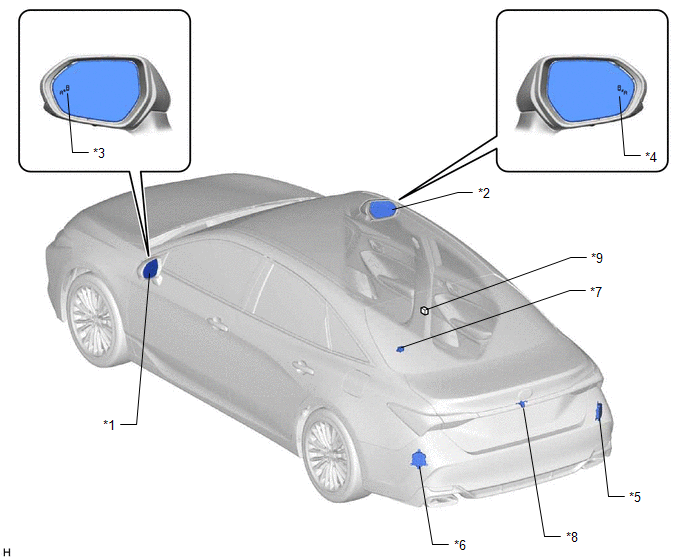

ILLUSTRATION

*1

OUTER MIRROR LH

*2

OUTER MIRROR RH

*3

OUTER REAR VIEW MIRROR INDICATOR LH

*4

OUTER REAR VIEW MIRROR INDICATOR RH

*5

BLIND SPOT MONITOR SENSOR RH (MASTER)

*6

BLIND SPOT MONITOR SENSOR LH (SLAVE)

*7

RCTA BUZZER (BLIND SPOT MONITOR BUZZER)

*8

TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

*9

NO. 26 JUNCTION CONNECTOR

-

-

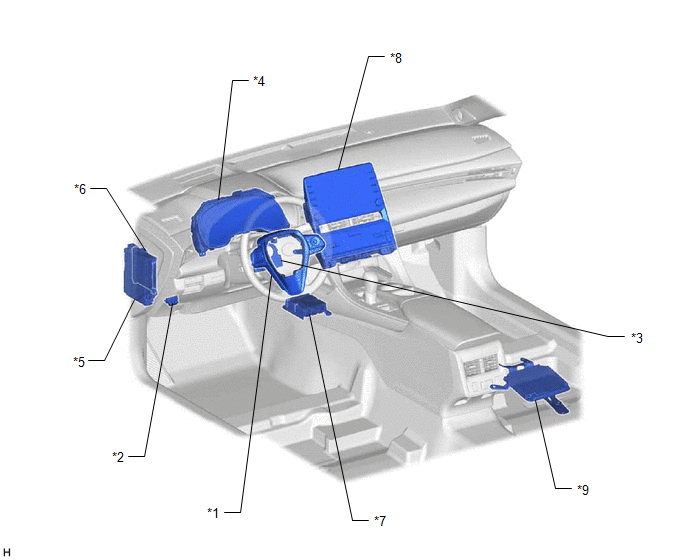

ILLUSTRATION

*1

STEERING PAD SWITCH ASSEMBLY

*2

DLC3

*3

STEERING SENSOR

*4

COMBINATION METER ASSEMBLY

- MULTI-INFORMATION DISPLAY

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 4 FUSE

- IG1-NO. 1 RELAY

*6

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*7

AIRBAG SENSOR ASSEMBLY

- YAW RATE AND ACCELERATION SENSOR

*8

RADIO AND DISPLAY RECEIVER ASSEMBLY

- MULTI-DISPLAY

*9

PARKING ASSIST ECU (w/ Panoramic View Monitor System)

-

-
