Toyota Avalon Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH

Click here

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH

Click here

3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click here

4. REMOVE CONSOLE BOX POCKET SUB-ASSEMBLY

Click here

5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

Click here

7. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

Click here

8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

Click here

9. REMOVE NO. 1 CLEARANCE WARNING BUZZER

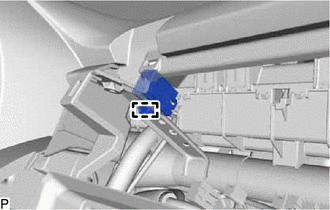

(a) Disengage the clamp.

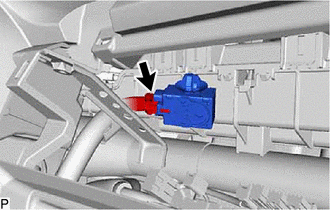

(b) Disconnect the connector to remove the No. 1 clearance warning buzzer.

    Installation

    Clearance Warning Buzzer(for Rear)
