Toyota Avalon Service & Repair Manual: System Diagram

SYSTEM DIAGRAM

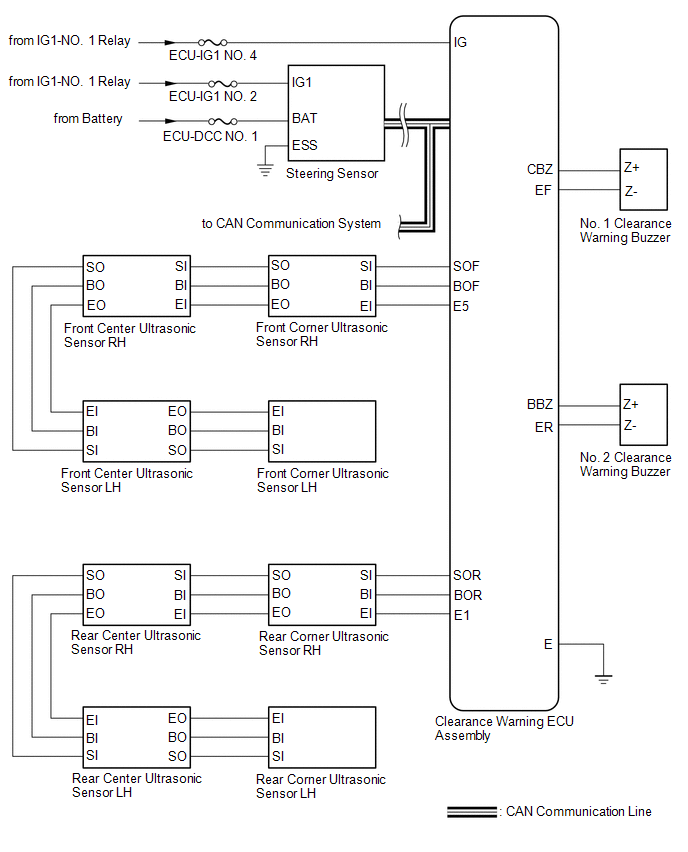

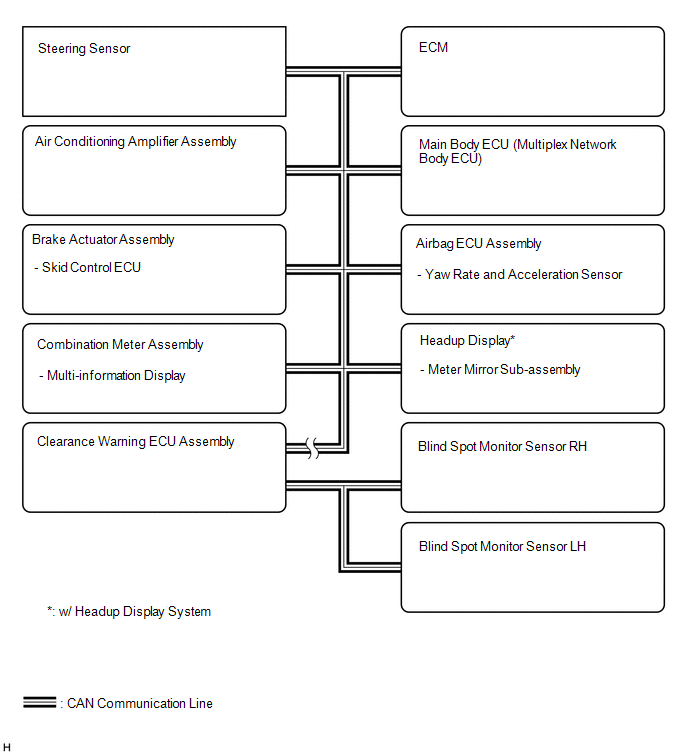

Communication Table

Sender

Receiver

Signal

Line

Clearance Warning ECU Assembly

Combination Meter Assembly

  • Sonar information signal
  • Control status signal

CAN Communication Line

ECM

Clearance Warning ECU Assembly

Engine speed signal

CAN Communication Line

Airbag ECU Assembly

Clearance Warning ECU Assembly

Yaw rate and acceleration sensor signal

CAN Communication Line

Combination Meter Assembly

Clearance Warning ECU Assembly

Vehicle speed signal

CAN Communication Line

Steering Sensor

Clearance Warning ECU Assembly

Steering angle signal

CAN Communication Line

Skid Control ECU

Clearance Warning ECU Assembly

  • Vehicle speed signal
  • Control status signal

CAN Communication Line

Air Conditioning Amplifier Assembly

Clearance Warning ECU Assembly

Ambient temperature signal

CAN Communication Line

Main Body ECU

(Multiplex Network Body ECU)

Clearance Warning ECU Assembly

Vehicle information signal

CAN Communication Line

Clearance Warning ECU Assembly

Meter Mirror Sub-assembly*

Control status signal

CAN Communication Line

Blind Spot Monitor Sensor (LH/RH)

Clearance Warning ECU Assembly

Blind spot monitor system status signals

CAN Communication Line
