COMPONENTS

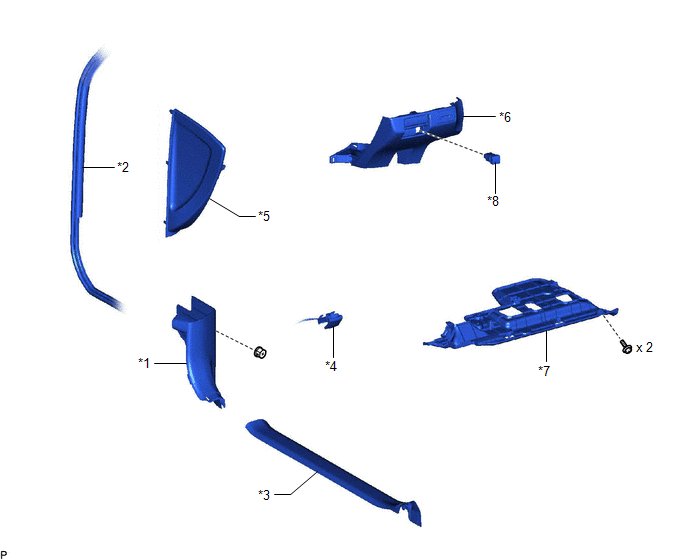

ILLUSTRATION

*1

COWL SIDE TRIM SUB-ASSEMBLY LH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*3

FRONT DOOR SCUFF PLATE LH

*4

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

*5

INSTRUMENT SIDE PANEL LH

*6

NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

*7

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*8

PANORAMIC VIEW MONITOR SWITCH
    Panoramic View Monitor Switch

    Inspection
