Toyota Avalon Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click here

3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

4. REMOVE INSTRUMENT SIDE PANEL LH

Click here

5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

7. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

Click here

8. REMOVE PANORAMIC VIEW MONITOR SWITCH

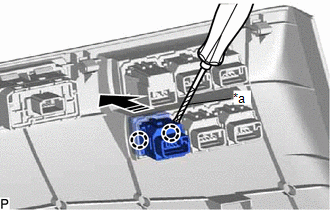

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the panoramic view monitor switch as shown in the illustration.

*a

Protective Tape

Remove in this Direction

    Installation
